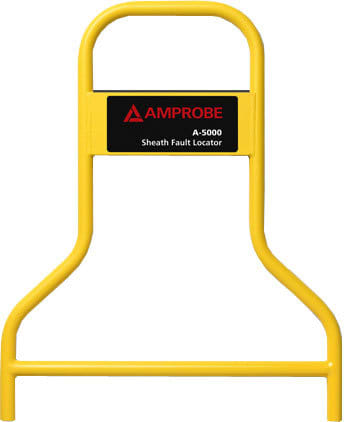

Amprobe A-5000 - A-Frame Ground Fault Locator

Name: Amprobe A-5000 - A-Frame Ground Fault Locator
Brand: Amprobe
SKU: AmprobeA-5000
Price: 870.07 USD
Availability: InStock

0 reviews | UPC: 0 95969 49270 6 | Model: Amprobe A-5000

Compare

A-FRAME FOR AT-5000

Fault level measurement at the transmitter
Simultaneous fault finding and line tracing
LCD bar graph representing the A-Frame signal strength for judging the proximity to faults, comparing multiple faults, and detecting pinholes and “trees” in a power cable
Detection of low and high resistance faults
Automatic battery checking and low battery warning
Non-polarized A-Frame
Single-handed operation. No need to carry an R-5000 receiver as well as an A-frame during fault locating
Active SFL ohmmeter and voltmeter in the Transmitter

View Product Details

List Price: $1,099.95

In Stock:

View Payment Options

Recommended for you

Amprobe A-5000 - A-Frame Ground Fault Locator

Fault level measurement at the transmitter
Simultaneous fault finding and line tracing
Detection of low and high resistance faults
Automatic battery checking and low battery warning
Non-polarized A-Frame

The Amprobe AT-5000 Utility Locator with A-5000 Sheath Fault Locating (SFL) option is designed to detect and pinpoint sheath and other conductor faults that are in direct contact with the earth.

Frequency	4.8 Hz Crystal Controlled
Input sensitivity	5 MV
Sensitivity control	Automatic
Active/reference signal sensitivity	Logarithmic: 0 - 120 Linear: 0 - 999
Battery	9 V NEDA 1604 or equivalent
Battery life	100 hr. continuous use
Battery test	Automatic at power ON for 3 sec
Weight	4.4 lb (2.0 kg)
Dimensions (H x W x D)	32 x 22 x 1 in (81 x 56 x 2.5 cm)
Operational temperature	-4 °F - 120 °F (-20 °C - 50 °C)
