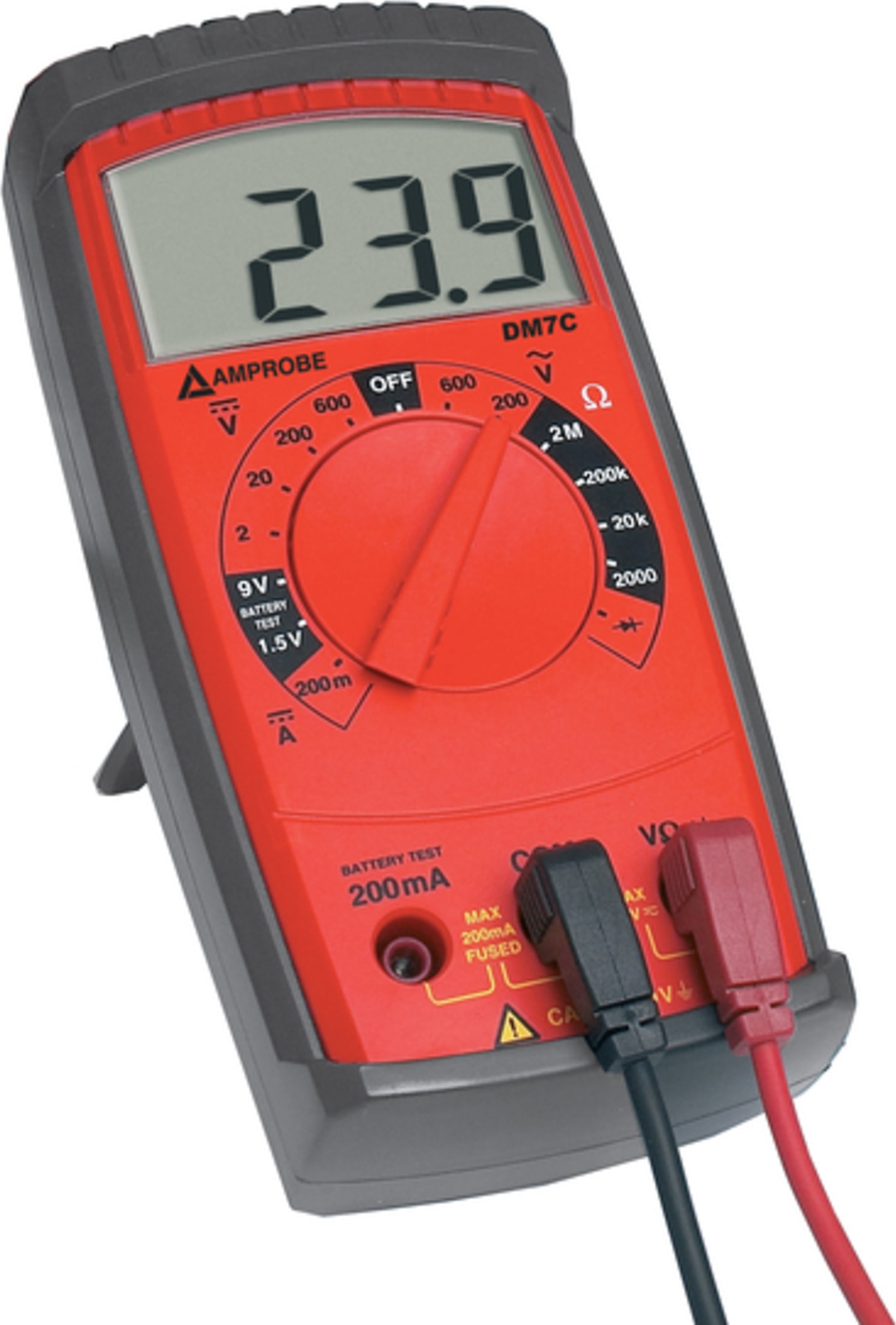

Amprobe DM7C Compact Digital Multimeter

Name: Amprobe DM7C Compact Digital Multimeter
Brand: Amprobe
SKU: AmprobeDM7C
Price: 36.85 USD
Availability: InStock

0 reviews | UPC: 095969365345 | Model: Amprobe DM7C

Compare

MULTIMETER W/BATTERY TEST

View Product Details

List Price: $49.95

In Stock:

Recommended for you

Choose a Category

(13)

In Stock!

Add to Cart

(4)

In Stock!

Add to Cart

DM7C Digital Multimeter Specification
	Range	Best Accuracy
Voltage
DC Voltage	2 V, 20 V, 200 V, 600 V ± (1.2 % rdg + 3 dgts)
Resolution	1 mV in 2 V range/td>
Input Impedance	1 MΩ
AC Voltage (40 to 1000 Hz)	200 V, 600 V	± (1.5 % rdg + 3 dgts)
Resolution	100 mV in 200 V range
Input Impedance	460 kΩ
Current
DC Current	200 mA	± (2.5 % rdg + 3 dgts)
Resolution	100 µA
Resistance
	2 kW, 20 kΩ, 200 kΩ, 2 MΩ	± (1.5 % rdg + 3 dgts)
Resolution	1 Ω in 1000 Ω range
Open Circuit Voltage	3.2 V DC
Diode Test		± (1.0 % rdg + 2 dgts)
Test Current	< 1 mA nominal
Accuracy	15 %
Open Circuit Voltage	3.2 V DC nominal
Display	Forward junction voltage, 1 mV resolution
Battery Test
Battery Voltages	1.5 V, 9 V
Accuracy		± (2.5 % rdg + 3 dgts)
Overload Protection
Volts	600 V AC RMS/1000 V DC (30 seconds)
Accuracy	200 mA/600 V fast acting glass fuse
General Specifications
Display	3-1/2 digit LCD, 1999 counts
Display Update Rate	2 per sec. nom.
Range Selection	Manual
Power Supply	9 V battery, NEDA 1604, JIS006P, IEC 6F22
Battery Life	Alkaline 500 hours, approx.
Altitude	2000 m
Fuses	200 mA / 600 V
Operating Temperature	0 °C to + 50 °C, 0 to 80 % R.H. non-condensing
Storage Temperature	- 10 °C to + 60 °C, 0 to 80 % R.H. non-condensing, batteries removed
Dimensions (H x W x D)	17 cm x 8.5 cm x 5 cm (6.69 in x 3.35 in x 1.97 in)
Weight	410 grams (incl. battery and holster)
Warranty	One-year

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	No
Measures DC A	Yes
True RMS	No
Maximum Voltage AC	600 V
Resolution AC Volts	100 mV
Maximum Voltage DC	600 V
Resolution DC Volts	1 mV
Maximum Current DC	200 mA (0.2 A)
Minimum Current DC	100 uA (0.1 mA)
Resolution DC Current	100 uA (0.1 mA)
Basic Accuracy V DC	± 1.2% Rdg + 3D
# Digit Display	3.5
Counts	1999 .
Backlight	No
Manual/Autoranging	Manual
Decibels	No
Resistance	Yes
Frequency	No
Capacitance	No
Temperature	No
Diode Testing	Yes
CAT Rating	II
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	No
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	Special Ranges to Test Batteries, 6 Functions / 14 Ranges
Warranty	1 YEARS
Warranty Details	1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling
Additional Info/Comments	Vinyl Case
Safety Approval	CSA
Product Weight	410 GRAMS (0.9039 LBS)
Product Height	5 CM (1.97 IN)
Product Length	17 CM (6.69 IN)
Product Width	8.5 CM (3.35 IN)
Data Logging	No
Power Supply Voltage	Battery Powered
Shipping Height	2.50 IN Shipping Height Value not available
Shipping Length	7.00 IN Shipping Length Value not available
Shipping Width	10.25 IN Shipping Width Value not available
