Amprobe AT-7020 Advanced Wire Tracer Kit

Name: Amprobe AT-7020 Advanced Wire Tracer Kit
Brand: Amprobe
SKU: AmprobeAT-7020
Price: 1106.59 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | UPC: 095969664745 | Model: Amprobe AT-7020

Images (7) | Videos (1)

Compare

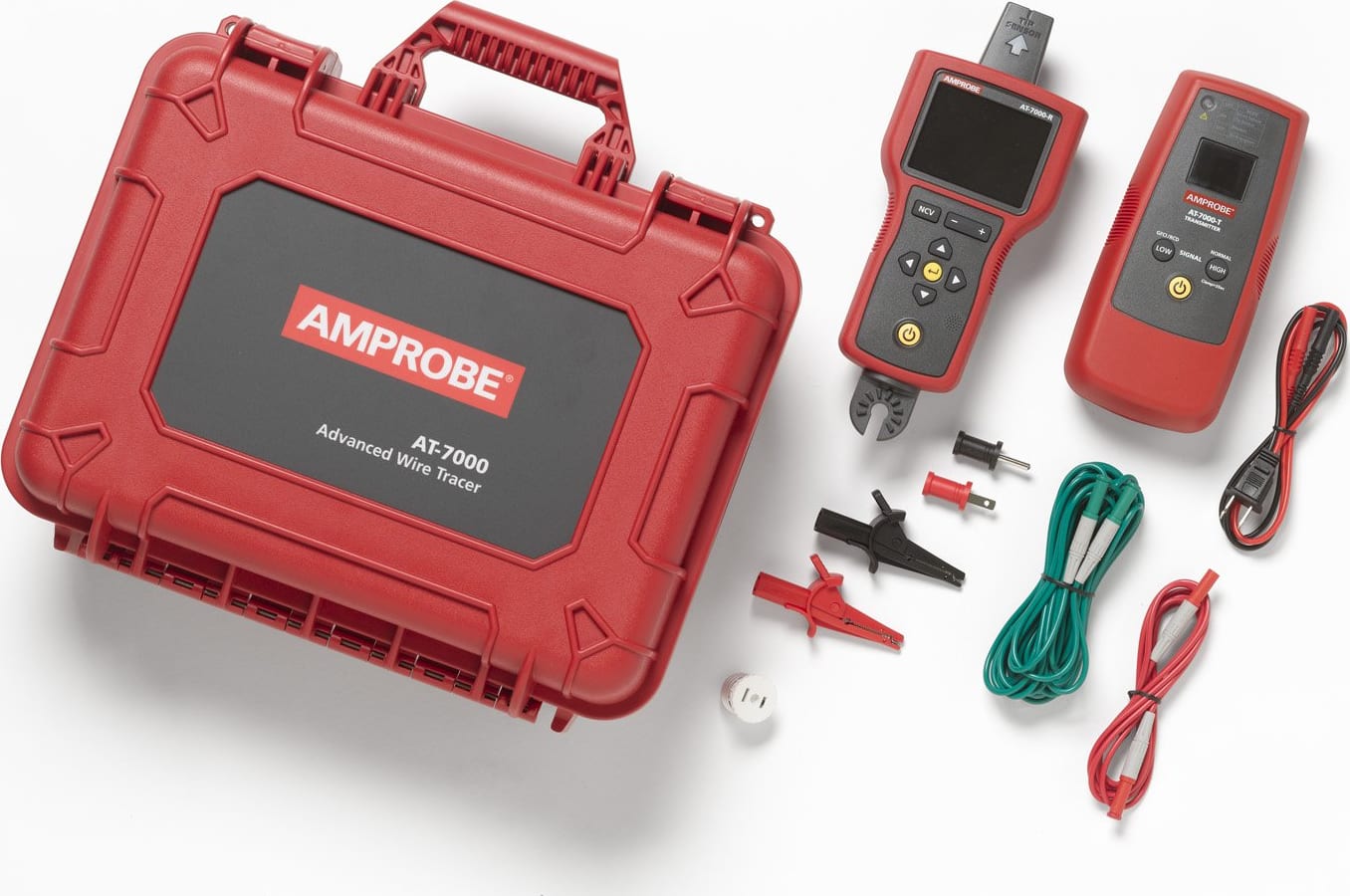

ADVANCED WIRE TRACER W/RECEIVER, TRANSMITTER, HARD CARRYING CASE

Traces Energized and De-Energized Wires
Locates Energized and De-Energized Breakers
Pinpoints Shorts and Opens
Traces AC/DC Circuits 0-600 V
Three Power Modes
- ”High” power mode for normal circuits
- ”Low” power mode for precision tracing in difficult areas
- ”Clamp” power mode provides a boosted induction signal via the signal clamp
Two Frequency Modes for Optimal Tracing
- 6 kHz for energized circuits
- 33 kHz for de-energized circuits

View Product Details

List Price: $1,499.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Amprobe AT-7020

Amprobe HS-1 MAGNETIC HANGER

Catalog: 4594135

(1)

In Stock!

Add to Cart

Amprobe AT-7020 Advanced Wire Tracer Kit

AT-7000 Advanced Wire Tracing Reinvented
Get accurate results in minutes with new features and technologies that simplify wire tracing and breaker identification. The Receiver’s patented Smart Sensor, ™ with its innovative new antenna design and advanced signal processor, clearly displays the location and orientation of energized wires in walls, floors and ceilings on the large color TFT LCD screen. The powerful Transmitter utilizes two optimal frequencies for both energized and de-energized wire and breaker tracing, delivering consistently accurate results for novice users and experts alike. The new Scan and Locate feature clearly identifies the one correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools.

Tip Sensor
The shape of the tip sensor allows tracing in hard to reach areas, corners & tight spaces, as well as precise circuit breaker and fuse identification. By utilizing two different types of antennas (inductive coil and capacitive), the tip sensor enables optimal tracing results of both energized and de-energized circuits, which are automatically selected by operating mode.

Smart Sensor
Quickly and easily determine the precise direction and location of energized wires in walls, floors and ceilings with the patented Smart Sensor™. Combined with a fast signal processor that measures small changes in the detected signal multiple times per second, this new technology provides unmatched precision and ease of use for tracing energized wires.

AT-7000-T Transmitter
Featuring three power modes “high”, “low”, and “clamp” and two output frequencies (6kHz and 33 kHz), the AT-7000-T incorporates the best technologies available for optimal wire tracing and breaker identification on both energized and de-energized circuits. The AT-7000-T automatically sets the frequency based on detected voltage, and prompts the user to set the power level based on their application. The color TFT LCD screen displays the detected voltage, frequency output and power mode.

Signal Clamp
When there’s no access to bare conductors, use the SC-7000 signal clamp to induce a signal into either energized or de-energized circuits for wire tracing and load locating. The AT-7000-T transmitter’s “clamp” mode provides a boosted 6 kHz signal through the clamp to further improve accuracy and performance.

AT-7000 Features and Functions
Trace Wires Inside Conduit
Trace energized and de-energized wires enclosed in metal conduit by removing the junction box cover and using the AT-7000-R Receiver’s Tip Sensor to identify the specific wire carrying the transmitted signal generated by the AT-7000-T Transmitter. Wires in non-metal conduit can be traced directly without opening the junction box and using the AT-7000-R Receiver’s Smart Sensor ™ .
Trace energized wires without access to exposed conductors
The SC-7000 signal clamp accessory can be used with the AT-7000-T Transmitter to induce a signal into energized and de-energized wires when there is no access to bare conductors. Simply clamp around the desired wire to induce the signal, then begin tracing.
Use the Tip Sensor to trace wires in hard to reach areas
When used with the AT-7000-T Transmitter, the Tip Sensor pinpoints the location of energized and de-energized wires in tight, hard to reach spaces. It easily and accurately traces the targeted energized and de-energized wires in junction boxes, corners, walls, floors and ceilings to a depth of up to 20 feet.
Non-contact voltage (NCV) detection
The NCV feature extends functionality of the AT-7000-R Receiver by detecting energized wires from 90 to 600 V and 40 to 400 Hz without the use of the AT-7000-T Transmitter. Its adjustable sensitivity fits a range of applications, from detecting presence of voltage (higher sensitivity) to precisely pinpointing a hot wire in a bundle (lower sensitivity).
Hot Stick attachment
The optional TIC 410A Hot Stick accessory enables easier tracing of wires in high ceilings, walls and along floors.

Specifications	AT-7000-R Receiver	AT-7000-T Transmitter	SC-7000 Signal Clamp
TFT LCD Color Display size	3.5 in (8.89 cm)	1.77 in (4.5 cm)	-
TFT LCD Color Display Dimensions	2.76 x 2.07 in (7.01 x 5.26 cm)	1.1 x 1.38 in (2.79 x 3.51 cm)	-
TFT LCD Color Display Resolution	320px x 240px	128px x 160px	-
TFT LCD Color Display type	TFT LCD	RGB x TFT	-
TFT LCD Color Display	•	•	-
Backlight	•	•	-
mDDR	64 MB	64 MB	-
FLASH memory	128 MB	128 MB	-
Audio	95 dB	-	-
Operating Temperature range	0 to 120°F (-17.77 °C to 49°C)	0 to 120°F (-17.77°C to 49°C)	0 to 120°F (-17.77°C to 49°C)
Storage Temperature	-40 to 150°F (-40 to 65.5°C)	-40 to 150°F (-40 to 65.5°C)	-40 to 150°F (-40 to 65.5°C)
Operating Humidity	95% R.H max
Operating altitude	2000 m
Measurement Category	CAT IV 600 V
Transient protection	–	8.00 kV (1.2/50 uS surge)	–
Pollution degree	2
Drop test	3.28 ft (1 m)
Power Supply	4xAA Alkaline battery	90-270 V AC/DC, 40-400 Hz AT-7030: BR-7000-T: LI-ION, 7.2 V, 2.2 Ah AT-7020: 6x AA Alkaline Battery	–
Power consumption	4xAA battery: 2W	AT-7030: BR-7000-T battery: 2W AT-7020: 6xAA battery:2WAh AC line voltage (Charging state): 10W AC line voltage: 3W	–
Leakage current (non-rechargeable)	1.1 to 2.6 uA	6 to 14 uA	–
Leakage current (rechargeable)	–	1.2 to 4 uA	–
IP Rating	IP52	IP40	–
Sampling rate	6.25 kHz Signal: 62.5 kSPS 32.768 kHz: 256 kSPS NCV: 62.5 kSPS	62.5 kSPS	–
Signal Response	Audible beep, bargraph display, numeric display	Numeric display	–
LED Indicator	Green Flashing: Signal Detection	Red: Energized OFF: De-Energized Orange: Over voltage	–
Operating Frequency	Energized: 6.25 kHz De-Energized: 32.768 kHz	Voltage measurement: 40-400 Hz Energized: 6.25 kHz De-Energized: 32.768 kHz	Energized: 6.25 kHz De-Energized: 32.768 kHz
Acoustic Indication	1 kHz Piezo Buzzer	-	Energized: 6.25 kHz De-Energized: 32.768 kHz
Smart mode	Pinpointing: Around 1.97 in (5 cm) radius Direction indication: Up to 5 ft (152.4 cm)	-	-
TIP Sensor: Energized	Pinpointing: Around 1.97 in (5 cm) Direction: Up to 22 ft (670.56 cm)	-	-
TIP Sensor: De-Energized	Pinpointing: Around 1.97 in (5 cm) Direction: Up to 22 ft (670.56 cm)	-	-
NCV	Detection: Up to 4 ft (121.92 cm)	-	-
Current Output (Low) Energized	-	53 mA rms	-
Current Output (High) Energized	-	92 mA rms	-
Current output (Low) with BR-7000-T Energized	-	53 mA rms	-
Current output (High) with BR-7000-T Energized	-	120 mA rms	-
Voltage output (Low) De-Energized	-	60 Vp-p	-
Voltage output (High) De-Energized	-	120 Vp-p	-
Voltage output (Clamp) De-Energized	-	180 Vp-p	-
Jaw Opening	-	-	2 in (5.08 cm)
Fuse	-	3.15A, 600V MAX, SLOW 5X20MM	2 in (5.08 cm)
Dimensions	10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.483 cm)	8.5 x 4 x 2.2 in (21.59 x 10.16 x 5.59 cm)	8.2 x 3.2 x 1.68 in (20.83 x 8.13 x 4.27 cm)
Weight	1.20 lb (0.544 kg)	1.30 lbs (0.593 kg)	0.648 lb (0.294 kg)

Tech Specs

Wire Tracers / Circuit Breaker Tracers/Wire Tracers / Circuit Breaker Tracers Template
Energized Circuits	Yes
De-energized Circuits	Yes
Clamp-on Attachment	Yes
Test Equipment General Attributes
Storage	Internal Memory
Product Weight	8.95 LBS
Product Height	7 IN
Product Length	13 IN
Product Width	16 IN
Shipping Weight	8.95 LBS
Data Logging	Yes
Battery Type	Li-ion
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	8.75 IN
Shipping Length	17.50 IN
Shipping Width	14.50 IN
