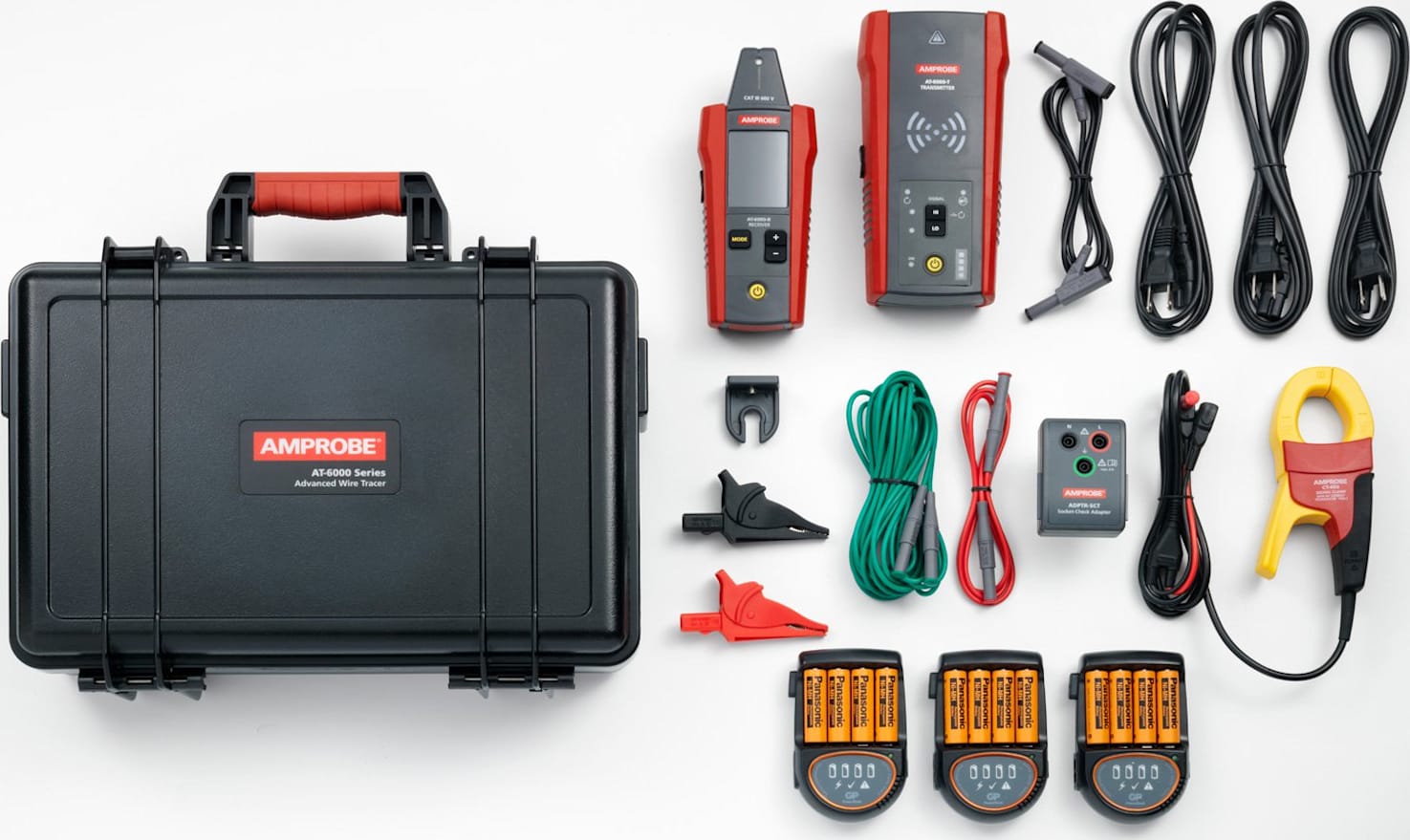

Amprobe AT-6030 Advanced Wire Tracer Kit

Name: Amprobe AT-6030 Advanced Wire Tracer Kit
Brand: Amprobe
SKU: AmprobeAT-6030
Price: 1467.18 USD
Availability: InStock
Rating: 5.00 (3 reviews)

5 (3 Reviews) | UPC: 095969842730 | Model: Amprobe AT-6030

Compare

ADVANCED WIRE TRACER

Combines a receiver and powerful transmitter to locate energized and de-energized wires, breakers, and fuses
Detects the signal in wires
Works on Energized and De-energized circuits up to 600 V AC/DC
Features high signal, low signal, and loop modes

View Product Details

List Price: $1,900.99

In Stock:

View Payment Options

Recommended for you

Amprobe AT-6030 Advanced Wire Tracer Kit

Combines a receiver and powerful transmitter to locate energized and de-energized wires, breakers, and fuses
Detects the signal in wires
Works on Energized and De-energized circuits up to 600 V AC/DC
Features high signal, low signal, and loop modes

The AT-6000 series, available in two different kits, combines a receiver and powerful transmitter to locate energized and de-energized wires, breakers, and fuses. Whether you’re a novice or an expert, the Amprobe advanced wire tracer kit will help you get the job done fast.

The AT-6000-R Receiver detects the signal in wires and cables using two methods: active tracing method (with the Transmitter) and passive tracing method (without the Transmitter). In hard-to- reach areas, the Receiver’s Tip Sensor can be used to trace wires in corners, tight spaces and junction boxes.

The AT-6000-T Transmitter works on Energized and De-energized circuits up to 600 V AC/DC in Category I through Category III electrical environments and features high signal, low signal, and loop modes. The Breaker Identification feature eliminates confusion of multiple false positives, common with older technology tracing tools, by identifiying the one correct breaker or fuse with the highest recorded signal.

The CT-400 Signal Clamp (optional for AT-6020, included with AT-6030) is used for applications where is no access to the bare conductors by enabling the AT-6000-T Transmitter to induce a signal into a wire through the insulation.

Main Applications

Trace Energized and De-energized wires
Identify breakers and fuses
Non-contact voltage mode and passive tracing

Special Applications

GFCI-protected circuit wire tracing
Find breaks, openings, and shorts
Trace wires in metal conduit
Trace non-metallic pipes and conduits
Trace shielded wires
Trace underground wires
Trace low voltage wires and data cables

Locate a specific wire

Sort bundled wires
Map circuits using test leads connection
Trace breakers on system with light dimmers
CT-400 signal clamp (AT-6030 kit) to improve accuracy and performance when there is no access to bare conductors

Amprobe AT-6000 Series Specifications
	AT-6000-R Receiver	AT-6000-T Transmitter	CT-400 Signal Clamp
Display size	LCD 2.5 in (6.35 cm)	LEDs	-
Display dimensions (W x H)	1.45 x 1.93 in (36.72 x 48.96 mm)	-	-
Display resolution	240(RGB) x 320 pixels	-	-
Display type	TFT-LCD (262 K)	LEDs	-
Display color	True, 16bit/color	Operating mode LEDs: red Battery status LEDs: green, yellow, red	-
Booting time	< 3 sec	< 2 sec	-
Backlight	•	-	-
Operating temperature	45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C)		95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C)
Storage temperature and humidity	-4 °F to 158 °F (-20 °C to 70 °C), <95% RH
Operating altitude	0 to 6561 ft (2000 m)
Transient protection	-	6.00 kV (1.2/50μS surge)	-
Pollution degree	2
IP rating	IP 52	IP 40
Drop test	3.28 ft (1 m)
Power supply	4 x AA (alkaline or NiMH rechargeable)	8 x AA (alkaline or NiMH rechargeable)	-
Power consumption (typical)	110mA	Hi/Lo mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA	-
Battery life	Approx. 16h	Hi/Lo mode: approx. 25h Loop mode: approx. 18h	-
Low Battery Indicator	•	•	-
Fuse	-	1.6 A, 700 V, fast-acting, Ø 6x32mm	-
Maximum conductor size	-	-	1.26 in (32 mm)
Dimensions (L x W x H)	Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm)	Approx. 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm)	Approx. 5.9 x 2.75 x 1.18 in (150 x 70 x 30 mm)
Weight	Approx. 1.25 lb (0.57 kg)	Approx. 6.18 lb (2.8 kg)	Approx. 0.25 lb (0.114 kg)

Tech Specs

Wire Tracers / Circuit Breaker Tracers/Wire Tracers / Circuit Breaker Tracers Template
Tests	Shorts
Energized Circuits	Yes
De-energized Circuits	Yes
Maximum Circuit Distance	20 Ft
Underground/Hidden Cable Capability	Yes
Type of Alarm	Audible, Visual
Tone Generator	Yes
Clamp-on Attachment	Yes
Identifies Breakers	Yes
Distance to Wire	No
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CSA, UL
Product Weight	7.68 LBS
Product Height	16.00 IN
Product Length	12.00 IN
Product Width	5.00 IN
Data Logging	No
HTS/Schedule B Number	9030890100
ECCN Number	3A992
Battery Type	AA
Country of Origin	China
