AT6000 Series Specifications |
Features |

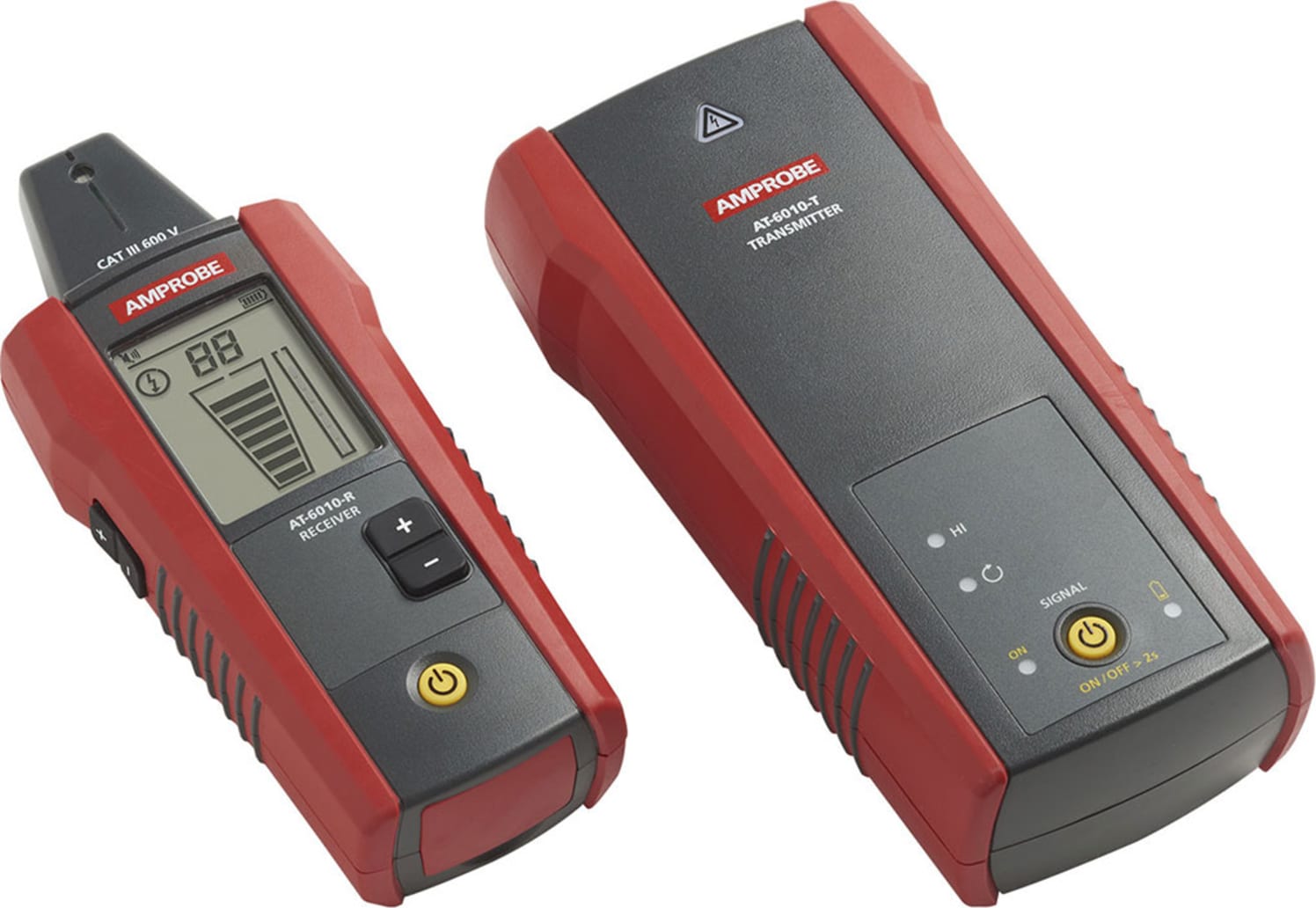

AT-6010-R Receiver |
AT-6010-T Transmitter |
CT-400 Signal Clamp |
Measurement category |
CAT III 600 V |
CAT III 600 V |
CAT IV 600 V, CAT III 1000 V |
Operating voltage |
0 to 600 V AC/DC |
0 to 600 V AC/DC |
0 to 1000 V AC |
Operating frequency |
Energized: 6.25 kHz, De-Energized: 32.768 kHz |
Energized: 6.25 kHz, De-Energized: 32.768 kHz |
AC current measurement: 45 Hz to 400 Hz |
Hazardous voltage detection |
– |
> 30 V AC/DC |
- |
Signal indications |
Numeric, bar graph display and audible beep |
LEDs |
- |
Response time |
Tip Sensor (Energized/De-energized): 500 ms
Battery voltage monitoring: 5 sec |
Line voltage monitoring: 1 sec
Battery voltage monitoring: 5 sec |
Instantaneous |
Current output of signal (typical) |
– |
Energized circuit: HI mode: 60 mA RMS
De-energized circuit: HI mode: 130 mA RMS
Loop mode: 160 mA RMS |
1 mA/A for AC current measurement with multimeter |
Signal voltage output (nominal) |
- |
De-energized circuit: HIGH: 33V RMS, 140 Vp-p
With CT-400: loop mode: 31 V RMS, 120 Vp-p |
De-energized circuit: 2.4 V RMS, 24 Vp-p |
Range detection (open air |
Tip sensor (Energized):
Max distance via air: up to 20 ft (6.1 m)
Pinpointing: approx. 1.97 in (5 cm)
Tip sensor (De-energized):
Max distance via air: up to 14.7 ft (4.5 m)
Pinpointing: approx. 1.97 in (5 cm |
- |
- |
General Specifications |
Display size |
LCD 2.5 in (6.35 cm) |
- |
- |
Display dimensions (W x H) |
1.45 x 1.93 in (36.72 x 48.96 mm) |
- |
- |
Display type |
Segment LCD |
LEDs |
- |
Display color |
Black and white |
Operating mode LEDs: red, Battery status LEDs: red |
- |
Booting time |
< 3 sec |
< 2 sec |
- |
Backlight |
• |
- |
- |
Operating temperature |
4 °F to 122 °F (-20 °C to 50 °C) |
32 °F to 122 °F (0 °C to 50 °C) |
Operating humidity |
45%: -4 °F to <50 °F (-20 °C to <10 °C), 95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C), 45%: 104 °F to 122 °F (40 °C to 50 °C) |
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to <122 °F (40 °C to <50 °C) |
Storage temperature and humidity |
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH |
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH |
Operating altitude |
0 to 6561 ft (2000 m) |
0 to 6561 ft (2000 m) |
Transient protection |
– |
6.00 kV (1.2/50μS surge) |
– |
Pollution degree |
2 |
2 |
2 |
IP rating |
IP 52 |
IP 40 |
IP 40 |
Drop test |
3.28 ft (1 m) |
3.28 ft (1 m) |
3.28 ft (1 m) |
Power supply |
4 x AA (alkaline) |
8 x AA (alkaline) |
- |
Power consumption (typical) |
70 mA |
Hi mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal transmission: 10 mA |
- |
Battery life |
Approx. 25 h |
Hi mode: approx. 25 h
Loop mode: approx. 18 h |
- |
Low battery indication |
• |
• |
- |
Fuse |
- |
- |
1.26 in (32 mm) |
Dimensions (L x W x H) |
Approx. 7.2 x 2.95 x 1.69 in (183 x 75 x 43 mm) |
Approx. 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm) |
Approx. 5.9 x 2.75 x 1.18 in
(150 x 70 x 30 mm) |
Weight |
Approx. 0.6 lb (0.27 kg) |
Approx. 1.25 lb (0.57 kg) |
Approx. 0.25 lb (0.114 kg) |
