Amprobe AT-4005-A Advanced Wire Tracer with Clamp-On Attachment, Battery Booster & Charger
Quickly trace energized and non-energized wires effortlessly with the Amprobe AT-4000-A Wire Tracer Series. Out-performing other wire tracers in its class, these advanced tracers combine features and functions to make locating wires more accurate and your job more efficient.
The most advanced of wire tracers, the Amprobe AT-4005-A wire tracer has all the features of the AT-4004-A plus a battery booster that strengthens the signal for open tracing.
Our best wire tracer, use this electrical wire tracer for finding wires in walls and locating breakers without interrupting power. You can also use it to find energized and de-energized wires, including broken and disconnected wires, and pinpoint shorts and ground faults.
- Supplied with Hard Carrying Case, Clamp-on Transmitter, Battery Pack Recharger and Converter
- Locates and traces wires in walls, floors, conduit, computer cables, etc.
- Pinpoints shorts, ground faults and broken wires
- Traces energized and non-energized (open, broken) wires
- Precise sensitivity adjustment
Traces energized wires without power interruption. Locates
breakers without power interruption. |
• |
• |
• |
• |
Traces unenergized wires (wire continuity and wire grounded
at the end). Pinpoints shorts and ground faults. |
• |
• |
• |
• |
Traces unenergized open wires (broken or disconnected wire).
Pinpoints place where wire is broken. |
• |
• |
• |
• |
Supplied with clamp-on attachment to inject signal without
making contact with bare wire. |
- |
- |
• |
• |
Supplied with battery booster to strengthen signal for open
tracing. |
- |
- |
- |
• |
Amprobe is dedicated to designing and manufacturing high quality, reliable instruments for the skilled professional. The Amprobe Advanced Wire Tracer has a history of providing safe, reliable operation in tracing energized wires, locating circuit breakers and locating wires shorted to the ground. The Amprobe wire tracer has the capability of tracing non-energized wires, locating open breakers and locating open wires.
The AT-4000-A Wire Tracer Upgrade System combines both the current tracing CT-100 and the AT-2000-A series into one versatile tool providing the ability to solve virtually all your tracing problems. In addition to the above features, the receiver provides non-position sensitivity when tracing wire and the transmitter provides a visual indication to the user when the traced line is energized. The level of the signal transmission is also indicated on the LCD of the transmitter unit.

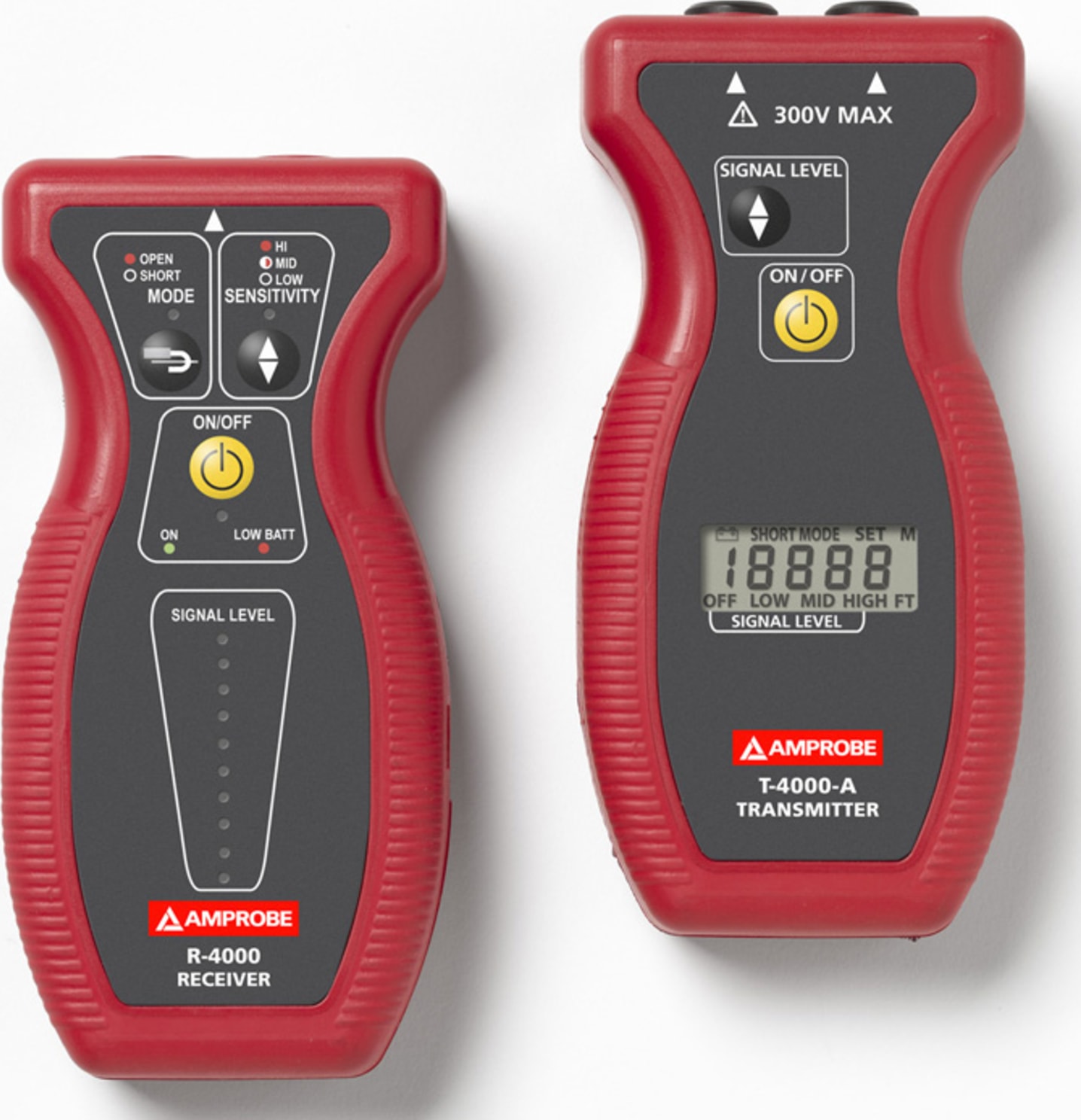

AT-4000-A PRODUCT DESCRIPTION
The AT-4000-A consists of two units:
T-4000-A Transmitter (32.768KHZ, 9-300 V ac or dc)
R-4000 Receiver (Non-position sensitive, Open / Short Tracing)
Unit Description
R-4000 Receiver
It has two built-in detectors that are tuned to pick up the 32.768Khz signals generated by the T-4000-A transmitter. The R-4000 is designed to display the signal strength to enable quick locating of the conductor carrying the signal.
T-4000-A Transmitter
When connected to an energized circuit, the T-4000-A will filter the low frequencies up to 400Hz and rapidly indicate on the display that the wire is energized. When the user starts the transmission, a combination of signals is injected on top of the 50, 60, or 400Hz that causes a slight, periodic current fluctuation and allows the power line to emit its own, traceable signal. This signal can be detected back to the main generator. However, the signal will not interfere with any sensitive electronic equipment and does not require power interruption. The unit is intrinsically safe and has a ‘LOW’ signal transmission setting that must be used when tracing GFCI-protected circuits.
R-4000 Receiver
- LED Indicator: ON - OPEN OFF - SHORT
- Mode control
- Sensitivity control thumbwheel
- LED Indicator: ON - High sensitivity. BLINKING - Medium sensitivity. OFF - Low sensitivity for breakers
- Sensitivity control
- Power ON/OFF
- LED Indicator: Green - Unit ON, Red - Low battery
T-4000-A Transmitter
- Banana plug jack
- Signal level switch
- Power ON/OFF
- Fuse (inside) holder
- 24 Volt jack
- 9V Battery compartment
When connecting to a circuit as a load, the signal will be present anywhere between the T-4000-A and the power source. Line side or upstream, no signal will be present on wiring on the other side of the transmitter (load side or downstream). For example, a transmitter connected to a circuit breaker will produce no signal on that circuit. It will, however, cause a signal to be generated between that panel and the transformer and beyond. When connecting to a non-energized circuit, the live indication on the display will remain ‘OFF’. When the user starts the transmission, the transmitter injects a combination of signals onto the conductor. The signal will travel along the conductor until it ends. There is no difference in the functional mode of the unit when tracing energized and non-energized circuits. On an open line, no current will flow, so the injected signal will present itself as a voltage spike along the wire which is detected by the R-4000 in the ‘OPEN’ mode. When the conductor is part of a complete circuit, the voltage causes a current to flow which produces a signal that is detected in the ‘SHORT’ mode. The T-4000-A contains a 9V battery. A 24V input jack accepts the B2024 rechargeable battery or the B2025 110V converter, both use when a very strong signal is necessary. (Note: When using the battery booster (B2024 or B2025) the unit will work in ultra high “U-HI” mode only. Remove the battery booster to return to normal operation.)
A2202 Clamp-On Transmitter Accessory
Enables the T-4000-A to induce its signal onto a non-energized or energized circuit. Plug the A2202 into the T-4000-A and clamp it around any conductor in a non-energized circuit, or the hot wire in an energized circuit. The signal will be induced on top of the 50, 60, or 400Hz frequency which may be present. The A2202 acts like a 0.5 V battery when clamped around a conductor. On a complete circuit, this voltage will cause about 80mA of current to flow on top of the whatever frequency is present.
To increase the signal strength, loop the wire around the clamp a few times or use the B2024 battery Pack. The A2202 will allow wire tracing without the need for direct connection. (Note: When using the battery booster (B2024 or B2025) the unit will work in ultra high “U-HI” mode only. Remove the battery booster to return to normal operation.)
B2024 Battery Pack
24 V Nickel-cadmium rechargeable battery pack is custom designed to be light weight, small, and durable. Used to boost the output of the T-4000-A. Consult the specs for the boost levels. Includes a self-resetable fuse. Be sure to charge fully before use.
(Do not use the B2024 when tracing energized lines.)
Note: When using the battery booster (B2024 or B2025) the unit will work in ultra high “U-HI” mode only. Remove the battery booster to return to normal operation.
B2025 110V Converter/Recharger
Can be used to either recharge the B2024 or directly boost the T-4000-A. To recharge the battery, leave it connected for at least 8 hours. (Do not use the B2024 when tracing energized lines.)
Note: When using the battery booster (B2024 or B2025) the unit will work in ultra high “U-HI” mode only. Remove the battery booster to return to normal operation.
C2901 Pigtail- Banana Plug Cord set
For use on 110 V ac receptacles.
C2902 Alligator-Clip Banana Plug Cord set
For direct contact to bare conductors
MTL-G Grounding Test lead And Alligator Clips
