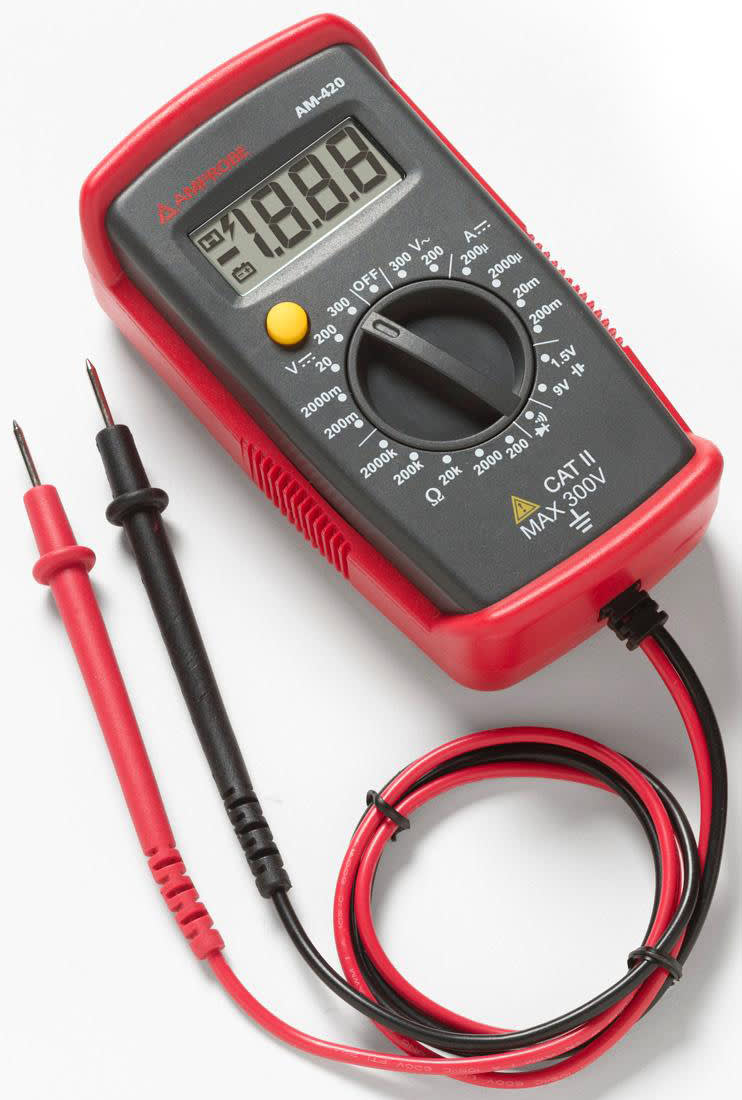

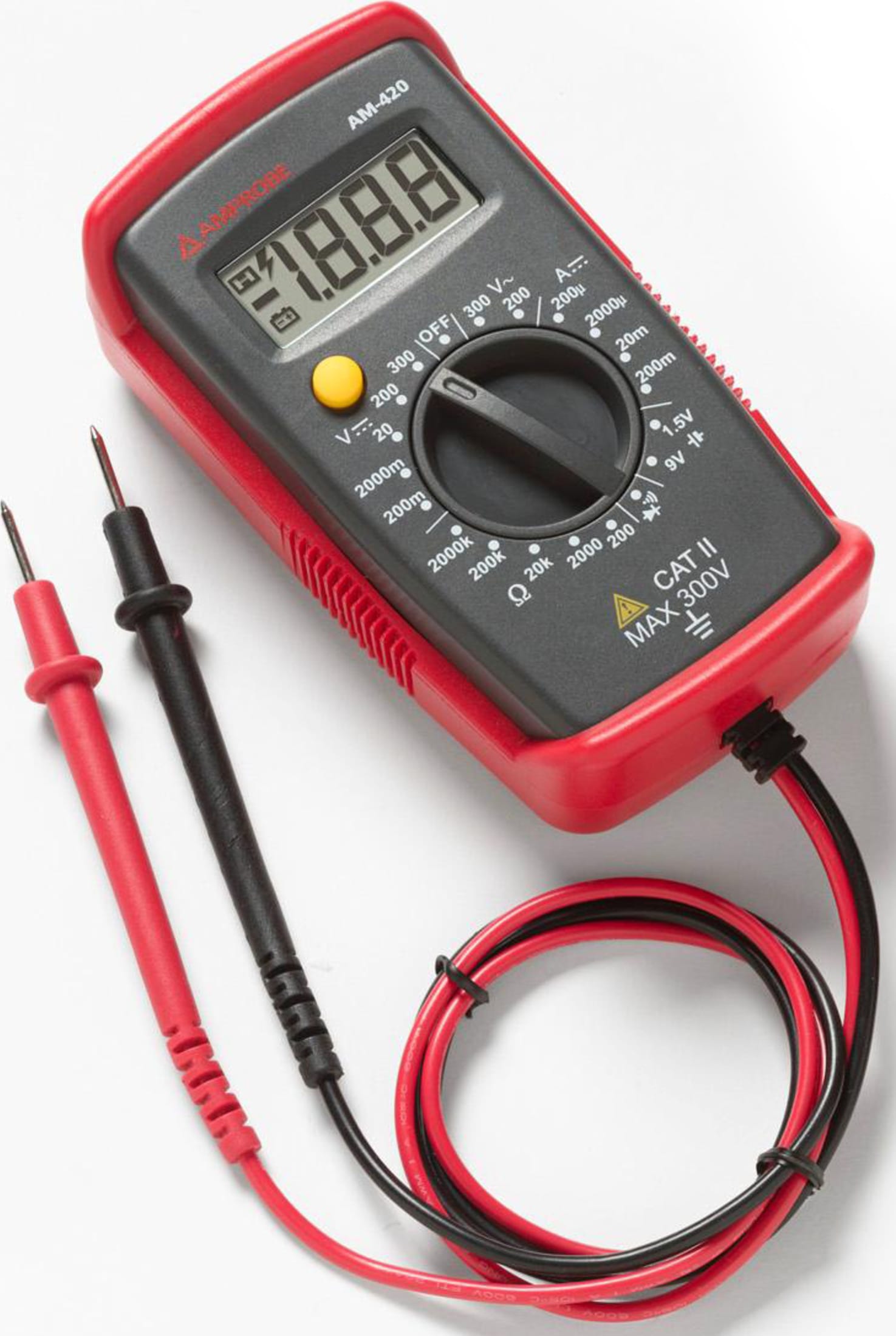

Amprobe AM-420 Digital Multimeter

Name: Amprobe AM-420 Digital Multimeter
Brand: Amprobe
SKU: AmprobeAM-420
Price: 19.09 USD
Availability: InStock

0 reviews | UPC: 095969660914 | Model: Amprobe AM-420

Compare

DIGITAL MULTIMETER

AM-420 Digital Multimeter
Measurements: Voltage up to 250V AC/DC, DC Current and Resistance
Special functions: Audible continuity and diode test
Event: Data hold
Low battery warning
Safety: CAT II 250V

View Product Details

List Price: $25.99

Your Price: $19.09

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Amprobe AM-420 Accessories

Choose a Category

DMM Probe Kits

for the Amprobe AM-420

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

General Specifications
Ambient temperature	23°C ± 5°C (73.4°F ± 9°F); Relative temperature: ≤ 75%
Accuracy	± (% of reading + digits) Maximum voltage between input terminal and earth ground: AC 250 Vrms or DC 250 V
Fuse	F1 315 mA, H 250 V fast-fuse, ( 5 × 20) mm
Maximum display	1999, updates 2 to 3/sec
Over-range indication	" 1 ", "-1" or maximum display reading
Range	Manualranging
Operating altitude	≤ 2000 m
Operating temperature	0°C to +40°C (32°F to 104°F)
Relative humidity	0°C to +30°C (32°F to 86°F) ≤ 75%; +30°C to +40°C (86°F to 104°F) ≤ 50%
Storage temperature	-10°C to +50°C (14°F to 122°F)
Electromagnetic compatibility	In an RF field of 1V/m = Specified accuracy ± 5% RF field > 1V/m is not specified
Power supply	One 9V alkaline battery (6LF22, 6LR61, MN1604) or equivalent
Low battery indication
Dimensions (L x W x H)	115 x 65 x 40 mm (4.5 x 2.6 x 1.6 in)
Weight	Approximately 275 g (0.61 lb) with battery installed
AC Voltage Measurement
Range	Resolution	Accuracy
200 V	0.1 V	±(1.5% + 4 LSD)
250 V	1 V	±(2.0% + 4 LSD)
DC Voltage Measurement
Range	Resolution	Accuracy
200 V	0.1 V	±(1.2% + 2 LSD)
2 V	0.001 V
20 V	0.01 V
200 V	0.1 V
250 V	1 V	±(1.5% + 2 LSD)
DC Current Measurement
Range	Resolution	Accuracy
200 μA	0.1 μA	±(1.2% + 5 LSD)
2 mA	0.001 mA	±(2.5% + 4 LSD)
20 mA	0.01 mA
200 mA	0.1 mA
Resistance Measurement
Range	Resolution	Accuracy
200Ω	0.1 Ω	±(1.5% + 5 LSD)
2 kΩ	0.001 kΩ
20 kΩ	0.01 kΩ
200 kΩ	0.1 kΩ
2 kΩ	0.001 kΩ	±(2.0% + 4 LSD)
Continuity		Diode Measurement
Range	Resolution	Accuracy
	1 Ω	Open circuit voltage is around 3 VDC. Resistance >70Ω, buzzer will not sound. Resistance ≤10Ω, buzzer will sound. 11 < Resistance < 70, not specified.
	1 mV	Open-circuit voltage is around 1.5V. Normal voltage is around 0.5V to 0.8V for silicon PN junction.
Range	Resolution	Accuracy
1.5V	0.001 V	±(8.0% + 1 LSD)
9V	0.01 V
