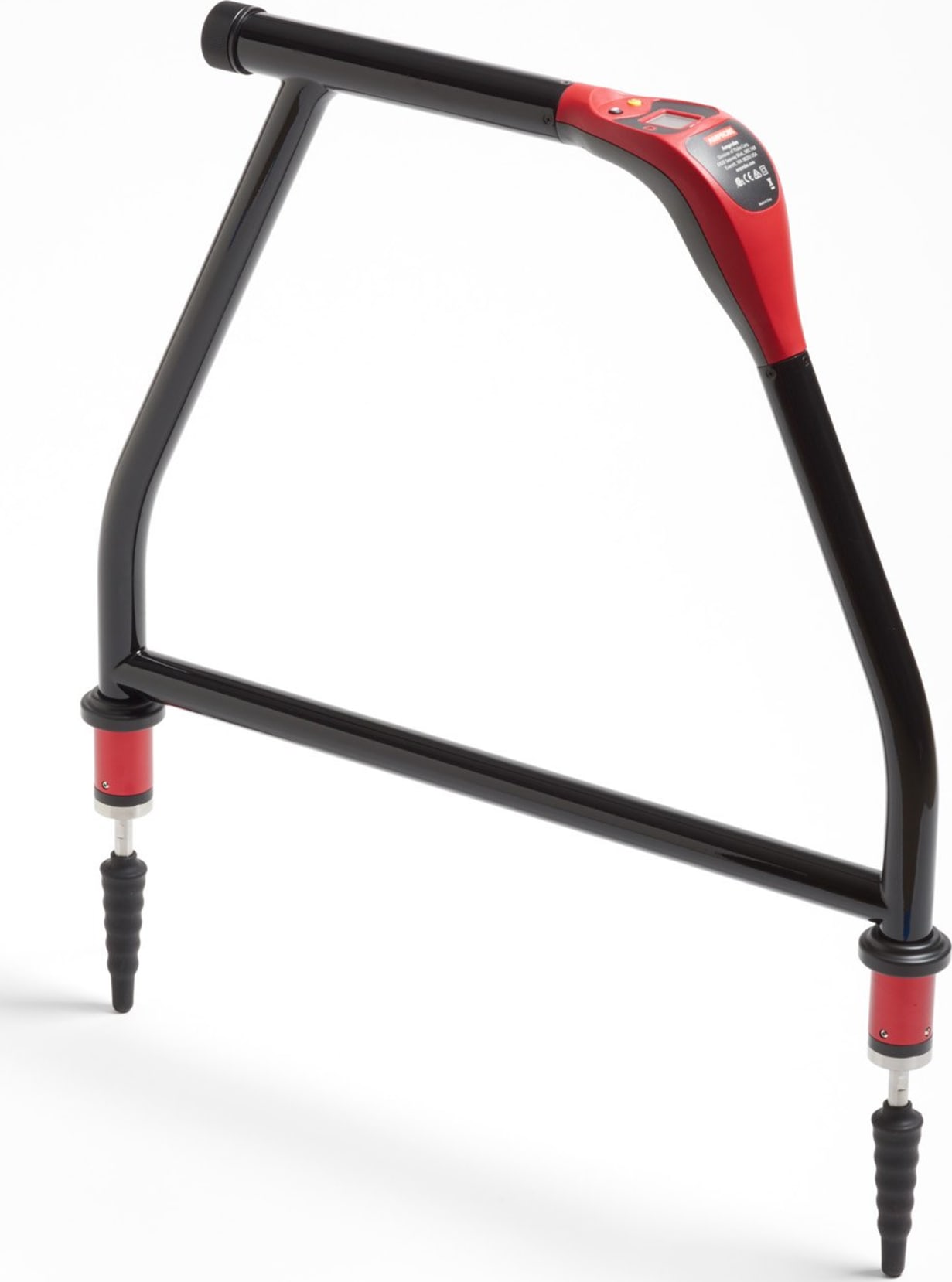

Amprobe AF-600 - Ground Fault Finder

Name: Amprobe AF-600 - Ground Fault Finder
Brand: Amprobe
SKU: AmprobeAF-600
Price: 2122.75 USD
Availability: InStock

0 reviews | UPC: 095969873734 | Model: Amprobe AF-600

Images (5) | Videos (4)

Compare

A-FRAME FAULT LOCATOR, UAT-600 SERIES

Identify any point of leakage around a cable
Locate cable and wire ground faults, sheath faults or pipeline coating defects, where the utility is in direct contact with the ground
Find the exact point where metal is touching the ground and power is leaking, ie, a shield is rusted or a rubber buffer is broken, creating noise on a cable
Advanced technology and digital signal processing makes pinpointing process fast, accurate and clear:
- Compass guidance with numeric fault field strength indicates the direction of the fault
- Distance sensitive left and right arrows guides the user to precisely follow the path of the buried utility
- Automatic gain control quickly detects tracing signal and precisely adjusts the A-Frame sensitivity
- Adjustable volume controls

View Product Details

List Price: $2,731.99

Your Price: $2,122.75

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Amprobe AF-600 A-FRAME FAULT LOCATOR, UAT-600 SERIES	Amprobe SC-600 SIGNAL CLAMP, UAT-600 SERIES	Amprobe CC-UAT-500 CARRYING CASE, UAT-500 SERIES UNDERGROUND UTILITY LOCATOR	Amprobe TL-UAT-500 TEST LEADS KIT, UAT-500 SERIES	Amprobe UAT-500-T TRANSMITTER, UAT-500 SERIES UNDERGROUND UTILITY LOCATOR
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Amprobe AF-600 - A-Frame Ground Fault Finder

Identify any point of leakage around a cable
Locate cable and wire ground faults, sheath faults or pipeline coating defects, where the utility is in direct contact with the ground
Find the exact point where metal is touching the ground and power is leaking, ie, a shield is rusted or a rubber buffer is broken, creating noise on a cable

Ground faults are a common problem with electrical cables. Find any fault with the AF-600 A-Frame cable ground fault finder, specifically designed for use with the Amprobe UAT-600 Series.

Set up the UAT-600-T Transmitter to apply a fault find a signal to the utility under test, the AF-600 A-Frame receives the signal and locates the place of the fault. The AF-600 will pinpoint where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground and can also detect other conductors to ground faults such as pipeline coating defects.

Model: AF-600 A-Frame Specifications
Tracing mode (de-energized)	8 kHz
Locating mode	Ground fault locating
Sensitivity (typical)	Cable locate mode at 1 meter depth: 10 uA Fault locate mode: up to 2 MΩ fault
Display backlight	Automatic
Audio indication	Speaker indicates left/right by pulsed/continuous tone
Compatible transmitter	UAT-600-T Transmitter
Display	1.28 in, 128 x 128 BW outdoor LCD display with auto backlight
Update rate	Instantaneous
Operating temperature and humidity	-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity	-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
Water and dust resistance	IP54
Drop proof	3.28 ft (1 m)
Power supply	(6) 1.5 V AA alkaline batteries
Auto power off	15 minutes idle
Battery life	Approx. 60 hours at 70 °F (21 °C) (Typical)
Size (H x W x L)	Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)
Weight	Approx. 4.2 lb (1.9 kg) (batteries installed)
