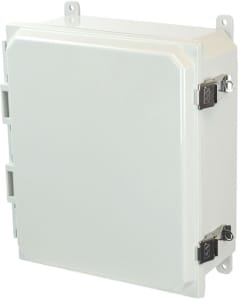

Allied Moulded AMP1204L 12"x10"x4" POLYLINE Polycarbonate Wall Mount Enclosure Assembly with Hinged Cover and Stainless-Steel Snap Latch

• Mounting description: Non-metal feet fastened to back side brass inserts
• Closure type: Metal snap latch
• Cover type: Opaque
• Enclosure type: JIC Size

The Allied Moulded AMP1204L is a 12"x10"x4" POLYLINE Polycarbonate wall mount enclosure assembly with hinged cover and stainless-steel snap latch. This wall mount enclosure offers standard features such as multi-mounting capability with your choice of a mounting flange or adjustable mounting feet. A clear polycarbonate cover option allows the viewing of critical electronic instrumentation while providing protection in harsh environments.

Featuring metallic or non-metallic latches, molded-in latch keepers and mounting bosses, and a tongue-and-groove seal joint between cover and base, POLYLINE is the premier solution in polycarbonate enclosures.


Standards

• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 & 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 & 13
• Complies with
  • NEMA Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 & 13
  • IEC 60529 Type IP66
  • IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters) [screw cover only]
  • RoHS directive

Application

• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in industrial control panels, pump controls/wastewater treatment, irrigation/water control, solar/wind, and chemical plants
• Lightweight, impact-resistant and good corrosion resistance for many industrial enclosure applications and a great alternative to metallic enclosures
• Protects from dirt, dust, oil, and water

Construction

• Injection molded polycarbonate thermoplastic – opaque cover, enclosure base, nonmetal snap latches, feet & flanges
• Opaque cover, enclosure base, feet, and flanges – Light gray color (RAL 7035) Note: flanged models are pre-assembled; if requested, foot mounting hardware supplied in a bag
• 316 stainless steel captive cover screws, metal snap latches and foot/ flange mounting hardware
• Cover seal – Formed-In-Place (FIP) polyurethane gasket system
• #10-32 threaded brass inserts are installed for optional back panel mounting
