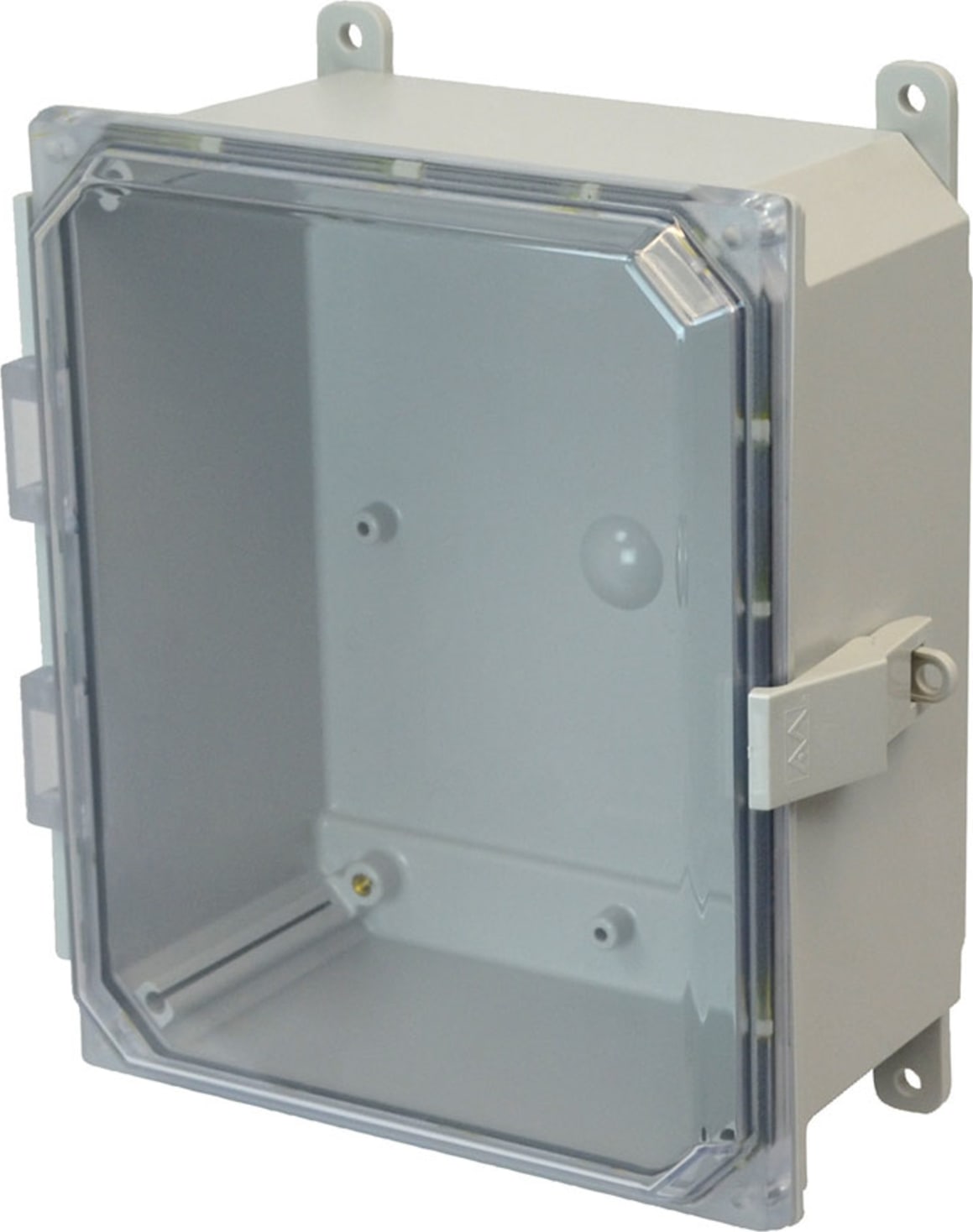

Ultraline comes standard with "industry exclusive" mounting options including an out of the box mounting flange or adjustable mounting feet to cover various mounting configurations. Featuring molded latch keepers, a tongue and groove seal design, and a flange design that can be retrofit to the competition, Ultraline is the ultimate in fiberglass enclosures. A clear polycarbonate cover option is also available for instrumentation applications where critical electronic equipment must be visible and protected from the elements.
Standards
- UL Types 1, 2, 3, 4, 4X, 6P, 12 and 13
- CSA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
- NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
- IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
- Enclosure flammability V-0 per UL 94
- Joint Industrial Council (JIC) sizing
- UV rating (f1) per UL 746C - UV stabilized for outdoor use
- Compliant with RoHS directive
Construction
- Injection-molded polycarbonate thermoplastic - clear cover, enclosure base, and feet
- Enclosure base and feet - Light gray color (RAL 7035). Note: Foot models mounting hardware supplied in a bag
- Stainless steel captive cover screws and foot mounting hardware
- Cover seal - closed-cell neoprene cord encased in a continuous tongue and groove channel
- #10-32 threaded brass inserts are installed for optional back panel mounting
