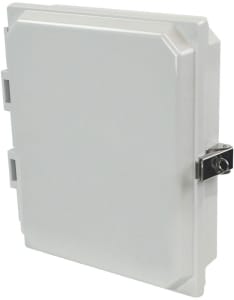

Allied Moulded AMHMI108L 10"x8" HMI Cover Kit with Hinged Opaque Cover and Stainless-Steel Snap Latch

• HMI size: 10"x8"
• Cover type: Opaque
• Closure type: Metal snap latch
• UL recognized component for use with NEMA 4X enclosures

The Allied Moulded AMHMI108L is a 10"x8" HMI cover kit with hinged opaque cover and stainless-steel snap latch. Allied Moulded’s HMI cover kits are designed to provide protection for instruments or electronics requiring routine attention or detail and makes accessibility to electronic components easy! The kits are available in a variety of sizes to accommodate varying HMI display sizes and panel configurations, and securely mount to the outside of any enclosure option.

The cover kits feature a strong and rigid design and are well suited for a variety of indoor or outdoor applications. They are UL listed and come standard with multiple cover latching options, and are available in solid opaque or polycarbonate thermoplastic clear covers for easy component visibility. Optional prop arms secure the cover kit in the “open" position, and allow for easy access to electrical components.


Standards

• Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A
• UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with:
  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Application

• Ideal for covering and protecting instruments or electronics through an enclosure wall, while maintaining all applicable standards and classifications
• No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards
• Includes mounting hole pattern for easy cover kit installation
• Protects from UV, dirt, dust, oil and water

Construction

• Clear polycarbonate thermoplastic, or polycarbonate for opaque covers 316 stainless steel external cover latching hardware and hinge pin
• 316 stainless steel snap latches feature padlock hasp (3/8")
• UV stabilized for outdoor use
• Formed-In-Place (FIP) polyurethane gasket in continuous channel
• Designed for use with wall thicknesses ranging from 16 gauge through 1/4"
• #10-32 threaded brass inserts with plated steel mounting fasteners
