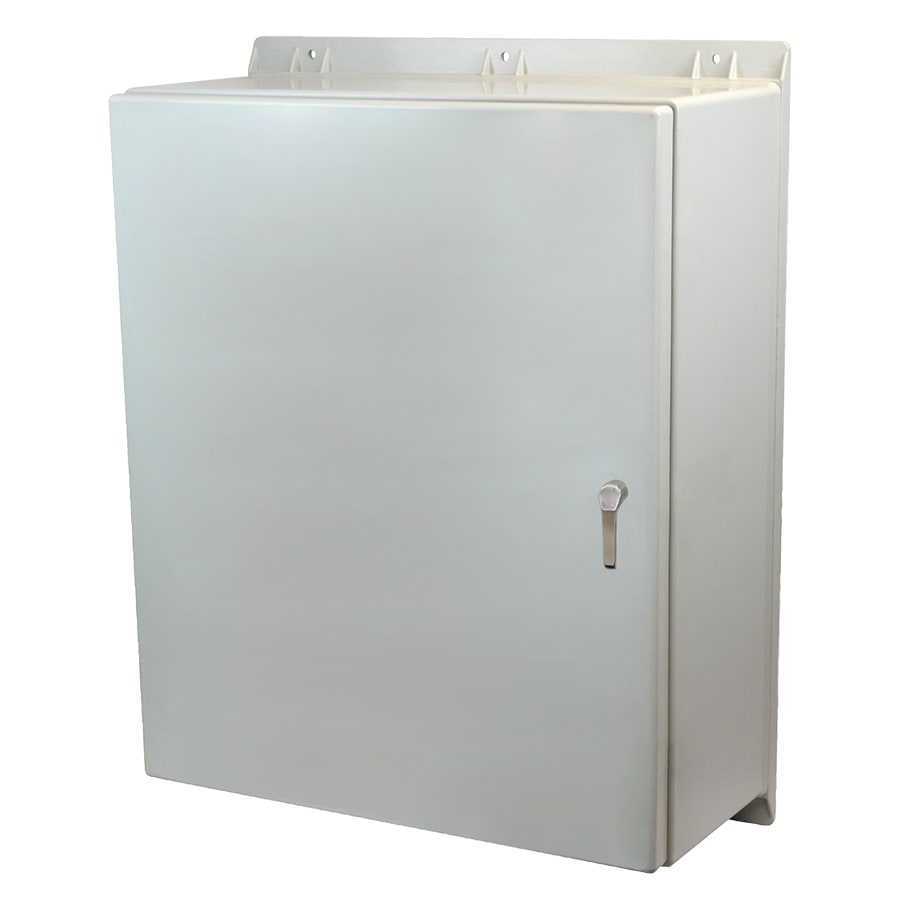

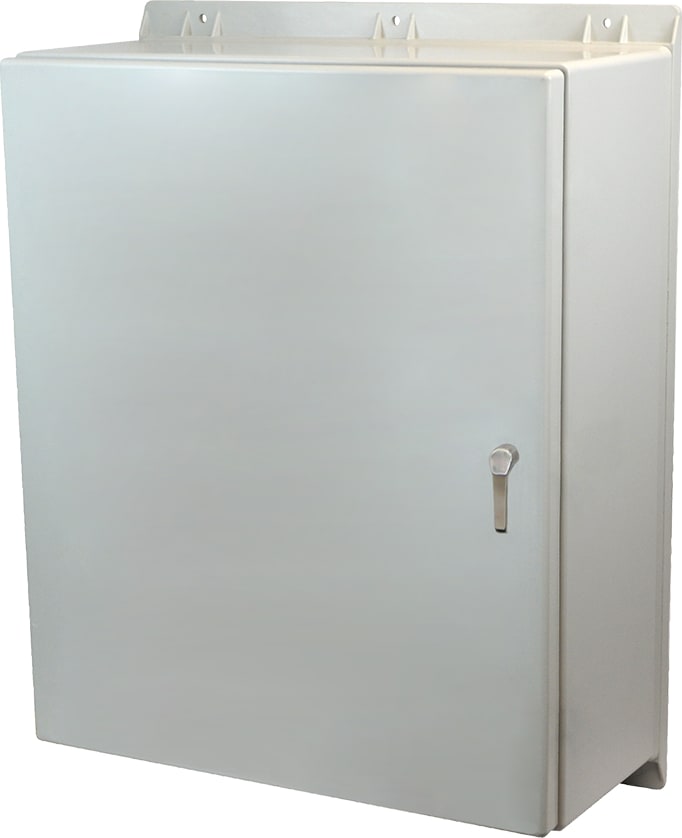

Allied Moulded AMEC3630123PT NEMA 4X Wall Mount Fiber Glass Enclosure

The Empire AMEC Series offers standard features as well as full-panel access and all usable panel space. In addition, the standard gray cover is available with optional custom modifications and accessories. These options include back panels, vent kits, print pockets and ULTRAPLUG® hole plugs.

AMEC enclosures insulate and protect controls and components against the toughest elements in the harshest environments. It is available in the popular 36" x 30" size (with 12" depth) with 316 stainless steel hinges and latching hardware.

Application

• Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications.
• Especially well suited for extreme temperature and corrosive environments.
• Protects from dirt, dust, oil

Construction

• Compression molded cover and two piece box from ULTRAGUARD® material in standard light gray RAL 7035 color
• 316 Stainless Steel latching with padlock provision (three twist latches or 3-point latching handle)
• Formed-In-Place (FIP) polyurethane gasket system provides sealing means to meet IP66/NEMA 4X rating
• Integral mounting flange is compression molded in fiberglass material
• 3/8-16 threaded brass inserts are molded in for optional back panel
• 3/8-6 x .75 combo head, carbon steel-plated screws are included with each enclosure for use with the optional back panel
• Heavy-duty, continuous 316 stainless steel hinge
