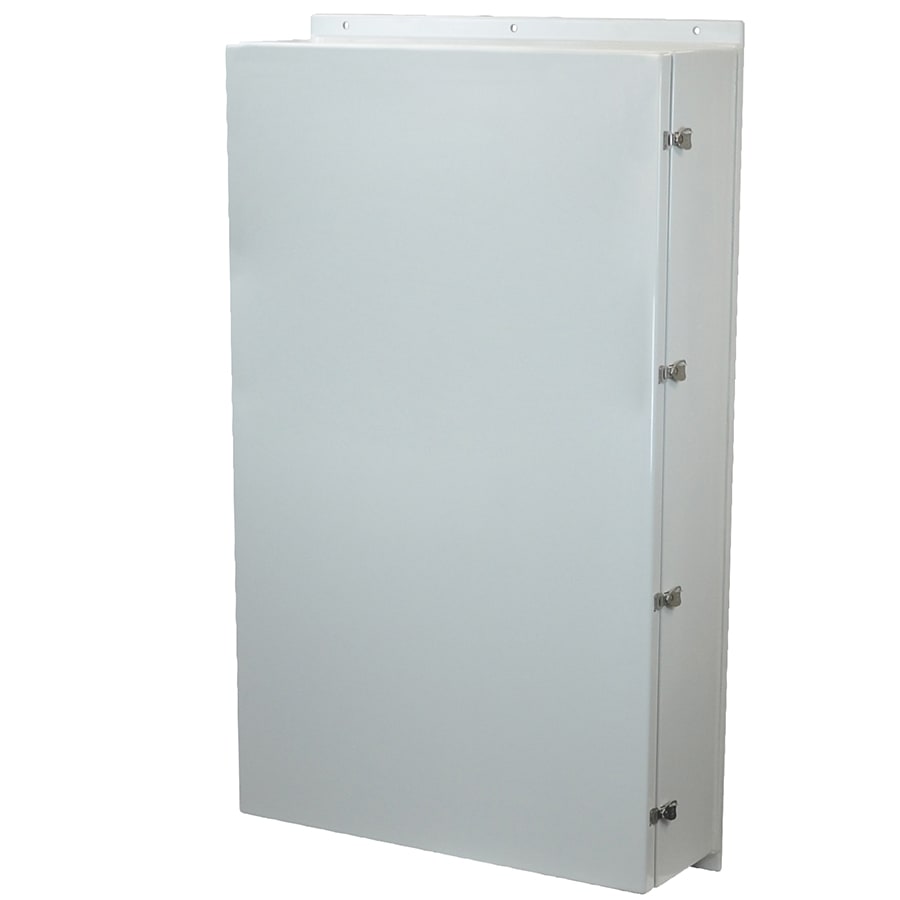

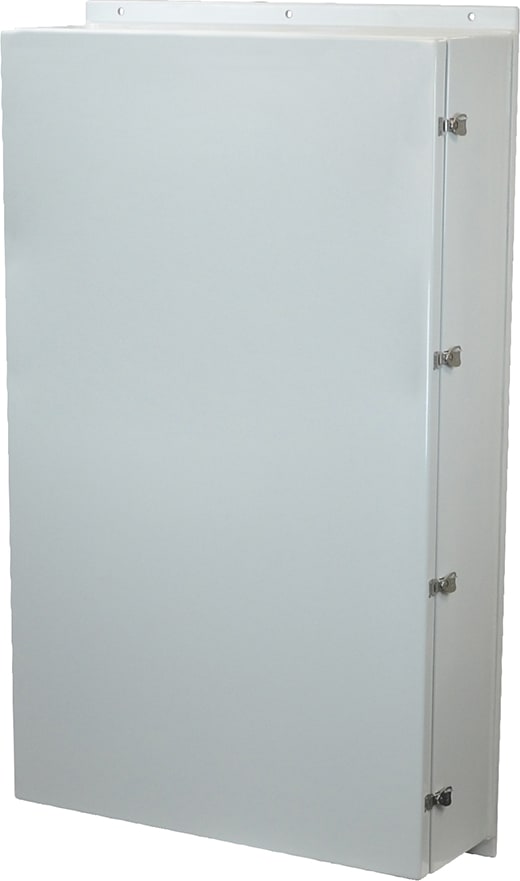

Allied Moulded AM603612L NEMA 4X Wall Mount Fiberglass Enclosure

Allied Moulded Product® Empire series Junction box in RAL 7035 light gray color is constructed from molded Ultraguard® fiberglass reinforced polyester that can be punched/drilled/sawed easily. It features a opaque cover with spring loaded EPDM gasket design that protects from dirt, dust, oil and water.

It measures 37.150 Inch x 11.950 Inch x 64.500 Inch. Junction box has 10.27-Inch usable depth. Junction box features a non-metallic/non-conducting insulation for effective operation. It features heavy-duty stainless steel continuous hinge with lockable twist latch for easy movements of door and to provide safety. Junction box is mounted on wall with molded flange that provides surface protection.

It has a capacity of 25510 cubic inches. Junction box is ideal for high temperature, corrosive environments in both indoor and outdoor applications. Junction box finds application in industrial control panels intended for general industrial use, operating from a voltage of 600 Volts or less. Junction box is UL listed/CSA certified and meets NEMA standards.

For your largest applications, turn to the Empire Series from Allied Moulded. Fiberglass construction offers durability and strength without the excessive weight of a comparable metal enclosure. Available in ten standard sizes, including eight wall mount cabinets from 36" x 30" x 12" to 60" x 36" x 16" and two freestanding sizes up to 72" x 49" x 25". A full range of modification services are also available on our Empire Series enclosures.

Application

• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water

Standards

• UL Types 1, 2, 3, 4, 4X, 12, and 13
• CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• IEC 60529 Type IP66
• Compliant with RoHS directive (Restriction of Hazardous Substances)

Construction

• Strong, molded Ultraguard® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• 10-32 threaded inserts are installed for optional back panel
• JIC sizing
• Ultraguard® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
