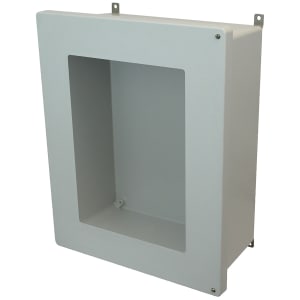

Allied Moulded AM2068HW NEMA 4X Fiberglass Enclosure

AM Series boxes are designed to insulate and protect controls and components in both indoor and outdoor applications and are especially well suited for high temperature or corrosive environments. They feature flat covers with a variety of latching options that allow you to provide the level of security or ease of access needed for each application. The AM Series offers a wide variety of sizes and configurations, including Small junction boxes, Inline pushbutton enclosures in one, two, or three hole configurations and two hole sizes, Standard JIC size enclosures.

Application

• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water

Standards

• UL Types 1, 2, 3, 4, 4X, 12, and 13
• CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• IEC 60529 Type IP66
• Compliant with RoHS directive (Restriction of Hazardous Substances)

Construction

• Strong, molded Ultraguard® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• 10-32 threaded inserts are installed for optional back panel
• JIC sizing
• Ultraguard® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
