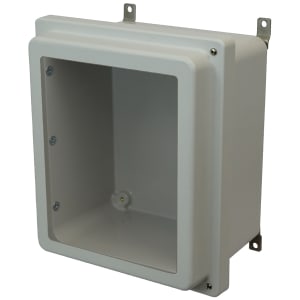

Allied Moulded AM1648RHW NEMA 4X Fiberglass Enclosure

The AM-R Series offers the same sizes and options as our AM series, with the added feature of a raised cover. The cover adds an additional 1 3/4" of depth to accommodate switches and other devices, and can be used with an optional hinged deadfront panel for maximum configuration flexibility within a single enclosure. AM-R Series enclosures insulate and protect controls and components in both indoor and outdoor applications, including high temperature and/or corrosive environments. Available in standard JIC sizes with a variety of latching options for any application.

Application

• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water

Standards

• UL Types 1, 2, 3, 4, 4X, 12, and 13
• CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• IEC 60529 Type IP66
• Compliant with RoHS directive (Restriction of Hazardous Substances)

Construction

• Strong, molded Ultraguard® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• 10-32 threaded inserts are installed for optional back panel
• JIC sizing
• Ultraguard® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
