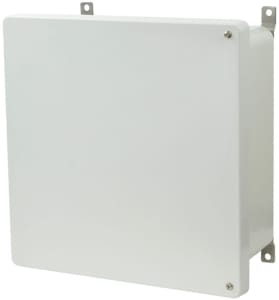

Allied Moulded AM1226H 12"x12"x6" AM Series Fiberglass Wall Mount Enclosure Assembly with 2-Screw Hinged Cover

• Closure type: 2-Screw
• Mounting description: Stainless steel feet fastened to back side brass inserts
• Cover type: Opaque
• Non-corrosive, non-conductive, light weight with lower installation cost

The Allied Moulded AM1226H is a 12"x12"x6" AM series fiberglass wall mount enclosure assembly with 2-screw hinged cover. The AM and AM-R Series boxes are designed to insulate and protect controls and components in both indoor and outdoor applications and are especially well suited for high temperature or corrosive environments. They feature both flat and raised covers with a variety of latching options that allow you to provide the level of security and ease of access needed for each application.

Expanding the series are the new 12"x12"x4" and 12"x12"x6" size options. The new sizes allow for increased space for electrical components while boasting a variety of features and benefits including a formed-in-place gasket, 316 stainless steel hardware, and mounting feet, and our UV stabilized ULTRAGUARD material formulation!


Standards

• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, (6P for screw cover models), 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X (6P for screw cover models), 12 and 13
• Complies with
  • NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
  • IEC 60529 Type IP66 and units rated 6P are IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
  • RoHS directive

Application

• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in oil refineries, wastewater treatment equipment, and chemical plants
• Lightweight, impact-resistant and good corrosion resistance for many industrial enclosure applications and a great alternative to metallic enclosures
• Protects from dirt, dust, oil, and water
• For use with industrial control equipment

Construction

• Strong, molded ULTRAGUARD fiberglass reinforced polyester SMC material construction with matching flat / raised cover
• Standard window size covers available
• 316 stainless steel cover latching options; screws, snap & twist latches
• Formed-In-Place (FIP) polyurethane gasket system encased in continuous channel
• 316 stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded brass inserts for optional back panel installation
• ULTRAGUARD fiberglass material is easily punched, drilled, or sawed
• UV stabilized for outdoor use
