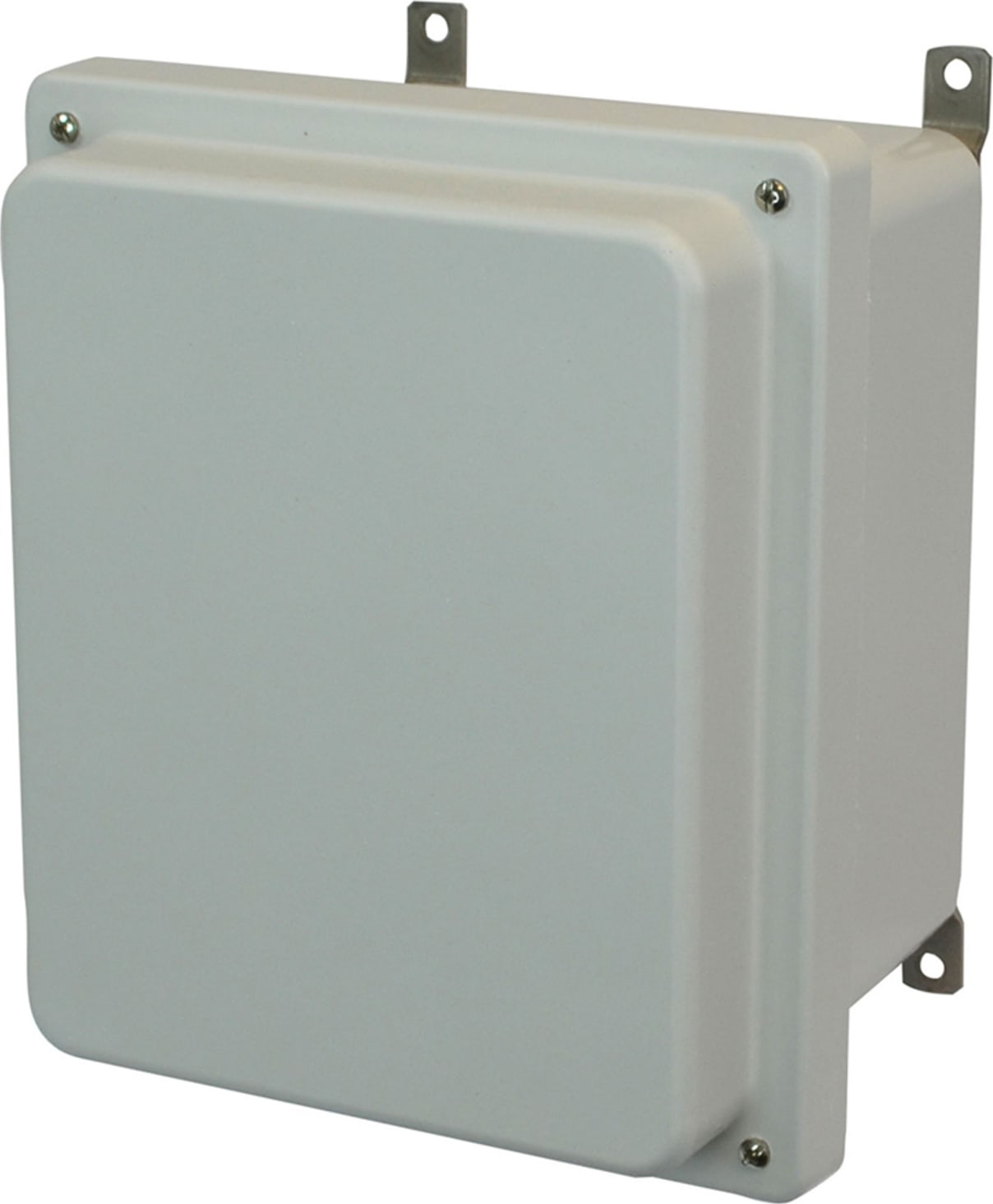

Allied Moulded AM1084R 10x8x4 Fiberglass JIC Enclosure with Lift-Off 4-Screw Solid/Opaque Cover

Name: Allied Moulded AM1084R 10x8x4 Fiberglass JIC Enclosure with Lift-Off 4-Screw Solid/Opaque Cover
Brand: Allied Moulded
SKU: AlliedAM1084R
Price: 81.30 USD
Availability: InStock

0 reviews | UPC: 085339840084 | Model: Allied Moulded AM1084R

Compare

10x8x4 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR

Molded ULTRAGUARD® fiberglass reinforced polyester (FRP) material construction for durability
Continuous 316 stainless steel hinge
Formed-In-Place (FIP) polyurethane gasket system
Matching raised cover
316 stainless steel hardware and mounting feet
Mounting panel inserts for optional back panel
UV stabilized for outdoor use
Non-corrosive
Non-conductive
Standard RAL 7035 light gray color
Temperature-resistant
Fire-resistant
Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
UL® listed
CSA certified
Compliant with RoHS directive

View Product Details

List Price: $98.96

Your Price: $81.30

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Allied Moulded AM1084R 10x8x4 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM664R 6x6x4 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM864R 8x6x4 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM1086R 10x8x6 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM1426R 14x12x6 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM1648R 16x14x8 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM1868R 18x16x8 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM2068R 20x16x8 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR	Allied Moulded AM1206R 12x10x6 NEMA 4X FBRGLS ENCL RAISED LIFT-OFF SCR CVR
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Allied Moulded AM1084R Fiberglass JIC Enclosure

10" x 8" x 4" JIC Fiberglass Enclosure
With Lift-Off 4-Screw Solid/Opaque Cover
Formed-In-Place (FIP) polyurethane gasket system
316 stainless steel hardware and mounting feet

The AM-R Series offers the same sizes and options as our AM series, with the added feature of a raised cover. The cover adds an additional 1-3/4" of depth to accommodate switches and other devices and can be used with an optional hinged front panel (HFP) for maximum configuration flexibility within a single enclosure.

AM-R Series enclosures insulate and protect controls and components in both indoor and outdoor applications, including high temperature and/or corrosive environments. Available in standard JIC sizes with a variety of latching options for any application.

Molded Ultraguard® fiberglass reinforced polyester material construction for durability
Continuous stainless steel hinge
Closed-cell neoprene gasket encased in a continuous channel
Raised cover for additional depth
304 stainless steel hardware and mounting feet
Mounting panel inserts for optional back panel
Optional hinged deadfront panels
UV stabilized for outdoor use
Continuous stainless steel hing

General Specifications
Part No.	Box Size			Usable Depth	Panel Boss Centers		Panel Sizes			Foot Mount Centers		Cover Size
Part No.	A	B	C	F	S	Z	Height	Width	P/N	H	L	K	M	U	W
AM664R	6.10	6.10	4.18	5.29	4.25	4.25	4.81	4.81	PL66 PLA66	5.01	7.32	6.08	6.08	7.69	7.69
AM664R	155 mm	155 mm	106 mm	134 mm	108 mm	108 mm	122 mm	122 mm	PL66 PLA66	127 mm	186 mm	154 mm	154 mm	195 mm	195 mm
AM864R	8.00	6.13	4.14	5.21	6.25	4.25	6.75	4.88	PL86 PLA86	5.02	9.20	6.11	7.95	9.59	7.71
AM864R	203 mm	156 mm	105 mm	132 mm	159 mm	108 mm	171 mm	124 mm	PL86 PLA86	127 mm	234 mm	155 mm	203 mm	244 mm	196 mm
AM1084R	10.14	8.26	4.13	5.21	8.25	6.25	8.75	6.88	PL108 PLA108	7.01	11.19	8.44	10.32	11.73	9.90
AM1084R	258 mm	210 mm	105 mm	132 mm	210 mm	159 mm	222 mm	175 mm	PL108 PLA108	178 mm	284 mm	214 mm	262 mm	299 mm	251 mm
AM1086R	10.14	8.26	6.13	7.21	8.25	6.25	8.75	6.88	PL108 PLA108	701	11.19	8.44	10.32	11.73	9.85
AM1086R	258 mm	210 mm	156 mm	183 mm	210 mm	159 mm	222 mm	175 mm	PL108 PLA108	178 mm	284 mm	214 mm	262 mm	298 mm	250 mm
AM1206R	12.14	10.26	6.13	7.21	10.25	8.25	10.75	8.88	PL120 PLA120	9.01	13.19	10.45	12.32	13.73	11.85
AM1206R	308 mm	261 mm	156 mm	183 mm	260 mm	210 mm	273 mm	225 mm	PL120 PLA120	229 mm	335 mm	265 mm	313 mm	349 mm	301 mm
AM1224R	12.14	12.14	4.13	5.26	10.25	10.25	10.75	10.75	PL122 PLA122	11.01	13.32	12.19	12.19	13.72	13.72
AM1224R	308 mm	308 mm	105 mm	134 mm	260 mm	260 mm	273 mm	273 mm	PL122 PLA122	280 mm	338 mm	310 mm	310 mm	348 mm	348 mm
AM1226R	12.14	12.14	6.13	7.26	10.25	10.25	10.75	10.75	PL122 PLA122	11.01	13.32	12.19	12.19	13.72	13.72
AM1226R	308 mm	308 mm	156 mm	184 mm	260 mm	260 mm	273 mm	273 mm	PL122 PLA122	280 mm	338 mm	310 mm	310 mm	348 mm	348 mm
AM1426R	14.14	12.26	6.13	7.21	12.25	10.25	12.75	10.88	PL142 PLA142	11.03	15.19	12.45	14.32	15.73	13.85
AM1426R	359 mm	312 mm	156 mm	183 mm	311 mm	260 mm	324 mm	276 mm	PL142 PLA142	280 mm	386 mm	316 mm	364 mm	399 mm	352 mm
AM1648R	16.27	14.4	8.13	9.21	14.25	12.25	14.75	12.88	PL164 PLA164	13.01	17.19	13.86	15.73	17.87	15.99
AM1648R	413 mm	366 mm	207 mm	234 mm	362 mm	311 mm	375 mm	327 mm	PL164 PLA164	330 mm	437 mm	352 mm	400 mm	454 mm	406 mm
AM1868R	18.40	16.40	8.13	9.22	16.25	14.25	16.88	14.88	PL186 PLA186	14.97	19.28	15.86	17.86	20.00	18.00
AM1868R	467 mm	417 mm	207 mm	234 mm	413 mm	362 mm	429 mm	378 mm	PL186 PLA186	380 mm	490 mm	403 mm	454 mm	508 mm	457 mm
AM2068R	20.00	16.00	8.13	9.21	17.81	13.81	18.44	14.44	PL206 PLA206	14.54	20.84	15.43	19.43	21.59	17.59
AM2068R	508 mm	406 mm	207 mm	234 mm	452 mm	351 mm	468 mm	367 mm	PL206 PLA206	369 mm	529 mm	392 mm	494 mm	548 mm	447 mm

Tech Specs

Test Equipment General Attributes
Product Height	7.00 IN
Product Length	13.00 IN
Product Width	11.00 IN
Shipping Height	7.00 IN
Shipping Length	13.00 IN
Shipping Width	11.00 IN
