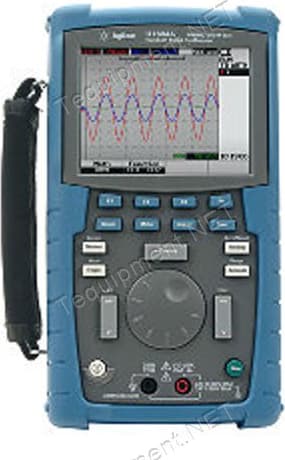

Vertical System: Scope Channels |
|
Bandwidth (–3 dB) |
U1602A/U1602B: DC to 20 MHz
U1604A/U1604B: DC to 40 MHz |
|
DC vertical gain accuracy |
5 mV/div to 20 mV/div: ± 5% full scale
50 mV/div to 100 V/div: ± 3% full scale |
|
Scope Channel Triggering |
|
Trigger sensitivity |
DC to 5 MHz: 0.8 divisions
U1602A/U1602B: 5 MHz to 20 MHz – 1 division
U1604A/U1604B: 5 MHz to 40 MHz – 1 division |
|
SCOPE CHARACTERISTICS |
Readback Accuracy
(from front panel or over GPIB with respect to actual output) |
Voltage: 0.05% + 120 mV
Current: 0.1 % + 35 mA |
|
Acquisition: Scope Channels |
|
Maximum sample rate |
100 MSa/s per channel (50 s/div to 250 ns/div) 3
200 MSa/s single channel and interleaved (125 ns/div) 4 |
|
Equivalent sample rate |
U1604A/U1604B: 2.5 GSa/s (125 ns/div to 10 ns/div) |
|
Vertical resolution |
8 bits |
|
Maximum recording length: |
U1602A/U1604A: Up to 11 100 points, viewable on screen with zoom function
U1602B/U1604B: Up to 125 000 points, viewable on screen with zoom function |
|
Peak detection |
5 ns |
|
Average |
Selectable in average number of 2, 4, 8, 16, 32, 64, 128, 256 |
|
Vertical System: Scope Channels |
|
Analog channels |
Channel 1 and Channel 2 simultaneous acquisition |
|
Bandwidth (–3 dB) |
U1602A/U1602B: DC to 20 MHz
U1604A/U1604B: DC to 40 MHz |
|
AC coupled |
< 10 Hz without probe
< 1 Hz with 10 MW 10:1 probe |
|
Rise time |
U1602A/U1602B: < 17.5 ns
U1604A/U1604B: < 8.8 ns |
|
Single shot bandwidth |
U1602A/U1602B: 20 MHz
U1604A/U1604B: 40 MHz |
|
Vertical sensitivity |
5 mV/div to 100 V/div (1:1 scope probe)
50 mV/div to 1 kV/div (10:1 scope probe)
500 mV/div to 10 kV/div (100:1 scope probe) |
|
Maximum input |
CAT III 300 Vrms (up to 400 Hz) from terminal to ground |
|
Offset/Dynamic range |
± 5 div |
|
Input impedance |
1 MΩ II < 20 pF |
|
Coupling |
AC, DC, GND |
[1] All speci?cations are warranted. Speci?cations are valid after a 30-minute warm-up period and within a range of ±10 ºC from ?rmware calibration temperature.
[2] All characteristics are typical performance values and are not warranted. Characteristics are valid after a 30-minute warm-up period and within a range of ±10 ºC from ?rmware calibration temperature.
[3] Maximum sampling rates are shown here. Sampling rate will vary according to selected time base. For more information, please refer to User’s and Service Guide.
[4] 200 MS/s sampling rate is only available at 125 ns/div timebase
[5] Number of points displayed will vary according to time base selected. |
|
Probes |
U1560-60001: 1:1 passive probe
U1561-60001: 10:1 passive probe
U1562-60001: 100:1 passive probe |
|
Probe attenuation factors |
1x, 10x, 100x |
|
Coupling |
3 Vp-p, ~ 1 kHz |
|
Maximum probe input |
1x CAT III 300 VAC
10 x, 100x CAT III 600 VAC |
|
Noise peak-to-peak |
3% of full scale or 5 mV, whichever is greater |
|
DC vertical offset accuracy |
± 0.1% div ± 2 mV ± 0.5% offset value |
|
Single cursor accuracy |
4% full scale |
|
Dual cursor accuracy |
4% full scale |
