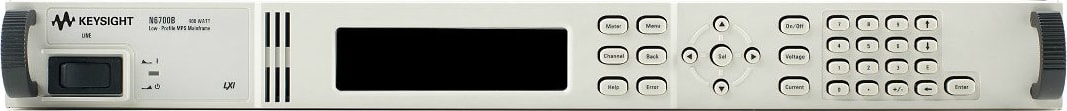

| Maximum total output power |
| 400 W |
when operating from 100 – 240 VAC input |
| Command processing time |
| From receipt of command to start of the output change |
≤1 ms |
| Protection response characteristics |
INH input
Fault on coupled outputs |
5 µs from receipt of inhibit to start of shutdown
< 10 µs (from receipt of fault to start of shutdown) |
| Digital control characteristics |
| Maximum voltage ratings |
16.5 VDC/- 5 VDC between pins (pin 8 is internally connected to chassis ground). |
| Pins 1 and 2 as FLT output |
Maximum low-level output voltage = 0.5 V @ 4 mA
Maximum low-level sink current = 4 mA
Typical high-level leakage current = 0.14 mA @ 16.5 VDC |
Pins 1 - 7 as digital/trigger outputs
(pin 8 = common) |
Maximum low-level output voltage = 0.5 V @ 4 mA; 1 V @ 50 mA; 1.75 V @ 100 mA
Maximum low-level sink current = 100 mA
Typical high-level leakage current = 0.12 mA @ 16.5 VDC |
Pins 1 - 7 as digital/trigger inputs and
pin 3 as INH input
(pin 8 = common) |
Maximum low-level input voltage = 0.8 V
Minimum high-level input voltage = 2 V
Typical low-level current = 2 mA @ 0 V (internal 2.2 k pull-up)
Typical high-level leakage current = 0.12 mA @ 16.5 VDC |
| Interface capabilities |
| GPIB: |
SCPI - 1993, IEEE 488.2 compliant interface |
| LXI compliance |
Class C (applies to mainframes with firmware revision C.00.02 and up) |
| USB 2.0 |
Requires Agilent IO Library version M.01.01 and up, or 14.0 and up |
| 10/100 LAN |
Requires Agilent IO Library version L.01.01 and up, or 14.0 and up |
| Built-in web server |
Requires Internet Explorer 5+ or Netscape 6.2+ |
| Environmental conditions |
| Operating environment |
Indoor use, installation category II (for AC input), pollution degree 2 |
| Temperature range |
0°C to 55°C (current is derated 1% per °C above 40°C ambient temperature) |
| Relative humidity |
Up to 95% |
| Altitude |
Up to 2000 meters |
| Storage temperature |
-30°C to 70°C |
| LED statement |
Any LEDs used in this product are Class 1 LEDs as per IEC 825-1 |
| Regulatory compliance |
| EMC |
Complies with the European EMC directive 89/336/EEC for Class A test and measurement products.
Complies with the Australian standard and carries the C-Tick mark.
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
Electrostatic discharges greater than 1 kV near the I/O connectors may cause
the unit to reset and require operator intervention. |
| Safety |
Complies with the European Low Voltage Directive 73/23/EEC and carries the CE-marking.
This product also complies with the US and Canadian safety standards for test
and measurement products. |
| Acoustic noise declaration |
This statement is provided to
comply with the requirements
of the German Sound Emission
Directive, from 18 January 1991. |
Sound Pressure Lp < 70 dB(A),
* At Operator Position, * Normal Operation, * According to EN 27779 (Type Test).
Schalldruckpegel Lp <70 dB(A)
* Am Arbeitsplatz, * Normaler Betrieb, * Nach EN 27779 (Typprüfung). |
| Output terminal isolation |
| Maximum Rating |
No output terminal may be more than 240 VDC from any other terminal or chassis ground. |
| AC input |
| Nominal input ratings |
100 VAC – 240 VAC; 50/60 Hz/400 Hz |
| Input range |
86 VAC – 264 VAC |
| Power consumption |
1000 VA typical (N6700B mainframes)
1500 VA typical (N6701A mainframes)
3000 VA typical (N6702A mainframes) |
| Fuse |
Internal fuse (not customer accessible) |
| Dimensions |
| Height |
44.45 mm; 1.75 in. |
| Width |
432.5 mm; 17.03 in. |
| Depth (including handles) |
585.6 mm; 23.06 in. |
| Weight |
| N6700B with 4 installed modules |
Net: 12.73 kg; 28 lbs. |
