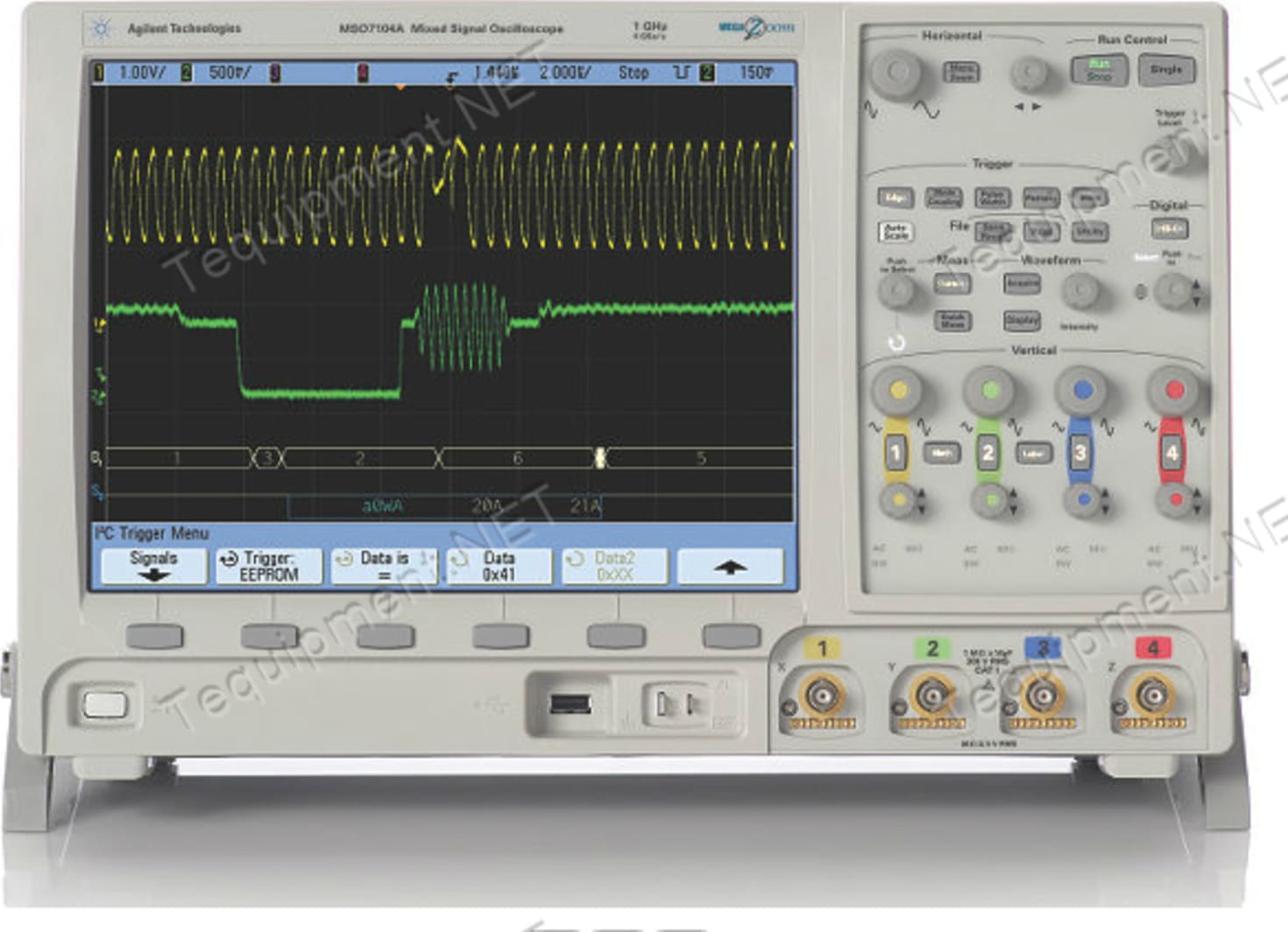

| Acquisition: scope channels |
| Sample rate | MSO/DSO701xA: 2 GSa/s each channel
MMSO/DSO703xA: 2 GSa/sec each channel
MSO/DSO705xA/710xA: 4 GSa/sec half channel*, 2 GSa/sec each channel
Equivalent-time sample rate: 400 GSa/s (when real-time mode is turned off) |
Memory depth
Standard | 2 channels/4 channels
8 Mpts/4 Mpts |
| Vertical resolution | 8 bits |
| Peak detection | MSO/DSO701xA: 500-ps peak detect
MSO/DSO703xA: 500-ps peak detect
MSO/DSO705xA/710xA: 250-ps peak detect |
| Averaging | Selectable from 2, 4, 8, 16, 32, 64 … to 65536 |
| High resolution mode | Average mode with avg = 1
12 bits of resolution when ≥10 µs/div at 4 GSa/s or ≥20-µs/div at 2 GSa/s |
| Filter | Sinx/x interpolation (single shot BW = sample rate/4 or bandwidth of scope,
whichever is less) with vectors on and in real-time mode |
| Vertical system: scope channels |
| Scope channels | MSO/DSO7xx2A: Ch 1 and 2 simultaneous acquisition
MSO/DSO7xx4A: Ch 1, 2, 3 and 4 simultaneous acquisition |
| Bandwidth (–3 dB)* | MSO/DSO701xA: DC to 100 MHz
MSO/DSO703xA: DC to 350 MHz
MSO/DSO705xA: DC to 500 MHz
MSO/DSO710xA: DC to 1 GHz |
| AC coupled | MSO/DSO701xA: 3.5 Hz to 100 MHz
MSO/DSO703xA: 3.5 Hz to 350 MHz
MSO/DSO705xA: 3.5 Hz to 500 MHz
MSO/DSO710xA: 3.5 Hz to 1 GHz |
| Calculated rise time (=0.35/bandwidth) | MSO/DSO701xA: 3.5 nsec
MSO/DSO703xA: 1 nsec
MSO/DSO705xA: 700 psec
MSO/DSO710xA: 350 psec |
| Single-shot bandwidth | MSO/DSO701xA: 100 MHz
MSO/DSO703xA: 350 MHz
MSO/DSO705xA: 500 MHz
MSO/DSO710xA: 1 GHz (in half-channel mode) |
| Range | MSO/DSO701xA, MSO/DSO703xA and MSO/DSO705xA: 2 mV/div to 5 V/div (1 MΩ or 50 Ω)
MSO/DSO710xA: 2 mV/div to 5 V/div (1 MΩ), 2 mV/div to 1 V/div (50 Ω) |
| Maximum input | CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
CAT II 100 Vrms, 400 Vpk
With 10073C 10:1 probe: CAT I 500 Vpk, CAT II 400 Vpk |
| Offset range | ±5 V on ranges <10 mV/div; ±20 V on ranges 10 mV/div to 200 mV/div;
±75 V on ranges >200 mV/div |
| Dynamic range | ±8 div |
| Input impedance | 1 MΩ ± 1% || 14 pF or 50 Ω ± 1.5%, selectable |
| Coupling | AC, DC |
| BW limit | 25 MHz selectable |
| Channel-to-channel isolation | DC to max bandwidth >40 dB |
| Standard probes | 10073C shipped standard for each scope channel (1165A probes optional) |
| Probe ID | Auto probe sense and AutoProbe interface
Agilent- and Tektronix-compatible passive probe sense |
| Vertical system: scope channels (continued) |
| ESD tolerance | ±2 kV |
| Noise, RMS, input shorted | MSO/DSO701xA: 0.50% FS or 300 µV, whichever is greater
MSO/DSO703xA: 0.50% FS or 300 µV, whichever is greater
MSO/DSO705xA: 0.50% FS or 360 µV, whichever is greater
MSO/DSO710xA: 0.65% FS or 360 µV, whichever is greater |
| DC vertical gain accuracy | ±2.0% full scale |
| DC vertical offset accuracy | ≤200 mV/div: ±0.1 div ±2.0 mV ±0.5% offset value;
>200 mV/div: ±0.1 div ±2.0 mV ±1.5% offset value |
| Single cursor accuracy | ±{DC vertical gain accuracy + DC vertical offset accuracy + 0.2% full scale (~1/2 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.1 (10 mV) + 2.0 mV + 0.5% (5 mV) + 0.2% (80 mV)} =
± 4.785 mV |
| Dual cursor accuracy | ±{DC vertical gain accuracy + 0.4% full scale (~1 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.4% (80 mV)} = ±1.92 mV |
| Horizontal |
| Range | MSO/DSO701xA: 2 nsec/div to 50 sec/div
MSO/DSO703xA: 2 nsec/div to 50 sec/div
MSO/DSO705xA: 1 nsec/div to 50 sec/div
MSO/DSO710xA: 500 psec/div to 50 sec/div |
| Resolution | 2.5 ps |
| Time scale accuracy | ≤ ± (15+2* (instrument age in years)) ppm |
| Vernier | 1-2-5 increments when off, ~25 minor increments between major settings when on |
| Delay range | Pre-trigger (negative delay): Greater of 1 screen width or 1 ms
Post-trigger (positive delay): 1 s to 500 seconds |
| Analog delta-t accuracy | Same channel: ±0.0015% reading ±0.1% screen width ±20 ps
Channel-to-channel: ±0.0015% reading ±0.1% screen width ±40 ps
Same channel example (MSO/DSO705xA):
For signal with pulse width of 10 µs, scope set to 5 µs/div (50 µs screen width),
delta-t accuracy = ±{0.0015% (10 µs) + 0.1% (50 µs) + 20 ps} = 50.17 ns |
| Logic delta-t accuracy | Same channel: ±0.005% reading ±0.1% screen width ±(1 logic sample period, 1 ns)
Channel-to-channel:
±0.005% reading ±0.1% screen width ±(1 logic sample period) ±chan-to-chan skew
Same channel example:
For signal with pulse width of 10 µs, scope set to 5 µs/div (50 µs screen width),
delta-t accuracy = ±{0.005% (10 µs) + 0.1% (50 µs) + 1 ns} = 51.5 ns |
| Modes | Main, zoom, roll, XY, segmented (optional) |
| Modes | Bandwidth: Max bandwidth
Phase error at 1 MHz: < 0.5 degrees
Z Blanking: 1.4 V blanks trace (use external trigger on MSO/DSO7xx2A,
channel 4 on MSO/DSO7xx4A) |
| Reference positions | Left, center, right |
| Trigger system | 8 µs (minimum time between trigger events) |
| Horizontal |
| Sources | MSO7xx2A: Ch 1, 2, line, ext, D15 - D0
DSO7xx2A: Ch 1, 2, line, ext
MSO7xx4A: Ch 1, 2, 3, 4, line, ext, D15 - D0
DSO7xx4A: Ch 1, 2, 3, 4, line, ext |
| Modes | Auto, normal (triggered), single |
| Holdoff time | ~60 ns to 10 seconds |
| Trigger jitter | 15 ps rms |
| Trigger system |
| Nth edge burst | Trigger on the Nth edge of a burst that occurs after an idle time that you specify. Max edge
count: 65,536. |
| Autoscale | Finds and displays all active scope and logic (for 7000 Series MSO) channels, sets edge
trigger mode on highest-numbered channel, sets vertical sensitivity on scope channels and
thresholds on logic channels, time base to display ~1.8 periods. Requires minimum voltage
>10 mVpp, 0.5% duty cycle and minimum frequency >50 Hz. |
| Scope channel triggering |
| Range (internal) | ±6 div from center screen |
| Sensitivity | <10 mV/div: greater of 1 div or 5 mV; ≥10 mV/div: 0.6 div |
| Coupling | AC, ~10 Hz on MSO/DSO701xA/703xA/705xA/710xA,
DC, noise reject, HF reject and LF reject (~50 kHz) |
