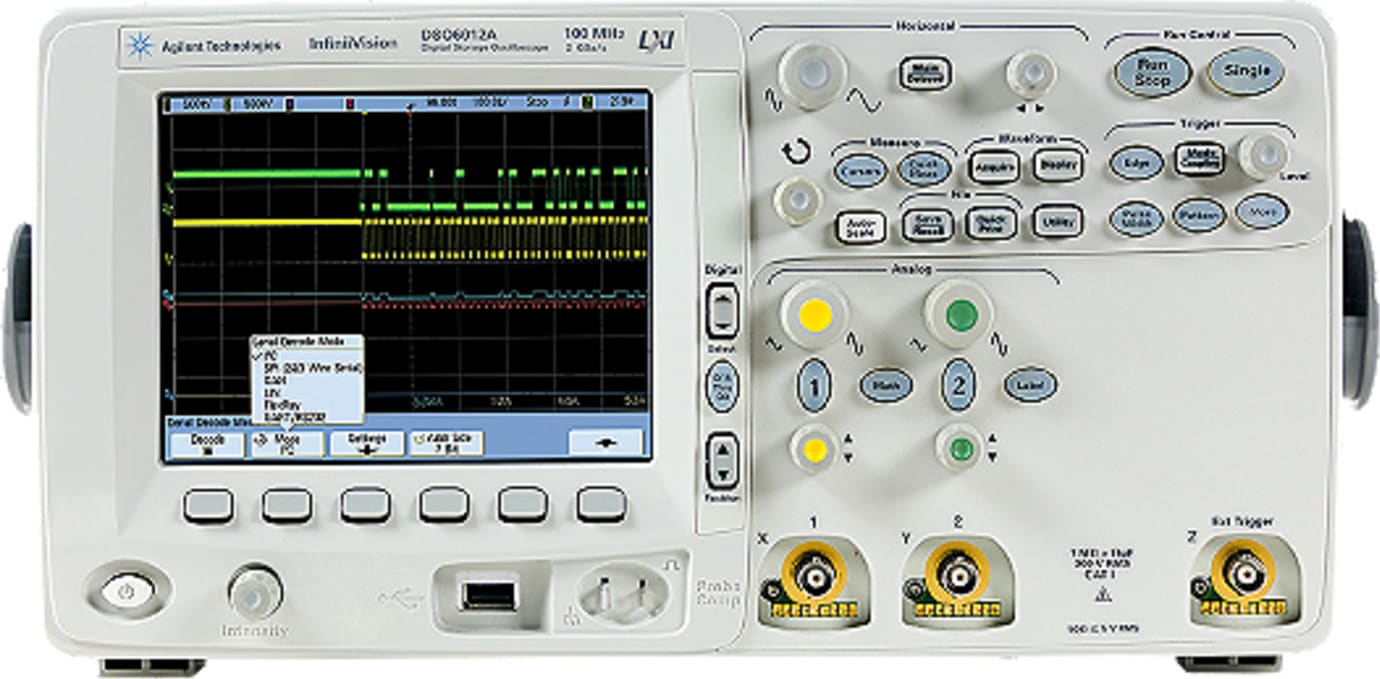

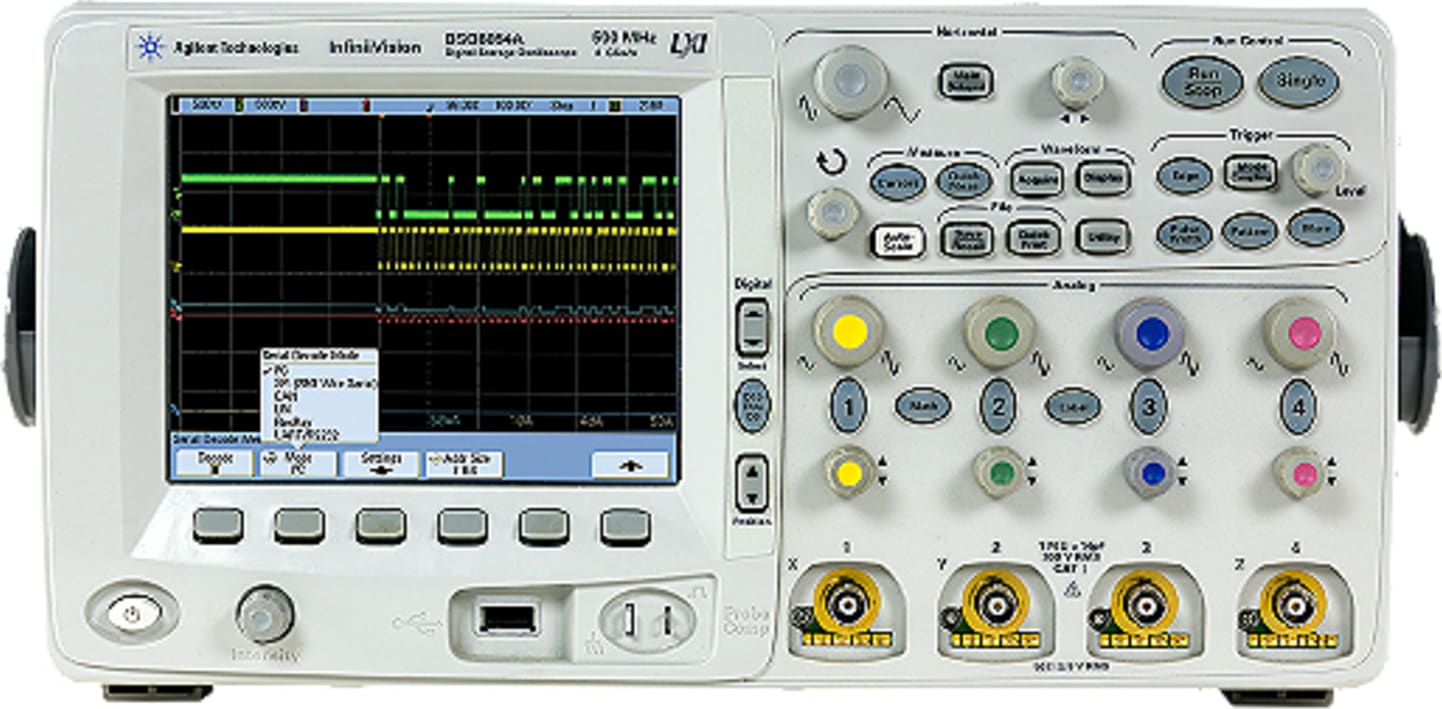

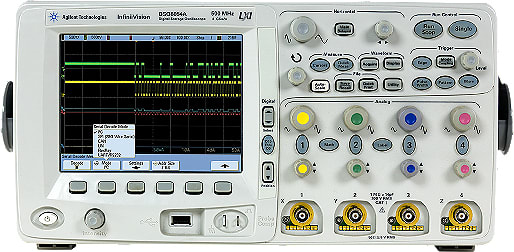

Acquisition: scope channels |
|
Sample rate |
MSO/DSO601xA/603xA: 2 GSa/sec each channel
MSO/DSO605xA/610xA: 4 GSa/sec half channel*, 2 GSa/sec each channel
Equivalent-time sample rate: 400 GSa/s (when real-time mode is turned off) |
|
Maximum memory depth |
2 channels/4 channels
8 Mpts/4 Mpts |
|
Vertical resolution |
8 bits |
|
Peak detection |
MSO/DSO601xA: 1-ns peak detect
MSO/DSO603xA: 500-ps peak detect
MSO/DSO605xA/610xA: 250-ps peak detect |
|
Averaging |
Selectable from 2, 4, 8, 16, 32, 64 … to 65536 |
|
High resolution mode |
Average mode with avg = 1
12 bits of resolution when≥10 µs/div @ 4 GSa/s or ≥20-µs/div @ 2 GSa/s |
|
Filter |
Sinx/x interpolation (single shot BW = sample rate/4 or bandwidth of scope, whichever is less) with vectors on and in real-time mode |
|
Acquisition: digital channels (MSO6000A or MSO-upgraded DSO6000A only) |
|
Sample rate |
2 GSa/sec one pod**, 1 GSa/sec each pod |
|
Maximum input frequency |
250 MHz |
|
Maximum memory depth |
One pod/both pods (with scope channels turned off)
8 Mpts/4 Mpts
One pod/both pods (with scope channels turned on)
2.5 Mpts/ 1.25 Mpts |
|
Vertical resolution |
1 bit |
|
Glitch detection |
2 ns (min pulse width) |
|
Vertical system: scope channels |
|
Scope channels |
MSO/DSO6xx2A: Ch 1 and 2 simultaneous acquisition
MSO/DSO6xx4A: Ch 1, 2, 3 and 4 simultaneous acquisition |
|
Bandwidth (–3dB)* |
MSO/DSO601xA: DC to 100 MHz
MSO/DSO603xA: DC to 300 MHz
MSO/DSO605xA: DC to 500 MHz
MSO/DSO610xA: DC to 1 GHz |
|
AC coupled |
MSO/DSO601xA: 3.5 Hz to 100 MHz
MSO/DSO603xA: 3.5 Hz to 300 MHz
MSO/DSO605xA: 3.5 Hz to 500 MHz
MSO/DSO610xA: 3.5 Hz to 1 GHz |
|
Calculated rise time (=0.35/bandwidth) |
MSO/DSO601xA: 3.5 nsec
MSO/DSO603xA: 1.17 nsec
MSO/DSO605xA: 700 psec
MSO/DSO610xA: 350 psec |
|
Single-shot bandwidth |
MSO/DSO601xA: 100 MHz
MSO/DSO603xA: 300 MHz
MSO/DSO605xA: 500 MHz
MSO/DSO610xA: 1 GHz (in half-channel mode) |
|
Range 1 |
MSO/DSO601xA: 1 mV/div to 5 V/div (1 MΩ)
MSO/DSO603xA and MSO/DSO605xA: 2 mV/div to 5 V/div (1 MΩ or 50 Ω)
MSO/DSO610xA: 2 mV/div to 5 V/div (1 MΩ), 2 mV/div to 1 V/div (50 Ω) |
|
Maximum input |
CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
CAT II 100 Vrms, 400 Vpk
With 10073C or 10074C 10:1 probe: CAT I 500 Vpk, CAT II 400 Vpk |
|
Offset range |
±5 V on ranges <10 mV/div; ±20 V on ranges 10 mV/div to 200 mV/div;
±75 V on ranges >200 mV/div |
|
Dynamic range |
±8 div |
|
Input impedance |
MSO/DSO601xA: 1 MΩ ± 1% || 11 pF
MSO/DSO603xA/605xA/610xA: 1 MΩ ± 1% || 14 pF or 50Ω ± 1.5%, selectable |
|
Coupling |
AC, DC |
|
BW limit |
MSO/DSO601xA: 20 MHz selectable
MSO/DSO603xA/605xA/610xA: 25 MHz selectable |
|
Channel-to-channel isolation |
DC to max bandwidth >40 dB |
|
Standard probes |
MSO/DSO601xA: 10:1 10074C shipped standard for each scope channel
MSO/DSO603xA/605xA/610xA: 10:1 10073C shipped standard for each scope channel |
|
Probe ID |
MSO/DSO601xA: Auto probe sense
MSO/DSO603xA/605xA/610xA: Auto probe sense and AutoProbe interface
Agilent- and Tektronix-compatible passive probe sense |
|
Vertical system: scope channels (continued) |
|
ESD tolerance |
±2 kV |
|
Noise, RMS, input shorted |
MSO/DSO601xA: 0.50% FS or 250 µV, whichever is greater
MSO/DSO603xA: 0.50% FS or 300 µV, whichever is greater
MSO/DSO605xA: 0.50% FS or 360 µV, whichever is greater
MSO/DSO610xA: 0.65% FS or 360 µV, whichever is greater |
|
DC vertical gain accuracy |
±2.0% full scale |
|
DC vertical offset accuracy |
≤200 mV/div: ±0.1 div ±2.0 mV ±0.5% offset value;
>200 mV/div: ±0.1 div ±2.0 mV ±1.5% offset value |
|
Single cursor accuracy |
±{DC vertical gain accuracy + DC vertical offset accuracy + 0.2% full scale (~1/2 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.1 (10 mV) + 2.0 mV + 0.5% (5 mV) + 0.2% (80 mV)} =
± 4.785 mV |
|
Dual cursor accuracy |
±{DC vertical gain accuracy + 0.4% full scale (~1 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.4% (80 mV)} = ±1.92 mV |
|
Vertical system: digital channels (MSO6000A or MSO-upgraded DSO6000A only) |
|
Number of channels |
16 logic timing channels – labeled D15 - D0 |
|
Threshold groupings |
Pod 1: D7 - D0
Pod 2: D15 - D8 |
|
Threshold selections |
TTL, CMOS, ECL and user-definable (selectable by pod) |
|
User-defined threshold range |
±8.0 V in 10 mV increments |
|
Maximum input voltage |
±40 V peak CAT I; transient overvoltage 800 Vpk |
|
Threshold accuracy |
±(100 mV + 3% of threshold setting) |
|
Input dynamic range |
±10 V about threshold |
|
Minimum input voltage swing |
500 mV peak-to-peak |
|
Input capacitance |
~8 pF |
|
Input resistance |
100 kΩ ±2% at probe tip |
|
Channel-to-channel skew |
2 ns typical, 3 ns maximum |
|
Horizontal |
|
Range |
MSO/DSO601xA: 5 nsec/div to 50 sec/div
MSO/DSO603xA: 2 nsec/div to 50 sec/div
MSO/DSO605xA: 1 nsec/div to 50 sec/div
MSO/DSO610xA: 500 psec/div to 50 sec/div |
|
Resolution |
2.5 psec |
|
Time scale accuracy |
≤ ± (15 + 2*(instrument age in years)) ppm |
|
Vernier |
1-2-5 increments when off, ~25 minor increments between major settings when on |
|
Delay range |
Pre-trigger (negative delay): Greater of 1 screen width or 1 ms (with 8 Mpts memory option)
Post-trigger (positive delay): 1 s to 500 seconds |
|
Analog delta-t accuracy |
Same channel: ±0.0015% reading ±0.1% screen width ±20 ps
Channel-to-channel: ±0.0015% reading ±0.1% screen width ±40 ps
Same channel example (MSO/DSO605xA):
For signal with pulse width of 10 µs, scope set to 5 µs/div (50 µs screen width),
delta-t accuracy = ±{0.0015% (10 µs) + 0.1% (50 µs) + 20 ps} = 50.17 ns |
|
Logic delta-t accuracy |
Same channel: ±0.005% reading ±0.1% screen width ±(1 logic sample period, 1 ns)
Channel-to-channel:
±0.005% reading ±0.1% screen width ±(1 logic sample period) ±chan-to-chan skew
Same channel example:
For signal with pulse width of 10 µs, scope set to 5 µs/div (50 µs screen width),
delta-t accuracy = ±{0.005% (10 µs) + 0.1% (50 µs) + 1 ns} = 51.5 n |
|
Modes |
Main, delayed, roll, XY |
|
XY |
Bandwidth: Max bandwidth
Phase error @ 1 MHz: <0.5 degrees
Z Blanking: 1.4 V blanks trace (use external trigger on MSO/DSO6xx2A,
channel 4 on MSO/DSO6xx4A) |
|
Reference positions |
Left, center, right |
|
Segmented memory rearm time |
8 µs (minimum time between trigger events) |
|
Trigger system |
|
Sources |
MSO6xx2A: Ch 1, 2, line, ext, D15 - D0
DSO6xx2A: Ch 1, 2, line, ext
MSO6xx4A: Ch 1, 2, 3, 4, line, ext, D15 - D0
DSO6xx4A: Ch 1, 2, 3, 4, line, ext |
|
Modes |
Auto, Normal (triggered), single |
|
Holdoff time |
~60 ns to 10 seconds |
|
Trigger jitter |
15 ps rms |
