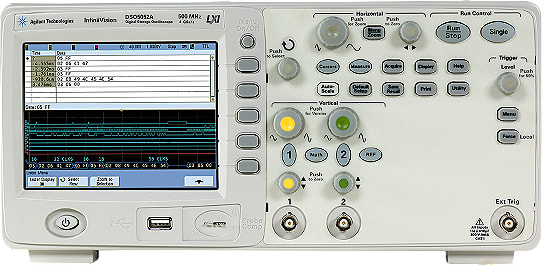

Acquisition |
Sample rate |
DSO501xA/503xA: 2 GSa/a each channel
DSO505xA: 4 GSa/s half channel*, 2 GSa/s each channel |
Equivalent-time sample rate |
400 GSa/s (when real-time mode is turned off) |
Memory depth |
1 Mpts half channel*, 500 kpts each channel |
Vertical resolution |
8 bits, up to 12 in high-resolution or averaging modes |
Peak detection |
DSO501xA: 1 ns peak detect
DSO503xA: 500 ps peak detect
DSO505xA: 250 ps peak detect |
Averaging |
Selectable from 2, 4, 8, 16, 32, 64 … to 65536 |
High resolution mode |
Average mode with #avg = 1
12 bits of resolution when ≥10 μs/div, at 4 GSa/s or ≥20 μs/div, at 2 GSa/s |
Filter |
Sinx/x interpolation (single shot BW = sample rate/4 or bandwidth of oscilloscope, whichever is less) with vectors on and in real-time mode |
Vertical system |
Scope channels |
DSO50x2A: 2 Ch 1 and 2 simultaneous acquisition
DSO50x4A: Ch 1, 2, 3, and 4 simultaneous acquisition |
Bandwidth (–3dB)** |
DSO501xA: DC to 100 MHz
DSO503xA: DC to 300 MHz
DSO505xA: DC to 500 MHz |
AC coupled |
DSO501xA: 3.5 Hz to 100 MHz
DSO503xA: 3.5 Hz to 300 MHz
DSO505xA: 3.5 Hz to 500 MHz |
Calculated rise time (= 0.35/bandwidth) |
DSO501xA: 3.5 nsec
DSO503xA: 1.17 nsec
DSO505xA: 700 psec |
Single-shot bandwidth |
DSO501xA: 100 MHz
DSO503xA: 300 MHz
DSO505xA: 500 MHz |
Range*** |
2 mV/div to 5 V/div (1 MΩ or 50 Ω) |
Maximum input |
Maximum input voltage for analog inputs:
CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
CAT II 100 Vrms, 400 Vpk
with N2863A 10:1 probe: CAT I 600 V, CAT II 300 V (DC + peak AC)
with 10073C 10:1 probe: CAT I 500 Vpk, CAT II 400 Vpk
with 50 Ω input: 5 Vrms, CAT I |
Offset range |
±5 V on ranges < 10 mV/div;
±20 V on ranges 10 mV/div to 200 mV/div;
±75 V on ranges >200 mV/div |
Dynamic range |
±8 div |
Input impedance |
1 MΩ ± 1% || 12 pF or 50 Ω ± 1.0%, selectable |
Coupling |
AC, DC |
BW limit |
25 MHz selectable |
Channel-to-channel isolation |
DC to max bandwidth > 40 dB |
Standard probes |
DSO501xA: 10:1 N2863A shipped standard for each oscilloscope channel
DSO503xA: 10:1 N2863A shipped standard for each oscilloscope channel
DSO505xA: 10:1 10073C shipped standard for each oscilloscope channel |
Probe ID |
Auto probe sense and AutoProbe interface
Agilent- and Tektronix-compatible passive probe sense |
ESD tolerance |
±2 kV |
Noise peak-to-peak |
DSO501xA: 0.5% full scale or 250 μV, whichever is greater
DSO503xA: 0.5% full scale or 300 μV, whichever is greater
DSO505xA: 0.5% full scale or 360 μV, whichever is greater |
DC vertical gain accuracy** |
±2.0% full scale |
DC vertical offset accuracy |
≤ 200 mV/div: ±0.1 div ±2.0 mV ±0.5% offset value;
> 200 mV/div: ±0.1 div ±2.0 mV ±1.5% offset value |
Single cursor accuracy*** |
±{DC vertical gain accuracy + DC vertical offset accuracy + 0.2% full scale (~1/2 LSB)}
Example: for 50 mV signal, oscilloscope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.1 (10 mV) + 2.0 mV + 0.5% (5 mV) + 0.2%(80 mV)} = ± 4.785 mV |
Dual cursor accuracy*** |
±{DC vertical gain accuracy + 0.4% full scale (~1 LSB)}
Example: for 50 mV signal, oscilloscope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.4% (80 mV)} = ±1.92 mV |
Horizontal |
Range |
DSO501xA: 5 nsec/div to 50 sec/div
DSO503xA: 2 nsec/div to 50 sec/div
DSO505xA: 1 nsec/div to 50 sec/div |
Resolution |
2.5 psec |
Timebase accuracy |
25 ppm (0.0025%) to 40° C, plus 1 ppm per ° C from 40° C, to 55° C |
Vernier |
1-2-5 increments when off, ~25 minor increments between major settings when on |
Delay range |
Pre-trigger (negative delay): Greater of 1 screen width or 125 μs
Post-trigger (positive delay): 1 s to 500 seconds |
Channel delta-t accuracy |
Same channel: ±0.0025% reading ±0.1% screen width ±20 ps
Channel-to-channel: ±0.0025% reading ±0.1% screen width ±40 ps
Same channel example (DSO505xA): For signal with pulse width of 10 μs, oscilloscope set to 5 μs/div
(50 μs screen width), delta-t accuracy = ±{0.0025% (10 μs) + 0.1% (50 μs) + 20 ps} = 50.27 ns |
Modes |
Main, delayed, roll, XY |
XY |
Bandwidth: Max bandwidth
Phase error at 1 MHz: < 0.5 degrees
Z Blanking: 1.4 V blanks trace (use external trigger on DSO50x2A, channel 4 on DSO50x4A) |
Reference positions |
Left, center, right |
Trigger system |
Sources |
DSO50x2A: Ch 1, 2, line, ext
DSO50x4A: Ch 1, 2, 3, 4, line, ext |
Modes |
Auto, normal (triggered), single |
Holdoff time |
~60 ns to 10 seconds |
Trigger jitter |
15 ps rms |
Selections |
Edge, pulse width, pattern, TV, duration |
Edge |
Trigger on a rising, falling, or alternating edge of any source |
Pulse width |
Trigger when a positive- or negative-going pulse is less than, greater than, or within a specified range on any of the source channels.
Minimum pulse width setting:
5 ns (DSO501xA)
2 ns (DSO503xA, DSO505xA)
Maximum pulse width setting: 10 s |
Pattern |
Trigger at the beginning of a pattern of high, low, and don't care levels and/or a rising or falling edge established across any of the channels, but only after a pattern has been established for a minimum of 2 nsec. The channel’s high or low level is defined by that channel’s trigger level. |
TV |
Trigger using any oscilloscope channel on most analog progressive and interlaced video standards including HDTV/EDTV, NTSC, PAL, PAL-M or SECAM broadcast standards. Select either positive or negative sync pulse polarity. Modes supported include Field 1, Field 2, all fields, all lines, or any line within a field. TV trigger sensitivity 0.5 division of sync signal. Trigger holdoff time can be adjusted in half field increments. |
Duration |
Trigger on a multi-channel pattern whose time duration is less than a value, greater than a value, greater than a time value with a timeout, or inside or outside of a set of time values.
Minimum duration setting: 2 ns
Maximum duration setting: 10 s |
CAN |
Trigger on CAN (Controller Area Network) version 2.0A and 2.0B signals. Trigger on the start of frame (SOF) bit (standard). N5424A option supports triggering on remote frame ID (RTR), data frame ID (~RTR), remote or data frame ID, data frame ID and data, error frame, all errors, acknowledge error and overload frame. |
LIN |
Trigger on LIN (Local Interconnect Network) sync break at beginning of message frame (standard).
N5424A option supports triggering on frame ID. |
USB |
Trigger on USB (Universal Serial Bus) start of packet, end of packet, reset complete, enter suspend, or exit suspend on the differential USB data lines. USB low speed and full speed are supported. |
I2C |
Trigger on I2C (Inter-IC bus) serial protocol at a start/stop condition or user defined frame with address and/or data values. Also trigger on missing acknowledge, address with no acq, restart, EEPROM read, and 10-bit write. |
SPI |
Trigger on SPI (Serial Protocol Interface) data pattern during a specific framing period. Supports positive and negative Chip Select framing as well as clock Idle framing and user-specified number of bits per frame. |
AutoScale |
Finds and displays all active channels, sets edge trigger mode on highest-numbered channel, sets vertical sensitivity on channels, time base to display ~1.8 periods. Requires minimum voltage > 10 mVpp, 0.5% duty cycle and minimum frequency > 50 Hz. |
Channel triggering |
Range (internal) |
±6 div from center screen |
Sensitivity** |
< 10 mV/div: greater of 1 div or 5mV; ≥ 10 mV/div: 0.6 div |
Coupling |
AC (~10 Hz), DC, noise reject, HF reject and LF reject (~50 kHz) |
