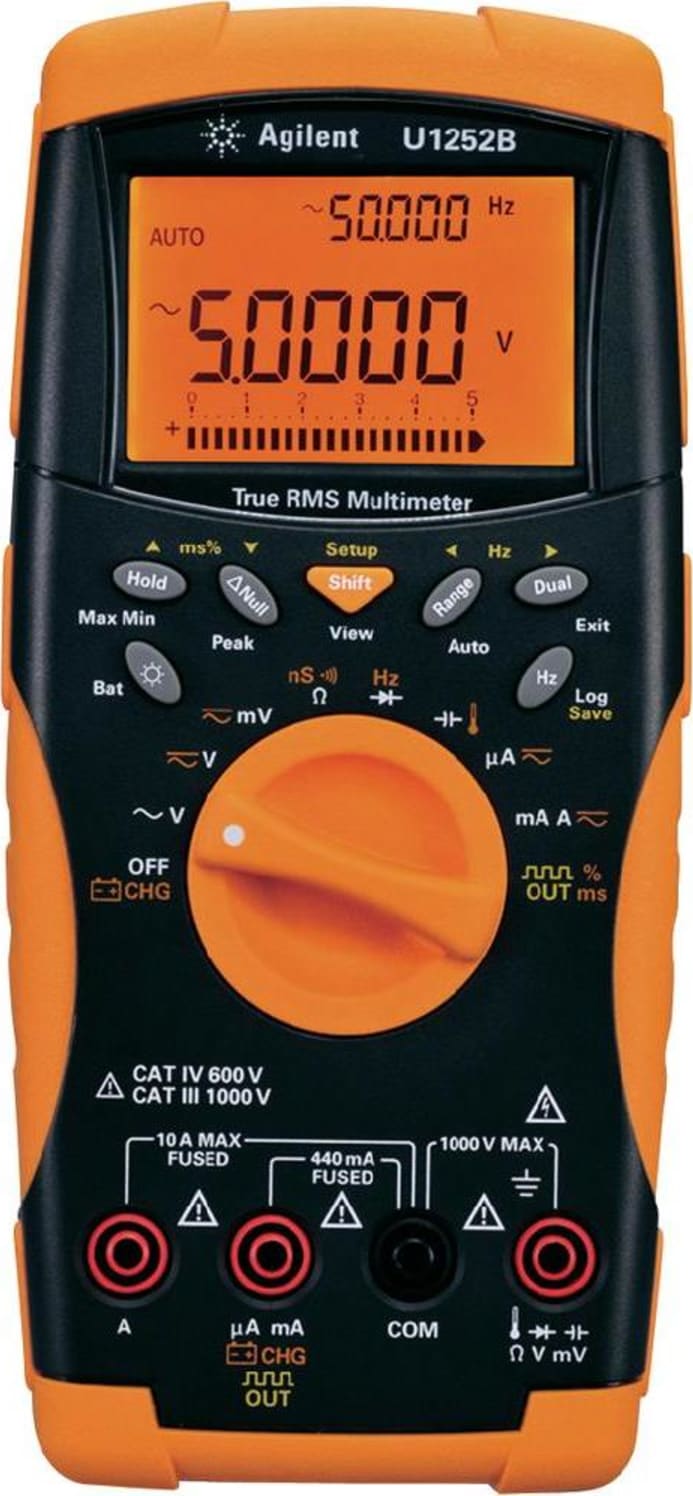

Agilent U1252B Handheld Digital Multimeter, 4.5-digit

Name: Agilent U1252B Handheld Digital Multimeter, 4.5-digit
Brand: Agilent
SKU: AgilentU1252B
Price: 427.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Agilent U1252B

Compare

True RMS 50000 count handheld DMM with freq counter and squarewave output

Superior contrast from organic LED (OLED) display¹
50,000-count dual display
Up to 0.025% basic DCV accuracy
True-RMS AC and AC+DC² measurements
K-type and J-type² temperature measurements
Manual and automated (interval) data logging; internally to DMM and externally to PC
CAT III 1000 V and CAT IV 600 V safety protection
Built-in 20-MHz frequency counter²
Built-in programmable square-wave generator²
Note:
- [1] U1253B model
- [2] U1252B/U1253B models

View Product Details

List Price: $427.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits
High Voltage DMM Probes

for the Agilent U1252B

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Catalog: CT2700

(1)

In Stock!

Add to Cart

Agilent U1252B Handheld Digital Multimeter, 4.5-digit

The Keysight Technologies, Inc. U1250 Series handheld digital multimeters (DMMs) exceed your expectations by delivering powerful features and performance that meet your toughest requirements and applications. The series latest multimeters, the offering capabilities and functions you need.

Do More with Just One Instrument

The basic model, U1251B, expands your capabilities beyond typical DMM measure- ments to include data logging. The U1252B starts with the same foundation, and then adds a 20-MHz frequency counter and programmable square-wave generator - so you’d be able to perform more tests conveniently with one tool. What’s more: both models come bundled with a complete set of accessories to equip you right from the start at no extra cost.

Offering the same functionality as the U1252B, the U1253B is the world’s ﬁrst OLED handheld DMM. You won’t have to squint to be sure you’re reading it right: On the go or on the bench, you’ll get crystal-clear viewing indoors, even in dark, off-angle situations.

Find Problems Quickly

Troubleshooting can be tricky, especially when you’re dealing with elusive problems. With the U1250 Series’data logging capabil- ity, you can ensure that every reading gets recorded manually or at intervals you specify. Better yet: you can have virtually unlimited data logging saves when you connect any of the U1250 Series DMM to a PC with the optional IR-to-USB cable.

In addition, the U1250 Series lets you achieve greater conﬁdence in your mea- surements with accurate true-RMS AC measurements, low DCV error rate of up to 0.025% and high-resolution display of 50,000 counts.

Uncompromising Ruggedness and Safety

The U1250 Series DMMs are housed in robust overmold enclosures, rated at CAT III 1000 V and CAT IV 600 V and operate over a wide temperature range of –20 °C to +55 °C. Each DMM also include a 30 kA high energy fuse to further protect you against violent fuse failures during high- current measurements. Built tough and certiﬁed to stringent industrial standards, the U1250 DMM is what you need to face the demands of everyday tasks.

DC Specification
Function	Range	Resolution	Test Current/ Burden Voltage	Accuracy ± (% of reading + No. of Least Significant Digit)
Function	Range	Resolution	Test Current/ Burden Voltage	U1251B	U1252B/U1253B
Voltage ^[1]	50.000 mV	0.001 mV	-	0.05 + 50 ^[2]	0.05 + 50 ^[2]
	500.00 mV	0.01 mV	-	0.03 + 5	0.025 + 5
	1000.0 mV	0.1 mV	-
	5.0000 V	0.0001 V	1
	50.000 V	0.001 V	-
	500.00 V	0.01 V	-		0.03 + 5
	1000.0 V	0.1 V	-		0.03 + 5
Resistance ^[8]	500.00 Ω ^[3]	0.01 Ω	1.04 mA	0.08 +10	0.05 + 10
	5.0000 kΩ ^[3]	0.0001 kΩ	416 μA	0.08 + 5	0.05 + 5
	50.000 kΩ	0.001 kΩ	41.2 μA
	500.00 kΩ	0.01 kΩ	4.12 μA
	5.0000 MΩ	0.0001 MΩ	375 nA	0.2 + 5	0.15 +5
	50.000 MΩ^[4]	0.001 MΩ	187 nA	1 + 10	1 + 5
	500.000 MΩ^[4]	0.001 MΩ	187 nA	N/A	3+10 < 200 MΩ / 8+10 > 200 MΩ
	500.00 nS^[5]	0.01 nS	187 nA	1 + 20	1 + 10
Current	500.00 μA	0.01 μA	0.06 V (100 Ω)	0.1 + 5 ^[6]	0.05 + 5 ^[6]
	5000.0 μ A	0.1 μ A	0.6 V (100 Ω)	0.1 + 5 ^[6]	0.05 + 5 ^[6]
	50.000 mA	0.001 mA	0.09 V (1 Ω )	0.2 + 5 ^[6]	0.15 + 5 ^[6]
	440.00 mA	0.01 mA	0.9 V (1 Ω )	0.2 + 5 ^[6]	0.15 + 5 ^[6]
	5.0000 A	0.0001 A	0.2 V (0.01 Ω )	0.3 + 10	0.3 + 10
	10.000 A ^[7]	0.001 A	0.4 V (0.01 Ω )	0.3 + 10	0.3 + 5
Diode Test ^[8]	-	0.1 mV	1.04 mA	0.05 + 5
[1] Input impedance: Refer to Table A on page 9. [3] The accuracy of 500 Ω and 5 kΩ is speciﬁed after NULL function, which is used to subtract the test lead resistance and the thermal effect. [4] For the range of 50 MΩ and 500 MΩ, the R.H. is speciﬁed for <60%. [5] The accuracy is speciﬁed for <50 nS and after NULL function with open test lead. [6] Always use the NULL function to zero out thermal effect with open test lead before measuring the signal. If the NULL function is not used, an additional 20 counts needs to be added to the DC current accuracy. Thermal effect could occur due to the following: Wrong operation to measure the high voltage of 50 V ~ 1000 V for resistance, diode, and mV measurements. After battery-charging has completed. After measuring a current greater than 440 mA, it is suggested that the meter be left to cool down for twice the measuring time used. [7] Current can be measured up to 10 A continuously. An additional 0.5% needs to be added to the speciﬁed accuracy if the signal measured is in the range of 10 A~20 A for 30 seconds maximum. After measuring a current of > 10 A, leave the meter to cool down for twice the measuring time used before application of low current measurement. [8] Maximum open voltage: <+ 4.2 V.

U1251B AC Voltage Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			30 Hz ~ 45 Hz	45 Hz ~ 1 kHz	1 kHz ~ 5 kHz	5 kHz ~ 30 kHz
True Rms Ac Voltage ^[1]^[2]	50.000 mV	0.001 mV	1.0+60	0.6+40	1.0+40	1.6+60
	500.00 mV	0.01 mV		0.6+25
	1000.0 mV	0.1 mV			1.0+25	3.5+120
	5.0000 V	0.0001 V
	50.000 V	0.001 V
	500.00 V	0.01 V				N/A
	1000.0 V	0.1 V		0.6+40	1.0+40	N/A

U1251B AC Current Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			30 Hz ~ 45 Hz	45 Hz ~ 2 kHz	2 kHz ~ 20 kHz
Ac Current ^[2]	500.00 μ A ^[4]	0.01 μ A	1.5+50	0.8+20	3.0+80
	5000.0 μ A	0.1 μ A	1.5+40		3.0+60
	50.000 mA	0.001 mA
	440.00 mA	0.01 mA
	5.0000 A	0.0001 A	2.0+40^[6]		3+60, <3 A/5 kHz
	10.000 A ^[5]	0.001 A

U1252B/U1253B AC Voltage Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			20 Hz ~ 45 Hz	45 Hz ~ 1 kHz	1 kHz ~ 5 kHz	5 kHz ~ 15 kHz	15 kHz~100 kHz ^[8]
True Rms Ac Voltage ^[1] ^[2] ^[9]	50.000 mV	0.001 mV	1.5+60	0.4+40	0.7+40	0.75+40	3.5+120
	500.00 mV	0.01 mV		0.4+25	0.4+25
	1000.0 mV	0.1 mV
	5.0000 V	0.0001 V			0.6+25	1.5+40
	50.000 V	0.001 V			0.4+25
	500.00 V	0.01 V				N/A	N/A
	1000.0 V	0.1 V		0.4+40	0.4+40	N/A	N/A
[1] Input impedance: Refer to Table A on page 9. [3] The accuracy of 500 Ω and 5 k Ω is speciﬁed after NULL function, which is used to subtract the test lead resistance and the thermal effect. [4] For the range of 50 M Ω and 500 M Ω, the R.H. is speciﬁed for <60%. [5] The accuracy is speciﬁed for <50 nS and after NULL function with open test lead. [6] Always use the NULL function to zero out thermal effect with open test lead before measuring the signal. If the NULL function is not used, an additional 20 counts needs to be added to the DC current accuracy. Thermal effect could occur due to the following: Wrong operation to measure the high voltage of 50 V ~ 1000 V for resistance, diode, and mV measurements. After battery-charging has completed. After measuring a current greater than 440 mA, it is suggested that the meter be left to cool down for twice the measuring time used. [7] Current can be measured up to 10 A continuously. An additional 0.5% needs to be added to the speciﬁed accuracy if the signal measured is in the range of 10 A~20 A for 30 seconds maximum. After measuring a current of > 10 A, leave the meter to cool down for twice the measuring time used before application of low current measurement. [8] Maximum open voltage: <+ 4.2 V.

U1252B/U1253B AC Current Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			20 Hz ~ 45 Hz	45 Hz ~ 1 Khz	1 Khz ~ 20 Khz	20 Khz~100 Khz ^[7]
TRUE Rms Ac Current ^[2] ^[9]	500.00 μA ^[4]	0.01 μA	1.0+20	0.7+20	0.75+20	5.0+80
	5000.0 μA	0.1 μA
	50.000 mA	0.001 mA
	440.00 mA	0.01 mA			1.5+20
	5.0000 A	0.0001 A	1.5+20 ^[6]		3+60, <3 A/5 kHz	N/A
	10.000 A ^[5]	0.001 A
[1] Input impedance: Refer to Table A on page 9. [2] AC mV/V and AC μA/mA/A speciﬁcations are true RMS AC coupled, valid from 5% to 100% of range. The crest factor may be up to 3 at full scale, up to 5 at half- scale, except for 1000 mV and 1000 V ranges, where the crest factor is 1.5 at full scale and 3 at half scale. [4] Input current >35 μArms. [5] Current can be measured from 2.5 A up to 10 A continuously. An additional 0.5% needs to be added to the speciﬁed accuracy if the signal measured is in the range of 10 A ~ 20 A for 30 seconds maximum. After measuring a current of >10 A, leave the meter to cool down for twice the measuring time used before application of low current measurement. [6] Input current < 3 Arms. [7] The additional error to be added as frequency >20 kHz and signal input <10% of range: 3 counts of LSD per kHz. [8] The additional error to be added as frequency >15 kHz and signal input <10% of range: 3 counts of LSD per kHz. [9] Crest factor ≤ 3.0 at full scale, 5.0 at half scale except the 1000 mV and 1000 V ranges where it is 1.5 at full scale, 3.0 at half scale. For non-sinusoidal waveform, add 0.1% of reading ± 0.3% of range.

U1252B/U1253B AC+DC Voltage Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			30 Hz ~ 45 Hz	45 Hz ~ 1 kHz	1 kHz ~ 5 kHz	5 kHz ~ 15 kHz	15 kHz~100 kHz^[4]
True Rms Ac Voltage ^[1] ^[2]	50.000 Mv	0.001 Mv	1.5+80	0.4+60	0.7+60	0.8+60	3.5+220
	500.00 mV	0.01 mV	1.5+65	0.4+30	0.4+30	0.8+45	3.5+125
	1000.0 mV	0.1 mV
	5.0000 V	0.0001 V			0.6+30	1.5+45
	50.000 V	0.001 V			0.4+30
	500.00 V	0.01 V				N/A	N/A
	1000.00 V	0.1 V		0.4+45	0.4+45	N/A	N/A
[1] Input impedance: Refer to Table A on page 9. [2] AC mV/V and AC μA/mA/A speciﬁcations are true RMS AC coupled, valid from 5% to 100% of range. The crest factor may be up to 3 at full scale, up to 5 at half- scale, except for 1000 mV and 1000 V ranges, where the crest factor is 1.5 at full scale and 3 at half scale. [4] Input current >35 μArms. [5] Current can be measured from 2.5 A up to 10 A continuously. An additional 0.5% needs to be added to the speciﬁed accuracy if the signal measured is in the range of 10 A ~ 20 A for 30 seconds maximum. After measuring a current of >10 A, leave the meter to cool down for twice the measuring time used before application of low current measurement. [6] Input current < 3 Arms. [7] The additional error to be added as frequency >20 kHz and signal input <10% of range: 3 counts of LSD per kHz. [8] The additional error to be added as frequency >15 kHz and signal input <10% of range: 3 counts of LSD per kHz. [9] Crest factor ≤ 3.0 at full scale, 5.0 at half scale except the 1000 mV and 1000 V ranges where it is 1.5 at full scale, 3.0 at half scale. For non-sinusoidal waveform, add 0.1% of reading ± 0.3% of range.

U1252B/U1253B AC+DC Current Specification
Function	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit)
			Frequency
			30 Hz ~ 45 Hz	45 Hz ~ 1 kHz	1 kHz ~ 20 kHz
True Rms Ac Current ^[10]	500.00 μA ^[6]	0.01 μA	1.1+25	0.8+25	0.8+25
	5000.0 μA	0.1 μA
	50.000 mA	0.001 mA	1.2+25	0.9+25	0.9+25
	440.00 mA	0.01 mA
	5.0000 A	0.0001 A	1.8+30^[8]	0.9+30	3.3+70, <3 A/5 kHz
	10.000 A ^[7]	0.001 A		0.9+25

U1251B/U1252B Temperature Specification
Thermocouple Type	Range		Resolution	Accuracy
Thermocouple Type	ºC	ºF	Resolution	ºC	ºF
K	–200 ~ 1372 ºC	–328 ~ 2502 ºF	0.1 ºC/0.1 ºF	0.3% + 3 ºC	0.3% + 6 ºF
J (for U1252A/U1252B)	–210 ~ 1200 ºC	–346 ~ 2192 ºF	0.1 ºC/0.1 ºF	0.3% + 3 ºC	0.3% + 6 ºF

U1253B Temperature Specification
Thermocouple Type	Range		Resolution	Accuracy
Thermocouple Type	ºC	ºF	Resolution	ºC	ºF
K	–200 ~ –40 °C	–104 ~ –40 °F	0.1 ºC/0.1 ºF	1% + 3 °C	1% + 5.4 °F
K	–40 ~1372 °C	–40 ~ 2502 °F	0.1 °C /0.1 °F	1% + 1 °C	1% + 1.8 °F
J	–210 ~ –40 °C	–346 ~ –40 °F	0.1 °C /0.1 °F	1% + 3 °C	1% + 5.4 °F
J	–40 ~ 1200 °C	–40 ~ 2192 °F	0.1 °C /0.1 °F	1% + 1 °C	1% + 1.8 °F

Capacitance Specification
Range	Resolution	Accuracy	Measuring Rate at Full Scale	Max. Display
10.000 nF	0.001 nF	1% + 8	4 times/sec.	11000 counts
100.00 nF	0.01 nF	1% + 5
1000.0 nF	0.1 nF
10.000 μF	0.001 μF
100.00 μF	0.01 μF
1000.0 μF	0.1 μF		1 time/sec.
10.000 mF	0.001 mF		0.1 times/sec.
100.00 mF	0.01 mF	3% + 10	0.01 times/sec

Frequency Specifications ^[5]
Range	Resolution	Accuracy		Min. Input Frequency
		U1251B/2B	U1253B
99.999 Hz	0.001 Hz	0.02%+3 ^[9]	0.02%+3 ^[9]	1 Hz
999.99 Hz	0.01 Hz	0.02%+3, <600 kHz	0.02%+3, <600 kHz
9.9999 kHz	0.0001 kHz
99.999 kHz	0.001 kHz
999.99 kHz	0.01 kHz

U1251B Frequency Sensitivity During Voltage Measurement
Frequency Sensitivity And Trigger Level
Input Range	Minimum Sensitivity (R.M.S. Sine Wave)		Trigger Level For Dc Coupling
(Maximum input for specified accuracy = 10 x Range or 1000 V)	20 Hz - 100 kHz	>100 kHz ~ 200 kHz	< 100 kHz	>100 kHz ~ 200 kHz
50.000 mV	10 mV	15 mV	10 mV	15 mV
500.00 mV	25 mV	35 mV	60 mV	70 mV
1000.0 mV	40 mV	50 mV	100 mV	150 mV
5.0000 V	0.25 V	0.5 V	0.5 V / 1.25 V (< 100 Hz)	0.6 V
50.000 V	2.5 V	5 V	5 V	6 V
500.00 V	25 V	N/A	50 V	N/A
1000.0 V	50 V	N/A	300 V	N/A

U1252B/U1253B Frequency Sensitivity During Voltage Measurement
Frequency Sensitivity And Trigger Level
Input Range	Minimum Sensitivity (R.M.S. Sine Wave)		Trigger Level For Dc Coupling
(Maximum input for specified accuracy = 10 x Range or 1000 V)	20 Hz ~ 200 kHz	>200 kHz ~ 500 kHz	< 100 kHz	>100 kHz ~ 500 kHz
50.000 mV	10 mV	25 mV	10 mV	25 mV
500.00 mV	70 mV	150 mV	70 mV	150 mV
1000.0 mV	120 mV	300 mV	120 mV	300 mV
5.0000 V	0.3 V	1.2 V	0.6 V	1.5 V
50.000 V	3 V	5 V	6 V	15 V
500.00 V	30 V < 100 kHz	N/A	60 V	N/A
1000.0 V	50 V < 100 kHz	N/A	120 V	N/A

Frequency Sensitivity During Current Measurement
Input Range	Minimum Sensitivity (R.m.s. Sine Wave) 20 Hz ~ 20 Khz
500.00 μA	100 μA
5000.0 μA	250 μA
50.000 mA	10 mA
440.00 mA	25 mA
5.0000 A	1 A
10.000 A	2.5 A

[1] Input impedance: Refer to Table A on page 9.
[2] Crest factor ≤ 3.0 at full scale, 5.0 at half scale except the 1000 mV and 1000 V ranges where it is 1.5 at full scale, 3.0 at half scale. For non-sinusoidal waveform, add 0.1% of reading ± 0.3% of range.
[3] The additional error to be added as frequency >20 kHz and signal input <10% of range: 3 counts of LSD per kHz.
[4] The additional error to be added as frequency >15 kHz and signal input <10% of range: 3 counts of LSD per kHz.
[6] Input current >35 μArms.
[7] Current can be measured from 2.5 A up to 10 A continuously. An additional 0.5% needs to be added to the speciﬁed accuracy if the signal measured is in the range of 10 A ~ 20 A for 30 seconds maximum. After measuring a current of >10 A, leave the meter to cool down for twice the measuring time used before application of low current measurement.
[8] Input current < 3 Arms.
[9] For non-square wave signals, add 5 counts.
[10] AC voltage and AC current speciﬁcations are true RMS AC coupled, valid from 5% to 100% of range.

Peak Hold
Signal Width	Accuracy for DC mV/Voltage/Current
Single event > 1 ms	2% + 400 for all ranges
Repetitive > 250 μs	2% + 1000 for all ranges

Duty Cycle and Pulse Width ^[1]
Function	Mode	Range	Accuracy at Full Scale
Duty Cycle	DC Coupling	0.01% ~ 99.99%	0.3% per kHz + 0.3%
Pulse Width	500 ms	0.01 ms	0.2% + 3
Pulse Width	2000 ms	0.1 ms	0.2% + 3
[1] The positive or negative pulse width must be greater than 10 μs, and the duty cycle range should be considered. The pulse width range is determined by the frequency of the signal.

U1252B/U1253B Frequency Counter Specification
Division	Range	Resolution	Accuracy ± (% of reading + No. of Least Significant Digit		Sensitivity	Min. Input Frequency	Maximum Measurement Level
			U1252B	U1253B
1 (secondary display “-1-“)	99.999 Hz	0.001 Hz	0.02% + 3 ^[1]	0.02% + 3 ^[1]	100 mV R.M.S.	0.5 Hz	< 30 Vpp
	999.99 Hz	0.01 Hz	0.002% + 5, <985 kHz	0.002% + 5, <985 kHz
	9.9999 kHz	0.0001 kHz
	99.999 kHz	0.001 kHz
	999.99 kHz	0.01 kHz			200 mV R.M.S.
	9.9999 MHz	0.0001 MHz	0.002% + 5, < 1 MHz
100 (secondary display “-100-“)	9.9999 MHz	0.0001 MHz	0.002% + 5, < 20 MHz	0.002% + 5, < 20 MHz	400 mV R.M.S.	1 MHz
	99.999 MHz	0.001 MHz			600 mV R.M.S.

U1252B/U1253B Square Wave Output
Output ^[2]	Range	Resolution	Accuracy
Frequency	0.5, 1, 2, 5, 6 ^[6] , 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 120, 150, 200, 240, 300, 400, 480, 600, 800, 1200, 1600, 2400, 48000 Hz	0.01 Hz	0.005% + 2
Duty Cycle ^[3]	0.39% ~ 99.60%	0.390625%	0.4% of full scale ^[4]
Pulse Width ^[4]	1/Frequency	Range/256	0.2 ms + Range/256
Amplitude	Fixed 0 ~ +2.8 V	0.1 V	0.2 V

Display Rate
Function	Times/Second
ACV	7
ACV + dB	7
DCV	7
AC + DC V	2
Ω/nS	14
Diode	14
Capacitance	4 (< 100 μF)
DCI	7
ACI	7
AC + DC I	2
Temperature	6
Frequency	1 (>10 Hz)
Duty cycle/Pulse width	0.5 (>10 Hz)

Manual and Interval Data Logging
Logging Type	Maximum Data Points ^[5]
Logging Type	U1251B	U1252B	U1253B
MANUAL	100	100	100
INTERVAL	200	200	1000

Decibel (Db) Calculation
dB Base	Reference	Default Reference
1 mΩ (dBm)	1-9999 Ω	50 Ω
1 V (dBV)	1 V	1 V

[1] All frequency counters are susceptible to errors. Shielding inputs from external noise pickup is critical to minimize measurement errors. For non-square wave signals, add 5 counts.
[2] Output impedance: 3.5 kΩ maximum.
[3] The positive or negative pulse width must be greater than 50 μs for adjustment of the duty cycle or pulse width under different frequencies. Otherwise, the accuracy and range will be different from the speciﬁcations deﬁned.
[4] For signal frequencies greater than 1 kHz, an addition of 0.1% per kHz is added to the accuracy.
[5] For data logging to PC, maximum number of data points is dependent on available hard disk space.
[6] For the U1253B model.

Input Impedance
Function	Range	U1251B	U1252B/U1253B
DC Voltage	50 mV to 1000 mV	10 MΩ	10 MΩ
	5 V to 1000 V	10 MΩ (nominal), with 10 MΩ in parallel at dual display	10 MΩ (nominal), with 10 MΩ in parallel at dual display
AC Voltage	50 mV to 1000 mV	10 MΩ in parallel with < 100 pF	10 MΩ in parallel with < 100 pF
	5 V to 1000 V
AC + DC Voltage	50 mV to 1000 mV	N/A	10 MΩ
	5 V to 1000 V		10 MΩ (nominal) in parallel with 10 MΩ, < 100 pF

General Specifications
Display	Both primary and secondary displays are 5-digit on the LCD display.
	Both the primary and secondary displays offer a maximum resolution of 50,000 counts.
	Automatic polarity indication.
Connectivity	IR to USB
Power Consumption	105 mVA/420 mVA (with backlight) maximum (U1251B)
	165 mVA/480 mVA (with backlight) maximum (U1252B)
	420 mVA maximum (U1253B)
Battery Type	9 V Alkaline battery (ANSI/NEDA 1604A or IEC 6LR61)
	9 V Carbon-zinc battery (ANSI/NEDA 1604D or IEC6F22)
	7.2 V or 8.4 V Ni-MH Rechargeable battery
Battery Life	U1251B: 72 hours typical
	U1252B: 36 hours typical
	U1253B: 8 hours typical
Operating Environment	Full accuracy at –20 °C to 55 °C ; and to 80% RH for temperatures up to 35 °C, decreasing linearly to 50% RH at 55 °C
Operating Environment	0 to 2000 m altitude per IEC 61010-1 2nd Edition CAT III, 1000 V/CAT IV, 600 V
Storage Compliance	–40 °C to 70 °C with battery removed
Safety Compliance	IEC 61010-1:2001/EN610101-1:2001
Safety Compliance	Canada: CSA C22.2 No. 61010-1:2004
Measurement Category	CAT III 1000 V / CAT IV 600 V
Emc Compliance	Certiﬁed to IEC/EN 61326: 2002, CISPR 11, and equivalents for Group 1, Class A
Common Mode Rejection Ratio (CMRR)	U1251B/U1252B: >90 dB at DC, 50/60 Hz ± 0.1% (1 kW unbalanced)
Common Mode Rejection Ratio (CMRR)	U1253B: >100 dB at DC, 50/60 Hz ± 0.1% (1 kW unbalanced)
Normal Mode Rejection Ratio (NMRR)	U1251B/U1252B: >60 dB at DC, 50/60 Hz ± 0.1%
Normal Mode Rejection Ratio (NMRR)	U1253B: >90 dB at DC, 50/60 Hz ± 0.1%
Temperature Coefﬁcient	0.15 * (speciﬁed accuracy)/°C (from 20 °C to 18 °C or 28 °C to 55 °C)
Shock and Vibration	Tested to IEC/EN 60068-2
Dimensions (HxWxD)	203.5 mm x 94.4 mm x 59.0 mm
Weight	U1251B: 504±5 g with battery
Weight	U1252B/U1253B: 527±5 g with battery
Warranty	3 years for main unit
Warranty	3 months for standard accessories unless otherwise speciﬁed.

Multimeters Template
Style	Hand-Held

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Good product is very easy handling

5.0

Good product

K k Mathur on Sep 02, 2020

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Agilent U1252B Handheld Digital Multimeter, 4.5-digit

Recommended for you

Accessories

for the Agilent U1252B

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Cal Test CT2700 HV DMM Probe, 40KV DC - 1.0m, 4mm Shth P

Agilent U1252B Handheld Digital Multimeter, 4.5-digit

Do More with Just One Instrument

Find Problems Quickly

Uncompromising Ruggedness and Safety

Multimeters Template

5

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
