| Bandwidth (-3dB) |
≥ 100 MHz probe bandwidth* |
| Rise time (calculated) |
≤ 3.5 ns |
| Attenuation |
50:1 / 500:1 |
| Gain accuracy (% of reading) |
± 2% at 20-30ºC,
± 4% at 0-20ºC and 30-50ºC* |
| DC CMRR |
–70 dB at 500 VDC |
| AC CMRR |
–80 dB at 50/60 Hz
–50 dB at 1 kHz
–50 dB at 1 MHz |
| Propagation delay |
14 nsec at 50:1,
12.8 nsec at 500:1 |
| Input R//C (each input to ground) |
4 Mohm // 7 pF |
| Input R//C (between inputs) |
8 Mohm // 3.5 pF |
Max differential operating voltage
(DC+PeakAC) |
±1400 V at 500:1
±140 V at 50:1 |
Max common mode operating
voltage (RMS or DC+PeakAC) |
±1000 V (CAT II)
±600 V (CAT III) |
| Max nondestructive voltage |
±1500 VDC + Peak AC
differential mode
±1300 Vrms (CAT II) common mode |
| Output maximum voltage range |
±2.8V into 1 Mohm (500:1) |
| Scope’s input impedance |
1 Mohm AutoProbe interface |
| Output offset |
Adjustable |
| Noise referenced to input |
< 300 mVrms at 500:1
< 50 mVrms at 50:1 |
| Temperature - operating |
–10 to 50ºC |
| Temperature - non-operating |
–51 to 71ºC |
| Humidity - operating |
80% RH at 40ºC |
| Humidity - non-operating |
90% RH at 65ºC |
| Operating altitude |
2,000 m |
| Nonoperating altitude |
15,300 m |
| Vibration |
Keysight class GP and MIL-PRF-
28800F class 3 random |
| Shock |
Tip end: 400g 1/2 sine wave
AutoProbe BNC End: 50g 1/2 sine
wave Probe circuit box: Keysight class
B1 and MIL-PRF-28800F class 3 |

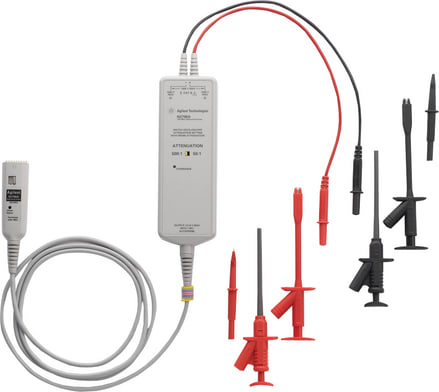

| Standard accessories |
– 2 each browser tips (black and red)
– 2 each alligator plunger clips
(black and red)
– 2 each pincer clips (black and red)
– 2 each of 4 colored ID tags
– DC offset adjustment tool
– manual |
| Safety specifications |
IEC61010-031 |
