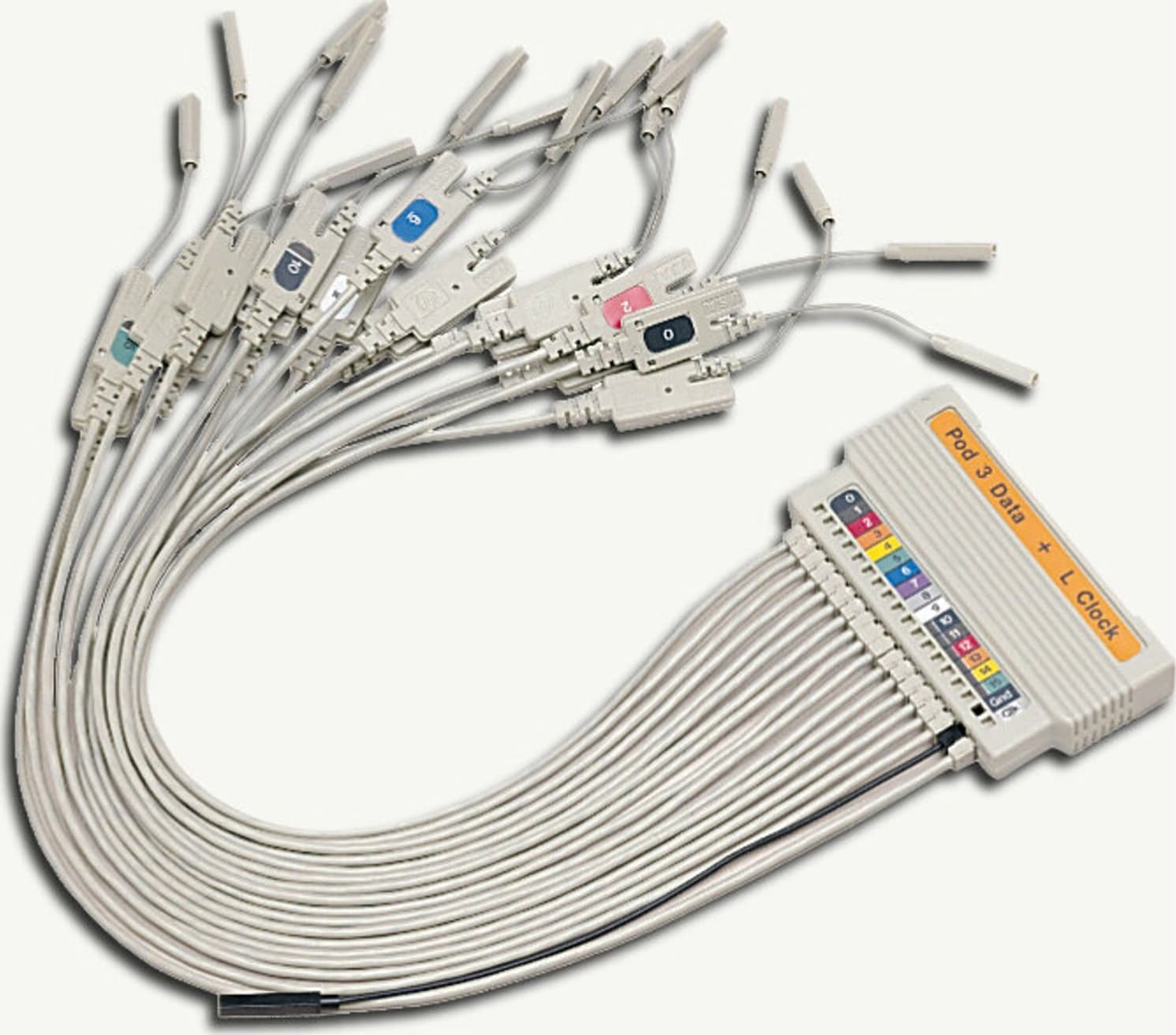

Agilent E5383B Single-ended Flying Leads with 40-pin Cable Connector

Signal Access

•     17 channels: 16 single-ended data, 1 single-ended clock

Probe Performance

•     1.5 pF equivalent load capacitance
•     Equivalent to the logic analyzer data rate the probe is attached to
•     Measure signals with as little as 600 mV p-p signal amplitude

Connectivity

•     Acquire signals from randomly located points in your target
•     Can be connected to designed-in connectors or used with the included IC test clip

Compatible With:

•     Logic analyzers with 40-pin cable connectors Logic Analyzer Cable Connectors
•     Connects to 0.63mm square pins or 0.66-0.84mm diameter round pins
