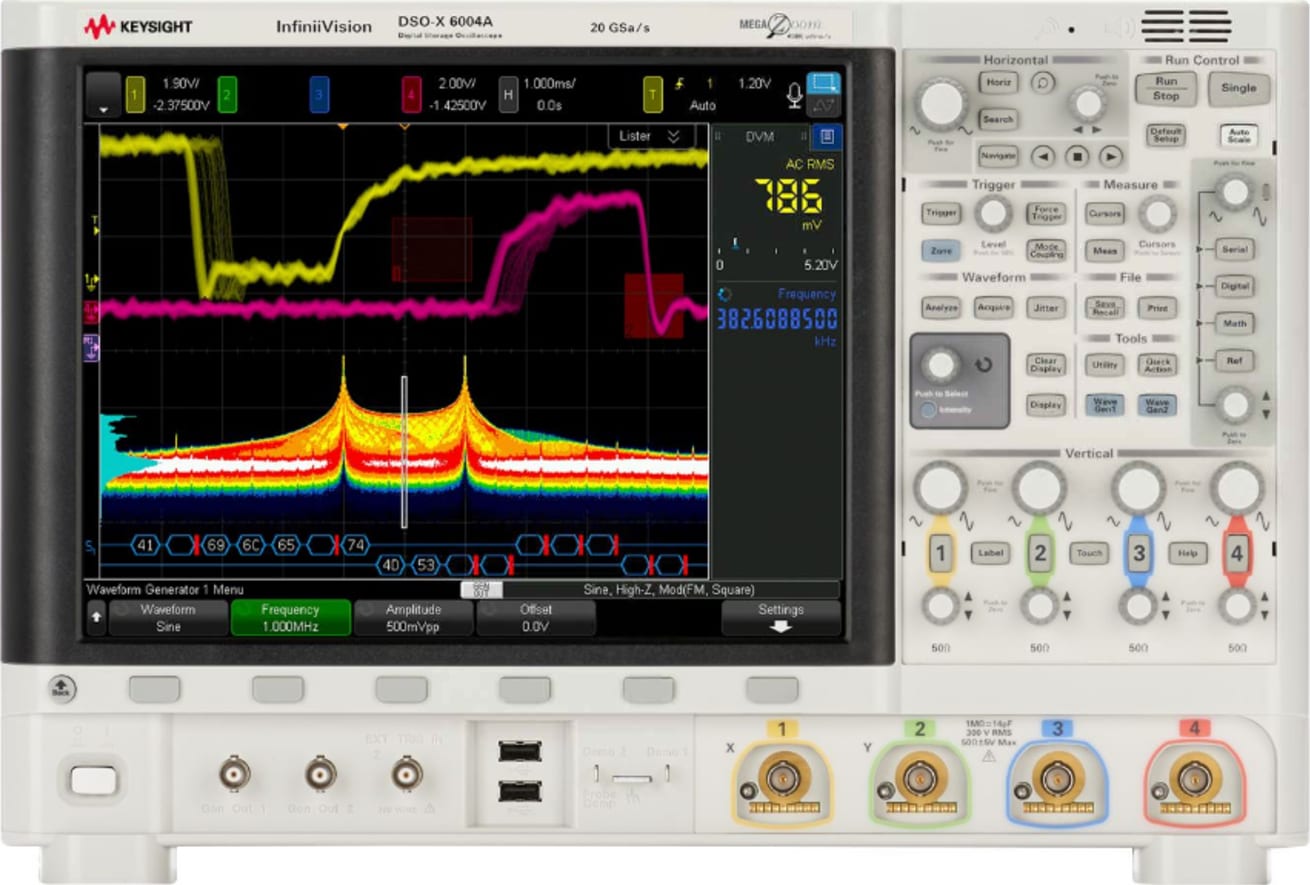

Agilent DSOX6004A InfiniiVision 6000 X-Series 4 Channel Digital Storage Oscilloscope (1GHz, Upgradeable to 6GHz, 20GS/s)
Experience the Visualization, Integration and Bandwith Performance
In the past, if you wanted an oscilloscope with exceptional performance, you could expect to pay a premium. Not anymore. The InfiniiVision 6000 X-Series oscilloscopes combine price and performance to set a new standard in the portable oscilloscope world. Imagine a 6.8-kg, 6-GHz bandwidth oscilloscope that sees and triggers on everything, helps you visualize complex waveforms and grows with your projects.
The InfiniiVision 6000 X-Series oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power and the flexibility that comes with integrated capabilities — but with portability, a familiar embedded OS user interface, and an affordable price.
New bandwidth standard
An oscilloscope’s bandwidth determines the maximum frequency content it can acquire and visualize. In today’s budget-challenged environment, engineers frequently are forced to make compromises between more bandwidth and limited budget. The 6000 X-Series delivers the answer with an affordable 6-GHz bandwidth and an incredibly low noise floor of 210 µVrms at 1 mV/div to help you make the most accurate measurements.
Performance meets price: two opposing concepts meet in a portable 6-GHz oscilloscope.
- Surprisingly low starting prices
- 210 uVrms noise floor at 1 mV/div (6 GHz)
- 115 uVrms noise floor at 1 mV/div (1 GHz)
- Standard hardware bandwidth limit control
- Only 6” (15 cm) deep, 15 lbs (6.8 kg)
New visualization standard
The new InfiniiVision 6000 X-Series’ 450,000 waveforms-per-second update rate coupled with the exclusive hardware-based InfiniiScan Zone touch trigger provide unprecedented visualization power to help you isolate your waveforms of interest. Add a whole new depth of “visualization” to your designs with features like the industry’s first 12-inch multi-touch capacitive touch screen with gesture support, the first embedded-OS-oscilloscope optional jitter/real-time eye analysis, and standard histogram and color grade.
Quickly troubleshoot your design by visualizing your challenges.
- > 450,000 wfms/sec update rate
- Hardware InfiniiScan Zone touch trigger
- 12.1-inch capacitive multi-touch screen
- Standard histogram and color grade
- Optional jitter and real-time eye diagram analysis
New integration standard
The 6000 X-Series has 6-in1 integration, combining digital channels, serial protocol analysis, a built-in dual-channel waveform generator, built-in digital multimeter, and built-in 10-digit counter with totalizer. It also integrates multi-language voice control for the first time in an oscilloscope. It weighs only 6.8 kg, measures only 15.4 cm deep, and consumes only 200 W, making the 6000 X-Series the world’s most environmentally-friendly multi-GHz portable oscilloscope.
Get the power of 6 instruments in 1, fully upgradable.
- Best-in-class oscilloscope
- Integrated 16 digital channels on MSO models
- Serial protocol analyzer (optional)
- Integrated dual-channel function/ arbitrary waveform generator (option)
- Integrated 3-digit voltmeter (optional)
- Integrated 10-digit counter and totalizer (option)
Also with multi-language voice control and enhanced color FFT with peak search.
