Agilent DSOX3COMP Computer Serial Triggering and Analysis (RS232/UART) for InfiniiVision 3000 X-Series.

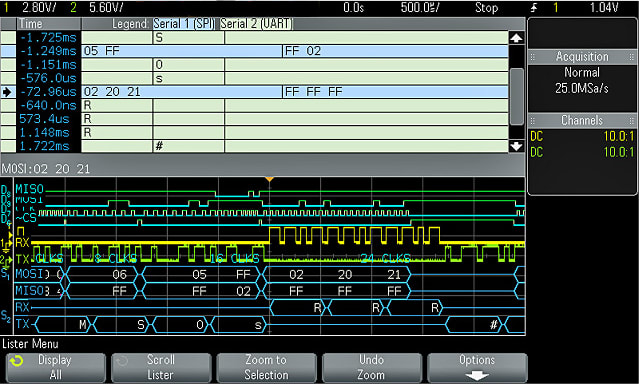

The RS-232/UART serial triggering and decode option for InfiniiVision 3000 X-Series oscilloscopes displays responsive, time-aligned, on-screen decode of RS-232/422/485 and other UART serial buses. It provides triggering capabilities on specified transmit or receive values, as well as on parity errors. Trigger on and acquire RS-232/422/485/UART signals using either scope or logic channels. Hardware-based decode means the scope stays responsive and fast when decode is turned on. Real-time counters continually count transmit and receive frames and errors.


This measurement application option works with all InfiniiVision 3000 X-Series 2 channel and 4 channel DSO and MSO models.
