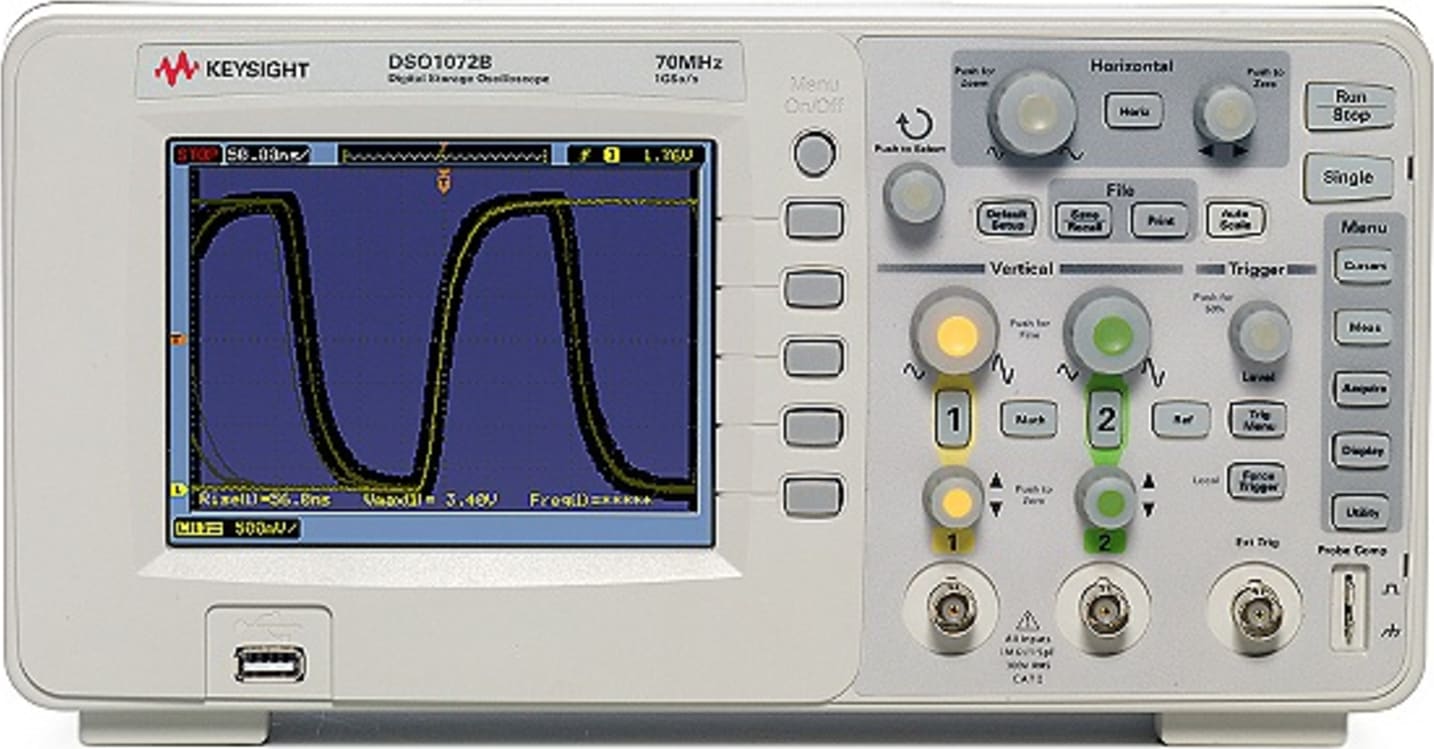

Agilent DSO1072B Oscilloscope

Name: Agilent DSO1072B Oscilloscope
Brand: Agilent
SKU: AgilentDSO1072B
Price: 847.00 USD
Availability: InStock

0 reviews | Model: Agilent DSO1072B

Images (10) | Videos (1)

Compare

Oscilloscope, 2-channel, 70 MHz, 16k memory

Powerful signal capture and display
- Up to 1 GSa/s sample rate
- Up to 16 kpts memory
- 5.7-inch color LCD display with wide viewing angle
- Simultaneous viewing of main and zoomed waveforms
Advanced measurement capability
- 23 automatic measurements
- Waveform math including FFT
- Advanced features including: sequential acquisition of up to 1000 trigger events, go/no go mask testing, and selectable digital filters
Accelerated productivity
- Built-in help menus
- Front panel overlay, GUI and manual available in 11 languages
- Free education student lab guide and professor slide set
- USB connectivity

View Product Details

List Price: $847.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Agilent DSO1072B

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(7)

In Stock!

Add to Cart

Rigol ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Catalog: ADP0150BNC

(30)

In Stock!

Add to Cart

Cal Test CT4042 Oscilloscope Accessory Kit. Get the most out of your scope with this...

Catalog: CT4042

(24)

In Stock!

Add to Cart

Aim-TTi Iprober 520 Positional Current/Field Probe DC-5MHz 5mA-20A

Catalog: 58250-0010

(5)

In Stock!

Add to Cart

Auburn P-20A 3GHz RF Probe BNC. (adaptor for SMA not included )

Catalog: P-20A

(3)

In Stock!

Add to Cart

Agilent’s 1000B Series oscilloscopes deliver the performance and features you expect in a big scope – and the portability and low price you require in a small one. We’ve enhanced the economy scope by giving you powerful signal capture and display, advanced measurement capabilities and accelerated productivity.

Bandwidth	DC to 70 MHz
Real-time sample rate	1 GSa/sec half channel interleaved, 500 MSa/sec all channels
Memory depth	16 kpts half channel interleaved, 8 kpts all channels
Channels	2
Vertical resolution	8 bits
Vertical sensitivity (range)	2 mV/div to 10 V/div
DC gain accuracy	10 mV/div to 10 V/div: ± 3.0% full scale
Vertical zoom	Vertical expand
Maximum input voltage	CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6kVpk
Dynamic range	+6 divisions from center screen
Time-base range	2 nsec/div to 50 sec/div
Selectable BW limit	20 MHz
Horizontal modes	Main (Y-T), XY, delayed zoom and roll
Input coupling	DC, AC and ground
Input impedance	1 MΩ ±2% in parallel with 15 pF ± 3 pF
Time scale accuracy	± 50 ppm over 1 ms
General characteristics
Physical size	11.9 inches W x 6.06 inches H x 5.23 inches D (30.3 cm W X 15.4 cm H X 13.3 cm D)
Weight	Net: 2.4 kgs (5.3lbs) Shipping: 3.87 kgs (8.3lbs)
Probe comp output	Frequency ~1 kHz; Amplitude ~3 V
Scope lock	Secure with a Kensington lock or looped cable through notch built into chassis
Power requirements
Line range	100-240 VAC, 50/60 Hz ± 10%
Power usage	~50 W max

Test Equipment General Attributes
Unique Features	70 Mhz Bandwidth Up to 1 GSa/s sample rate Up to 16 kpts memory 5.7-inch color LCD display with wide viewing angle Simultaneous viewing of main and zoomed waveforms
Warranty	3 YEARS
Safety Approval	CE Safety Approval ISO 9001:2008
Interfaces I/O	USB
Product Weight	2.4 LBS
Product Height	6.06 IN
Product Width	11.9 IN
Shipping Weight	3.87 KILOS (8.53 LBS)
Country of Origin	United States
