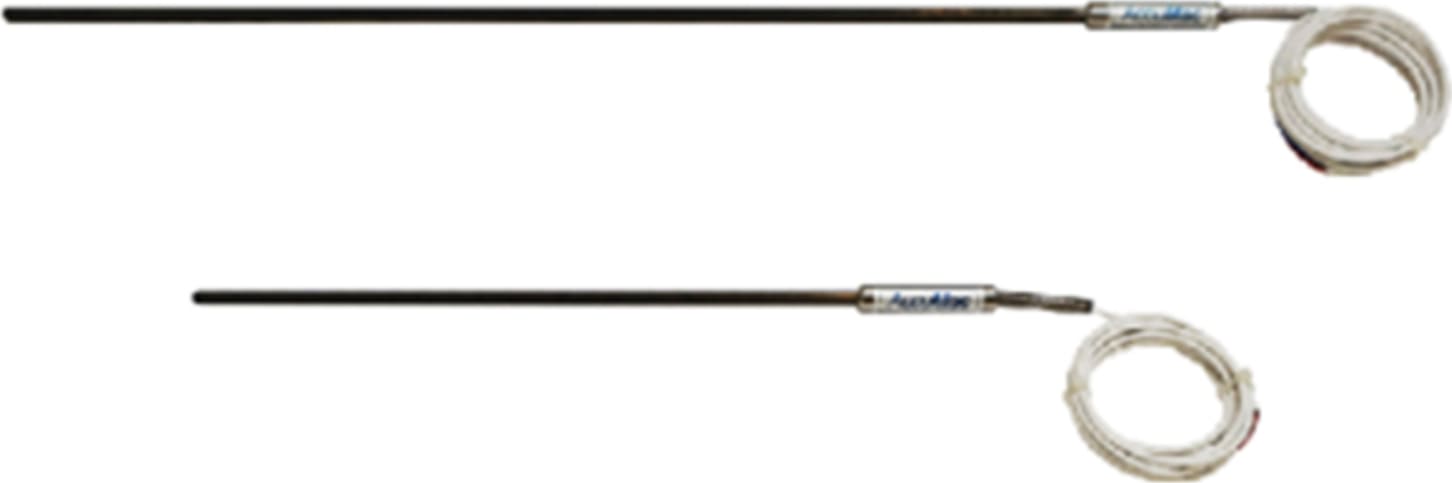

Additel AM1762-20-SP-17025 - Secondary Standard PRT

Name: Additel AM1762-20-SP-17025 - Secondary Standard PRT
Brand: Additel
SKU: AdditelAM1762-20-SP-17025
Price: 4659.00 USD
Availability: InStock

0 reviews | Model: Additel AM1762-20-SP-17025

Compare

Secondary Reference SPRT 25 Ohm - 20 inch x 1/4 inch -200 Degrees C to 670 Degrees C, spade connections, incl 17025 accredited calibration

Secondary Reference SPRT 25 - 20 inch x 1/4 inch
-200 Degrees C to 670 Degrees C
Spade Connections
Includes 17025 Accredited Calibration

View Product Details

List Price: $4,659.00

In Stock:

View Payment Options

Recommended for you

General Specifications
AM1762 Series
Temperature Range	200 °C to 670 °C
Resistance at 0℃	Nominal 25 Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Accuracy	±0.007 °C at -196 °C ±0.006 °C at 0.01 °C ±0.015 °C at 420 °C ±0.025 °C at 660 °C
Drift	±0.004 °C at TPW after 100 hours at 661 °C
Short Term Stability	±0.002 °C
Thermal Shock	±0.002 °C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	N/A
Self-heating	0.0015 °C at 1 mA current
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Inconeltm
Dimension	AM1762-12-SP 0.25 in dia X 12 in (6.35 mm X 305 mm) AM1762-20-SP 0.25 in dia X 20 in (6.35 mm X 500 mm)
External Leads	Teflontm – insulated copper wire, 4 leads, 2.5 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range	-50 °C to 180° C
Calibration	NIST traceable calibration w/ data included

Tech Specs

Accessories/Probes/Temperature Probes Template
Max Temperature	670 C
Min Temperature	-200 C (-328 F)
Probe Length	20 IN
Test Equipment General Attributes
Product Length	20 IN
Product Width	0.25 IN
HTS/Schedule B Number	9025.80.1000
