Additel AM1730-BEND-ADT-17025 - 100 Secondary PRT, -40 to 420 Degrees C

Name: Additel AM1730-BEND-ADT-17025 - 100 Secondary PRT, -40 to 420 Degrees C
Brand: Additel
SKU: AdditelAM1730-BEND-ADT-17025
Price: 1865.00 USD
Availability: InStock

0 reviews | Model: Additel AM1730-BEND-ADT-17025

Compare

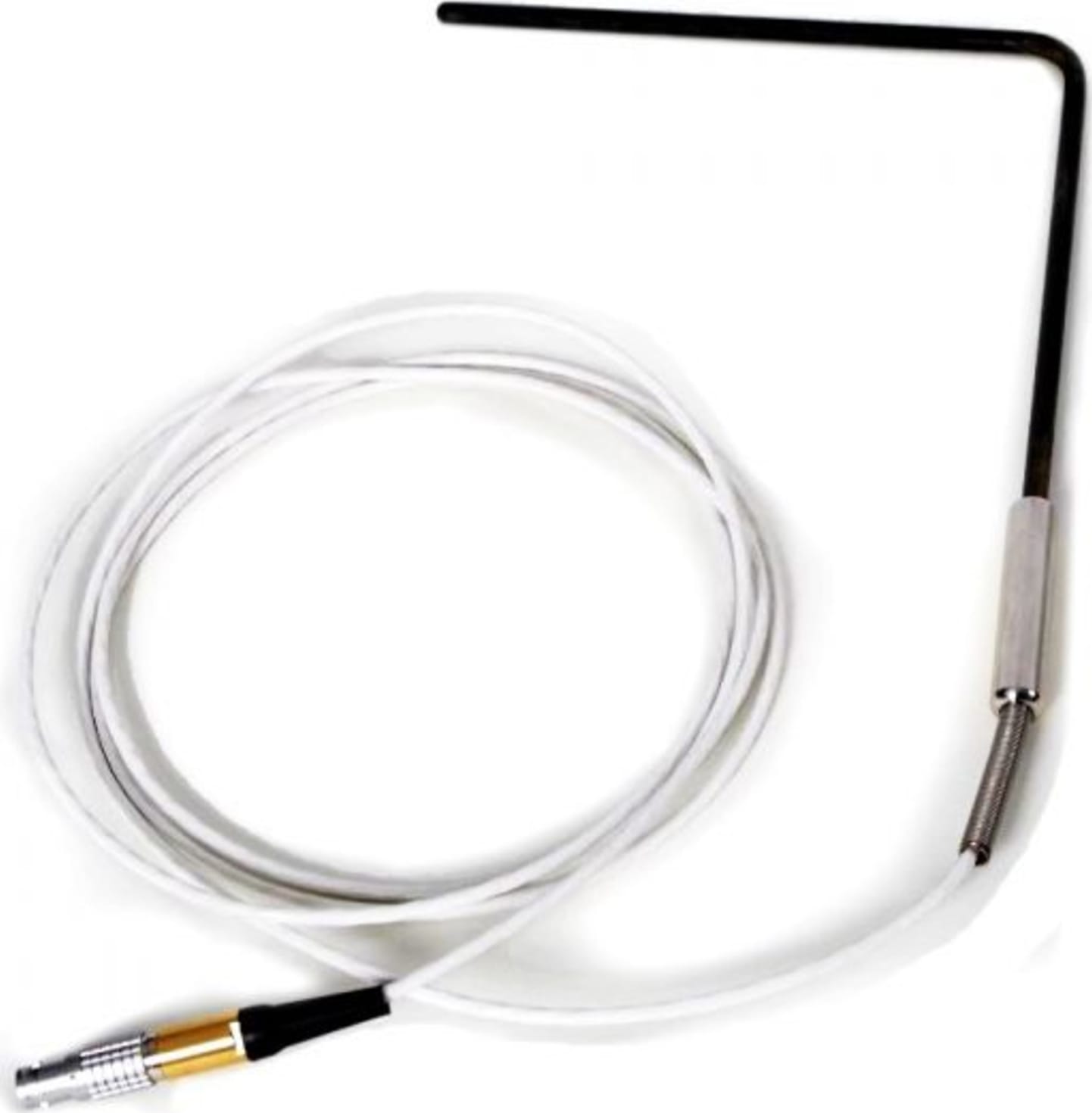

100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch, 90 Degrees Bend at 9.75 from tip, w/Lemo smart connector, including accredited calibration.

100 Secondary PRT
Temperature range: -40 to 420 °C
1/4 inch, 90 Degrees Bend at 9.75 from tip
With Lemo smart connector, including accredited calibration

View Product Details

List Price: $1,865.00

In Stock:

View Payment Options

Recommended for you

AM1730 Series Specifications
Temperature Range	-200°C to 420°C
Resistance at 0℃	Nominal 100 Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Accuracy	±0.025°C at -196°C ±0.015°C at 0.01°C ±0.035°C at 420°C
Drift	±0.01°C at TPW after 100 hours at 420°C
Short Term Stability	±0.007°C
Thermal Shock	±0.005°C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C
Self-heating	50 mW/°C
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Inconel
Dimension	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflon - insulated copper wire, 4 leads, 2.5 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range	-50°C to 180°C *Handle temperature outside this range will cause damage to the probe.
Optional Calibration	NIST traceable calibration and data available per request

Tech Specs

Accessories/Probes/Temperature Probes Template
Max Temperature	420 C
Min Temperature	-40 F
Probe Length	9.75 IN
Test Equipment General Attributes
Product Length	9.75 IN
Product Width	0.25 IN
Shipping Weight	1.0 LBS
HTS/Schedule B Number	9025.80.1000
