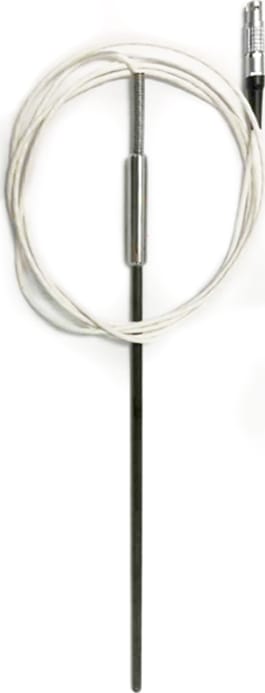

Additel AM1730-12-SP-17025 - 100 Secondary PRT, -200 to 420 Degrees C

Name: Additel AM1730-12-SP-17025 - 100 Secondary PRT, -200 to 420 Degrees C
Brand: Additel
SKU: AdditelAM1730-12-SP-17025
Price: 1705.00 USD
Availability: InStock

0 reviews | Model: Additel AM1730-12-SP-17025

Compare

100 Ohm Secondary PRT, -200 to 420 Degrees C, 1/4 inch X12 inch, w/spade lugs, including accredited calibration.

100 Secondary PRT
Temperature range: -200 to 420 °C
1/4 inch X12 inch
With spade lugs, including accredited calibration

View Product Details

Your Price: $1,705.00

Sign-in for EDU Pricing!

View Payment Options

Request Quote

Items in This Series



Product	Additel AM1730-12-SP-17025 100 Ohm Secondary PRT, -200 to 420 Degrees C, 1/4 inch X12 inch ...	Additel AM1730-9-SP 100 Ohm Secondary PRT, -200 to 420 Degrees C, 3/16 inch X9 inch, w/spa ...	Additel AM1730-12-SP 100 Ohm Secondary PRT, -200 to 420 Degrees C, 1/4 inch X12 inch, w/sp ...	Additel AM1730-9-ADT 100 Ohm Secondary PRT, -200 to 420 Degrees C, 3/16 inch X9 inch, w/Le ...	Additel AM1730-BEND-SP 100 Ohm Secondary PRT, -200 to 420 Degrees C, 1/4 inch, 90 Degrees ...	Additel AM1730-9-SP-17025 100 Ohm Secondary PRT, -200 to 420 Degrees C, 3/16 inch X9 inch, ...	Additel AM1730-9-ADT-17025 100 Ohm Secondary PRT, -200 to 420 Degrees C, 3/16 inch X9 inch ...	Additel AM1730-12-ADT-17025 100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch X12 inch ...	Additel AM1730-BEND-ADT-17025 100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch, 90 De ...	Additel AM1730-BEND-SP-17025 100 Ohm Secondary PRT, -200 to 420 Degrees C, 1/4 inch, 90 De ...
Price	$1,705.00	$1,425.00	$1,425.00	$1,425.00	$1,601.00	$1,705.00	$1,705.00	$1,705.00	$1,865.00	$1,865.00
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time
Max Temperature	420 C	-200 C	420 C	-200 C	420 C	-200 C	-200 C	420 C	420 C	420 C
Min Temperature	-200 F	420 C (788 F)	-200 C (-328 F)	420 C (788 F)	-200 F	420 C (788 F)	420 C (788 F)	-40 C (-40 F)	-40 F	-200 F
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

AM1730 Series Specifications
Temperature Range	-200°C to 420°C
Resistance at 0℃	Nominal 100 Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Accuracy	±0.025°C at -196°C ±0.015°C at 0.01°C ±0.035°C at 420°C
Drift	±0.01°C at TPW after 100 hours at 420°C
Short Term Stability	±0.007°C
Thermal Shock	±0.005°C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C
Self-heating	50 mW/°C
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Inconel
External Leads	Teflontm -insulated copper wire, 4 leads, 2.5 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range	-50°C to 180°C *Handle temperature outside this range will cause damage to the probe.
Optional Calibration	NIST traceable calibration and data available per request

Accessories/Probes/Temperature Probes Template
Max Temperature	420 C
Min Temperature	-200 F
Probe Length	420 IN
Lead Length	-200 MM
Test Equipment General Attributes
Product Length	12 IN
Product Width	0.25 IN
HTS/Schedule B Number	9025.80.1000
