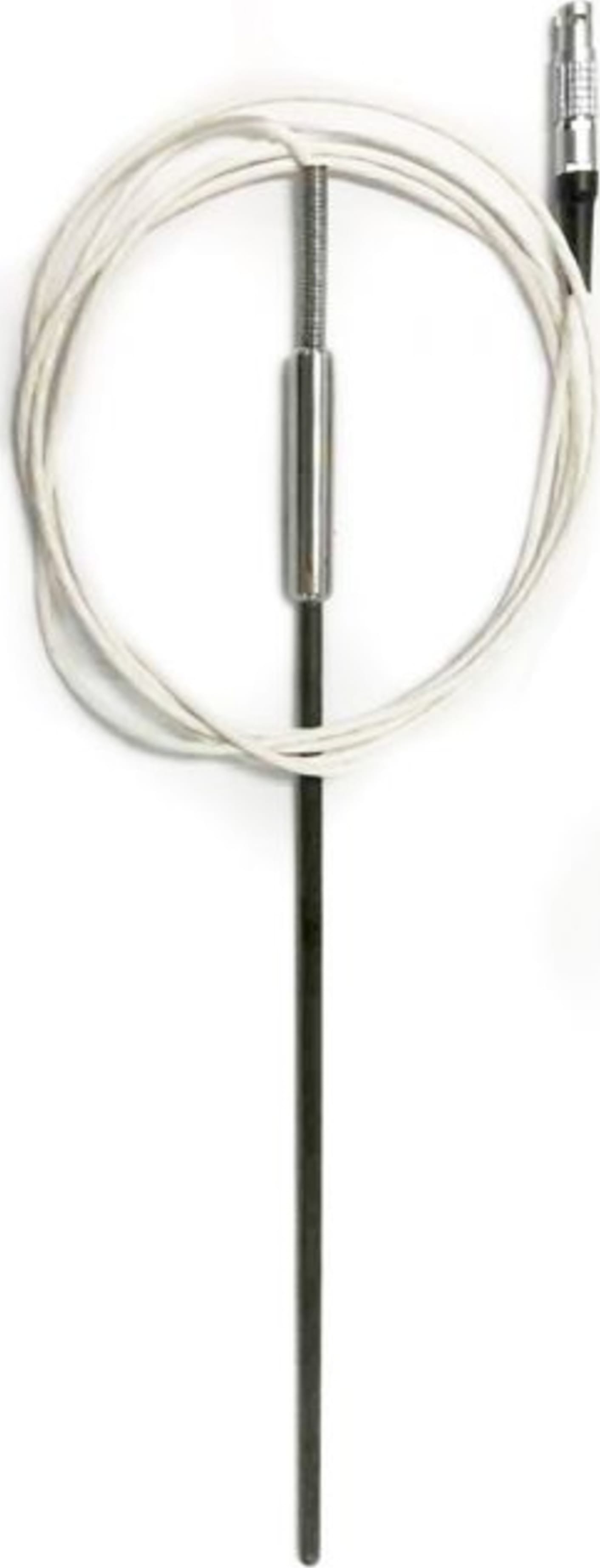

Additel AM1730-12-ADT - Secondary PRT, Dry Well Connector

Name: Additel AM1730-12-ADT - Secondary PRT, Dry Well Connector
Brand: Additel
SKU: AdditelAM1730-12-ADT
Price: 1425.00 USD
Availability: InStock

0 reviews | Model: Additel AM1730-12-ADT

Compare

100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch X12 inch, w/Lemo smart connector, NIST traceable calibration included

100 Secondary PRT
-45 to 420 deg C
1/4 inchX12 inch
With Lemo smart connector

View Product Details

Your Price: $1,425.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Additel AM1730-12-ADT 100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch X12 inch, w/Le ...	Additel AM1710-12-ADT 100 Ohm Secondary PRT, -40 to 160 Degrees C, 1/4 inch X12 inch, w/Le ...	Additel AM1710-BEND-ADT 100 Ohm Secondary PRT, -40 to 160 Degrees C, 1/4 inch, 90 Degrees ...	Additel AM1751-BEND-ADT 100 Ohm Secondary PRT, -40 to 660 Degrees C, 1/4 inch, 90 Degrees ...	Additel AM1751-12-ADT 100 Ohm Secondary PRT, -40 to 660 Degrees C, 1/4 inch X12 inch, w/Le ...	Additel AM1730-BEND-ADT 100 Ohm Secondary PRT, -40 to 420 Degrees C, 1/4 inch, 90 Degrees ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

General Specifications
	AM1710 Series	AM1730 Series	AM1751 Series
Temperature Range	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C
Resistance at 0°C	Nominal 100 Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Accuracy	±0.025°C at -40°C ±0.015°C at 0.01°C ±0.025°C at 160°C	±0.025°C at -196°C ±0.015°C at 0.01°C ±0.035°C at 420°C	±0.025°C at -196°C ±0.015°C at 0.01°C ±0.035°C at 420°C ±0.05°C at 661°C
Drift	0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C
Thermal Shock	±0.005°C after 10 times thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C
Self-heating	50 mW/°C
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconel
Dimensions	AM1710-12-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm)	AM1730-12-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm)	AM1751-12-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm)
	AM1710-BEND-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	AM1730-BEND-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	AM1751-BEND-ADT 0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflon - insulated copper wire, 4 leads, 2.5 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range¹	-50°C to 160°C	-50°C to 180°C
Optional Calibration	NIST traceable calibration and data available per request
Note: [¹] Handle temperature outside this range will cause damage to the probe.
