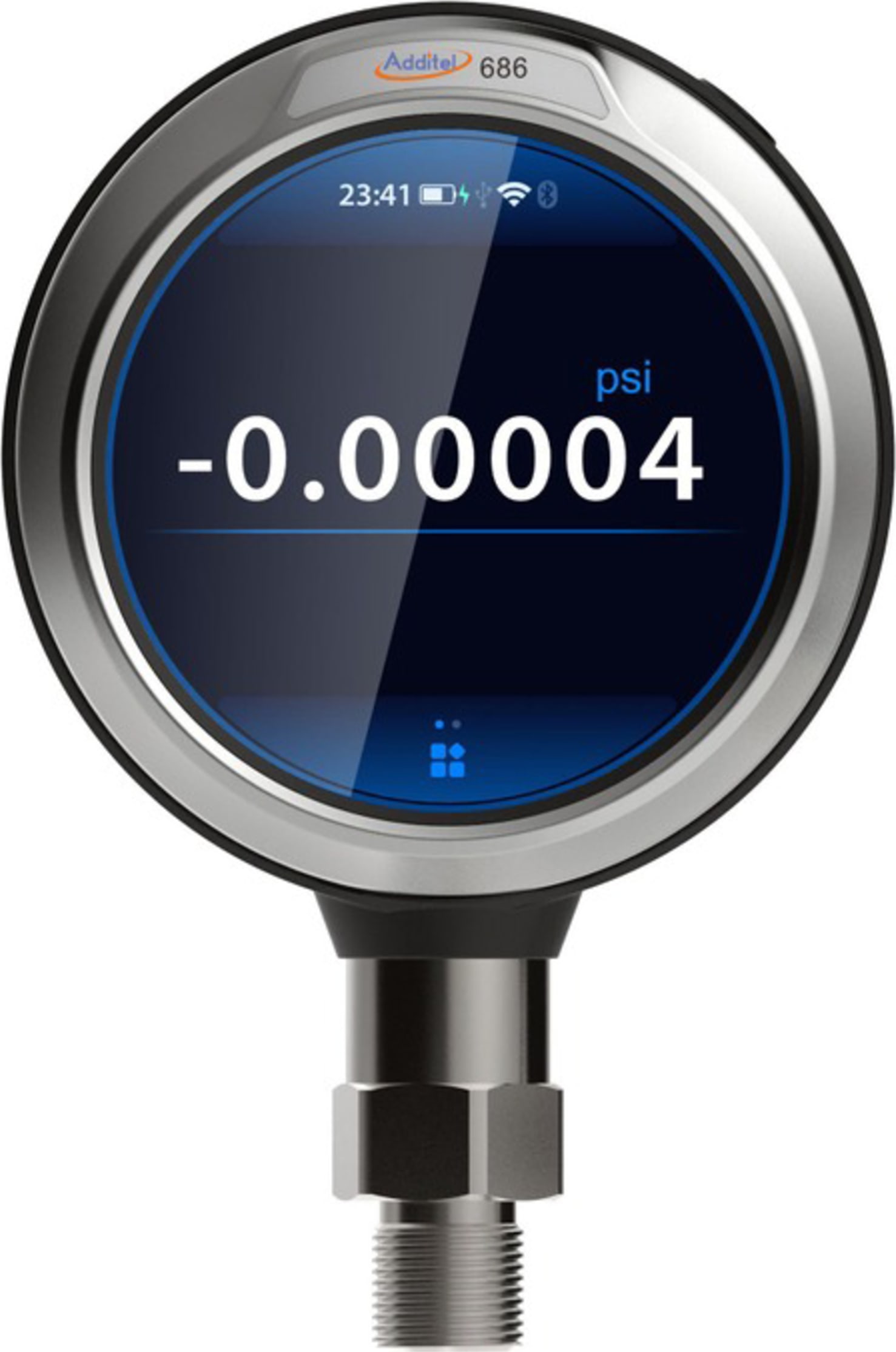

Additel ADT686 - Advanced Digital Pressure Test Gauge

Ordering guide (please see the Datasheet in the Manuals/Guides section of this page for a full list of pressure ranges*):

Model - Accuracy - Pressure Range P/N Range - Range Type - Pressure Port Type - Data Logging - Comm Port (Optional)

Example: ADT685-02-GP300-PSI-N-DL-WIFI

Additel's 686 Advanced Digital Pressure Gauges will redefine the way you want to measure pressure! With wireless remote connectivity, microprocessor technology, state-of-the-art silicon pressure sensors, and optional onboard storage capacity, these attractive and fully temperature compensated gauges will provide the performance, durability, and reliability you've come to expect from genuine Additel products.

The all-new modern menu structure and control interface brings a new and refreshing experience to pressure calibration work. This completely new way of interfacing with our gauges makes the ADT686 a real pleasure to use. The handy Additel Link app gives users the ability to remotely monitor these gauges from the convenience of a personal device or cell phone. With an abundance of options to choose from, you can configure these pressure gauges to precisely fit your specific pressure calibration and measurement needs. With an IP67 rating, you will find that these amazing pressure gauges can be used in the field or laboratory to meet the most demanding pressure calibration needs.

A Modern User Experience:

Additel has gone above and beyond to provide our customers with the best possible experience when using these new and revolutionary gauges. The 3.4-inch color touchscreen display comes with a protective replaceable tempered glass screen and is a refreshing update to the traditional push-button or blister pad interface. With an easy-to-navigate menu structure and fast touchscreen response, you will find these ADT686 gauges simple yet powerful to use. The easy-to-read display isn't just fun to use, but it's built rugged to handle the demands of a busy technician in the field or the laboratory.

Every Model Measures Gauge or Absolute Pressure:

The Additel 686 Digital Pressure Gauges contain a built-in barometer sensor which allows for the pressure reading to display in gauge pressure or absolute pressure with a simple menu selection. The built-in barometer is calibrated and certified to an accuracy of 50 Pa. With this unique feature, the ADT686 can be a solution for three common applications: gauge pressure measurement, absolute pressure measurement, and barometric or atmosphere pressure measurement. Having an Additel as your gauge will always give you the ability to do more with one instrument.
