Additel ADT160A-02-GP6K-PSI-N2 Digital Pressure Module

Name: Additel ADT160A-02-GP6K-PSI-N2 Digital Pressure Module
Brand: Additel
SKU: AdditelADT160A-02-GP6K-PSI-N2
Price: 1379.00 USD
Availability: InStock

0 reviews | Model: Additel ADT160A-02-GP6K-PSI-N2

Compare

Digital Pressure module, 0.02%FS, 0 to 6000 psi, gauge pressure, 1/2NPT M

Model: ADT160A
Accuracy: 0.02%FS of full scale
Pressure range P/N: 0 to 6000 psi
Range type: Range by psi
Pressure port type: 1/2NPT M
Pressure ranges to 60,000 psi (4,200 bar)
Precision accuracy to 0.01% RD
Pressure measurement accuracy of 0.02% FS
Fully temperature compensated accuracy
ISO 17025-accredited calibration w/data included

View Product Details

List Price: $1,379.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cables - Misc

for the Additel ADT160A-02-GP6K-PSI-N2

Additel 9060 Pressure module connection cable

Catalog: 9060

(0)

In Stock!

Add to Cart

Additel 160A Intelligent Digital Pressure Modules Series

Model: ADT160A
Accuracy: 0.02%FS of full scale
Pressure range P/N: 0 to 6000 psi
Range type: Range by psi
Pressure port type: 1/2NPT M

The 160A series Digital Pressure Modules (IDPM) are specially designed as external pressure module for 761 automated pressure calibrator, 222A Multifunction Process Calibrators and 223A Documenting Process Calibrators.

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160 series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly. Designed as external pressure module for Additel 760 automatic handheld pressure calibrator, Additel 761 automated pressure calibrator and Additel 222A, Additel 223A and Additel 761 calibrators, the Additel 160 IDPM is unmatched in performance and reliability.

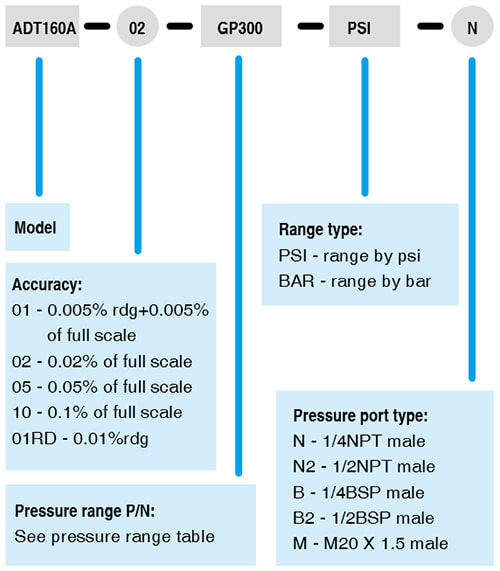

Ordering Information

	Standard Accuracy			Precision Accuracy
	CPXXX	GPXXX	DPXXX	APXXQ	APXXR
Operating temperature	-10°C to 50°C (14°F to 122°F)			15°C to 25°C (59°F to 77°F)	10°C to 30°C (50°F to 86°F)
Storage temperature	-20°C to 70°C (-4°F to 158°F)			-20°C to 70°C (-4°F to 158°F)
Relative humidity	95% RH			90% RH
Pressure connections (for external use only)	1/4NPT, 1/2NPT, 1/4BSP, 1/2BPS, M20x15		Festo 6mm	1/4NPT, 1/2NPT, 1/4BSP, 1/2BPS, M20x15
Enclosure (for external use only)	SS enclosure
Dimensions (Dia x H)	33 mm x 123 mm (1.3” x 4.84”)			Depends on the model	44 mm x 195 mm (1.7” x7.7”)
Weight	0.4 kg (0.99 lb)			Depends on the model	0.7 kg (1.5 lb)
Warranty	1 Year			1 Year	1 Year

Gauge Pressure[1]
P/N	Pressure Range		Media[2]	Accuracy (%FS)	Burst Pressure
P/N	(inH2O)	(mbar)	Media[2]	Accuracy (%FS)	Burst Pressure
V15	-15	-1	G	0.02	3×
GP2	2	0.16	G	0.05	3×
GP5	5	0.35	G	0.05	3×
GP10	10	0.7	G	0.02	3×
GP15	15	1	G	0.02	3×
GP30	30	2	G	0.02	3×
GP50	50	3.5	G , L	0.02	3×
GP100	100	7	G , L	0.02	3×
GP150	150	10	G , L	0.02	3×
GP300	300	20	G , L	0.02	3×
GP500	500	35	G , L	0.02	3×
GP600	600	40	G , L	0.02	3×
GP1K	1000	70	G , L	0.02	3×
GP2K	2000	140	G , L	0.02	3×
GP3K	3000	200	G , L	0.02	3×
GP5K	5000	350	G , L	0.02	3×
GP10K	10000	700	G , L	0.02	2×
GP15K	15000	1000	G , L	0.05	2x
GP20K	20000	1400	G , L	0.05	1.5x
GP25K	25000	1600	G , L	0.1	1.5x
GP30K	30000	2000	G , L	0.1	1.5x
GP36K	36000	2500	G , L	0.1	1.5x
GP40K	40000	2800	G , L	0.1	1.35x
GP50K	50000	3500	G , L	0.1	1.2x
GP60K	60000	4200	G , L	0.1	1.1x
[1]. Sealed gauge pressure for above 1000 psi [2]. G=Gas, L=Liquid

Differential Pressure
P/N	Pressure Range[1]		Media	Accuracy (%FS)	Burst Pressure	Static Pressure Range
P/N	(inH2O)	(mbar)	Media	Accuracy (%FS)	Burst Pressure	Static Pressure Range
DP1	±1	±2.5	G	0.05[2]	100×	±10 psi
DP2	±2	±5.0	G	0.05[2]	100×	±10 psi
DP5	±5	±10	G	0.05[2]	50×	±10 psi
DP10	±10	±25	G	0.05[2]	20×	±10 psi
DP20	±20	±50	G	0.05	20×	±10 psi
DP30	±30	±75	G	0.05	20×	±10 psi
DP50	±50	±160	G	0.05	3×	±10 psi
DP150	±150	±350	G	0.02	3×	50 psi
DP300	±300	±700	G	0.02	3×	50 psi
[1] FS specification applies to the span of the range. Accuracy includes 1 year stability. [2] 0.05%FS accuracy (incl 6 months stability). One year accuracy is 0.05%FS calibration accuracy combined with 0.05%FS one year stability.

Compound Pressure
P/N	Pressure Range		Media	Accuracy	Pressure Rating
P/N	psig	bar.g	Media	Accuracy	Burst	Over Pressure
CP2	±2	±0.16	G	0.05% FS	3x	1.2x
CP5	±5	±0.35	G	0.02% FS	3x	1.2x
CP10	±10	±0.7	G	0.02% FS	3x	1.2x
CP15	±15	±1.0	G	0.02% FS	3x	1.2x
CP30	-15 to 30	-1 to 2.0	G	0.02% FS	3x	1.2x
CP50	-15 to 50	-1 to 3.5	G	0.02% FS	3x	1.2x
CP100	-15 to 100	-1 to 7.0	G,L	0.02% FS	3x	1.2x
CP300	-15 to 300	-1 to 20	G,L	0.02% FS	3x	1.2x
CP500	-15 to 500	-1 to 35	G,L	0.02% FS	3x	1.2x
CP600	-15 to 600	-1 to 40	G,L	0.02% FS	3x	1.2x
CP1K	-15 to 1,000	-1 to 70	G,L	0.02% FS	3x	1.2x
CP2K	-15 to 2,000	-1 to 140	G,L	0.02% FS	3x	1.2x
CP3K	-15 to 3,000	-1 to 200	G,L	0.02% FS	3x	1.2x
CP5K	-15 to 5,000	-1 to 350	G,L	0.02% FS	3x	1.2x
CP10K	-15 to 10,000	-1 to 700	G,L	0.02% FS	2x	1.2x

Absolute Pressure
P/N	Pressure Range		Media	Accuracy (%FS)	Burst Pressure
P/N	psi	bar	Media	Accuracy (%FS)	Burst Pressure
AP5	5	0.35	G	0.1	3×
AP10	10	0.7	G	0.1	3×
AP15	15	1	G	0.1	3×
AP30	30	2	G	0.1	3×
AP50	50	3.5	G	0.1	3×
AP100	100	7	G , L	0.05 (0.1)	3×
AP300	300	20	G , L	0.05 (0.1)	3×
AP500	500	35	G , L	0.05 (0.1)	3×
AP1K	1000	70	G , L	0.05 (0.1)	3×
AP3K	3000	200	G , L	0.05 (0.1)	3×
AP5K	5000	350	G , L	0.05 (0.1)	3×

Precision Sensors[1] - Absolute Pressure
P/N	Pressure Range		Media	Accuracy[2]	Pressure Rating
P/N	psia	bar.a	Media	Accuracy[2]	Burst	Over Pressure
AP15R	0 to 15	0 to 1	G	0.01% FS	2x	1.2x
AP30R	0 to 30	0 to 2	G	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP50R	0 to 50	0 to 3.5	G	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP100R	0 to 115	0 to 8	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP300R	0 to 315	0 to 21	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP500R	0 to 515	0 to 36	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP1KR	0 to 1,015	0 to 71	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x
AP2KQ	0 to 2,015	0 to 141	G	0.005% rdg + 0.005% FS	3x	1.1x
AP3KQ	0 to 3,015	0 to 201	G	0.005% rdg + 0.005% FS	3x	1.1x
AP6KQ	0 to 6,000	0 to 400	G,L	0.01% FS	3x	1.2x
AP10KQ	0 to 10,000	0 to 700	G,L	0.01% FS	2x	1.2x
AP15KQ	0 to 15,000	0 to 1000	G,L	0.01% FS	2x	1.2x
AP20KQ	0 to 20,000	0 to 1400	G,L	0.01% FS	2x	1.2x
AP30KQ	0 to 30,000	0 to 2000	G,L	0.02% FS	1.5x	1.1x
AP40KQ	0 to 40,000	0 to 2800	G,L	0.02% FS	1.5x	1.1x
[1] Contact Additel for other range options. [2] Accuracy includes calibration uncertainty, linearity and long-term stability.

Barometric Pressure
P/N	Pressure Range		Media	Accuracy	Burst Pressure
	Low	High
BP	60 kPa	110 kPa	G	40 Pa	3×

Tech Specs

Accessories/Pressure Calibrator Modules Template
Resolution (pressure)	6000 psi
Gauge	Yes
Test Equipment General Attributes
Shipping Weight	1.00 LBS
HTS/Schedule B Number	9026.20.4000
