A4900 vibrio Mp
The A4900 Vibrio MP contains more measurement options than the standard Vibrio M. These additional options are designed for measurement with contactless proximity sensors, which are usually used on protection systems. The Vibrio MP is connected to the buffered outputs of these systems.
A data collector with free software. Set up routes, trend and set alarms. View waveforms, FFT graphs.
The A4900- Vibrio M allows the user to perform vibration measurements including lubrication assessment, identification of mechanical defects, and bearing conditions. Many of these measurements are processed automatically by a unique analysis software created by Adash.
The A4900- Vibrio M has 4MB of memory for storage that allows the user to perform route and off-route measurements. It comes with coiled cables, magnet, and a quality piezoelectric sensor. DDS 2014 is the analysis software that can be downloaded for the Vibrio M free of charge. This unit is ideal for maintenance workers for routine inspection and service.

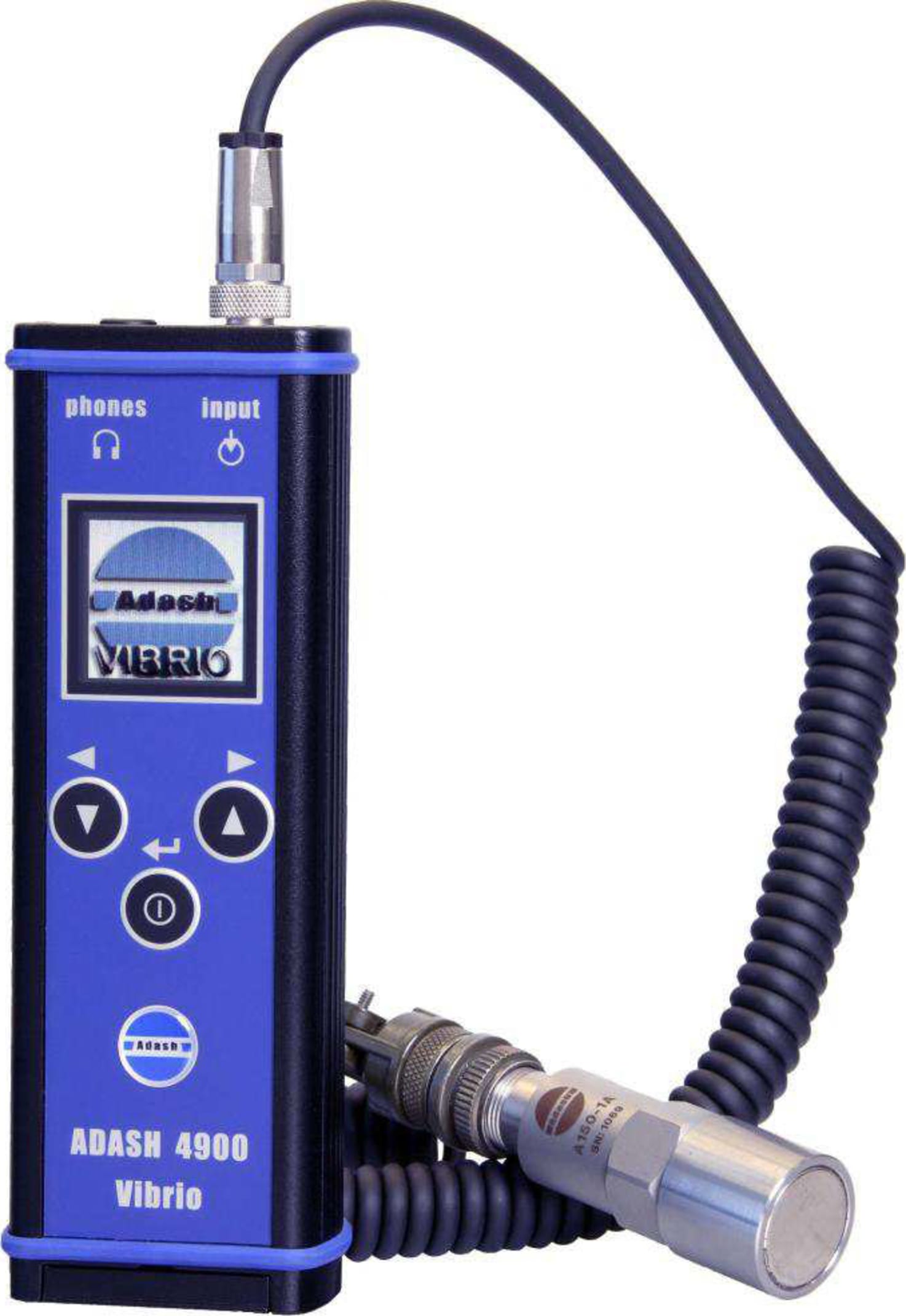

A4900 Vibrio MP Pro Unit
The A4900 - Vibrio M instrument allows you to perform all basic vibro-diagnostics measurements such as bearing condition, identification of mechanical faults and lubrication assessment.
The A4900 - Vibrio M is equipped with 4MB memory for data storage. Data memory allows you to perform off-route and route measurements. New professional software DDS 2014 for Vibrio M can be downloaded from Adash website free of charge.
Expert system for automatic machine fault detection is included.
Applications and Key Features
- Machine vibration diagnostics
- Bearing diagnostics
- Lubrication diagnostics
- Route measurements (4MB memory)
- Service activities
- Product Inspection
- Ex version available
- Wideband RMS or PEAK measurements of acceleration, velocity and displacement
- Velocity measurement from 10Hz, optionally from 1 Hz for low speed machines
- Time signals measurement
- Spectrum FFT analysis
- Measurement in frequency bands for bearing diagnostics
- Store data and perform route measurements
- Built-in ISO 10816 limits
- Fault Source Identification and Diagnostics Tool
- Headphones for "listening to vibration"
- Built-in Infrared Thermometer
- Built-in stroboscope lamp
- Built-in torch
- Detection of machine and bearing conditions
- Detection of machine speed
- Overload indicator, sensor fault and cable fault indicators
The Stroboscope
The built-in stroboscope inside the A4900 - Vibrio M represents a unique innovation in the handheld vibration analyzer field. We use high lighting LED technology, and the low power consumption enables us to use the stroboscope in our instrument. Stroboscope or stroboscopic lamp, commonly called a strobe, is a device which produces regular flashes of light. When we have to study or visually inspect machinery with cyclically moving parts, then the stroboscope enables the user to freeze the movement (usually rotation). Imagine in the simplest form, a rotating disc with one-spaced hole. When the flashes of light are synchronized with the rotational speed of the disc, then just one flash is made during one rotation. It means, the disc is lightened up when the hole is always in the same position. It is an illusion of frozen movement. See the Menu chapter for details.
The Torch
You sometimes need to inspect or read the dark corners. For that purpose, the A4900 - Vibrio M has a built-in torch in the front panel. See the Menu chapter for details.
