Adash America A4404-CM A4404-CM Condition Monitoring Software Package

Name: Adash America A4404-CM A4404-CM Condition Monitoring Software Package
Brand: Adash America
SKU: AdashA4404-CM
Price: 13995.00 USD
Availability: InStock

0 reviews | Model: Adash America A4404-CM

Compare

A4404-CM Condition Monitoring Software Package. Additional options include DDS2014Pro Software for route and condition monitoring, One accelerometer, 6 ft. coiled sensor cable, flat and curved magnetic sensor bases.

A4404-CM A4404-CM Condition Monitoring Software Package
Input channels: 4 AC, ICP ® (On/Off), 4 DC, 1 TACH
VA4 Pro - Virtual Unit software

View Product Details

In Stock:

View Payment Options

Recommended for you

Adash America A4404-CM A4404-CM Condition Monitoring Software Package

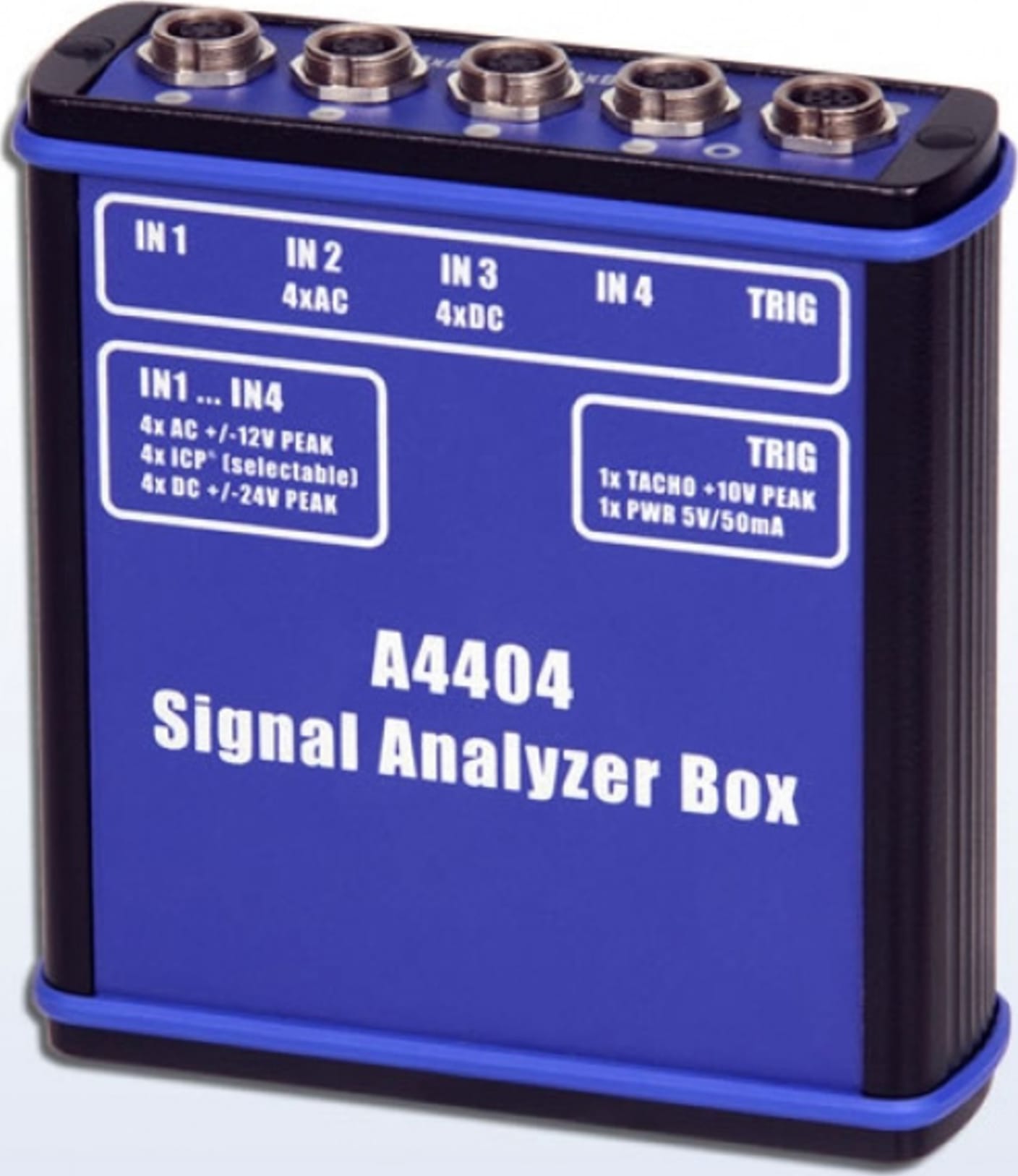

The A4404 - SAB is a pocket size 4 channel vibration analyzer.

Connect the A4404 - SAB to any computer by USB and use the unit for data analysing, collecting and the recording of vibration signals. The instrument is enhanced by modules for dynamic balancing, measurement of run up and cost down and acoustic measurement mode. The instrument is equipped with an expert system developed by Adash, that automatically detects machinery faults.

The instrument is powered directly by USB connection so no external power is needed.

Adash 4404 – SAB Technical Specifications
Input channels	• 4 AC, ICP® power supply on/off • 4 DC for process values • 1 TACHO for external trigger
Input range	• AC +/- 12 V peak-peak • DC +/- 24 V
AD conversion	• 24 bit, 64 bit internal signal processing No AutoGain function!
Dynamic range S/N	• 120 dB
Frequency ranges	• max. 90 kHz (1 Ch, 196 kHz sampling) • max. 25 kHz (4 Ch, 64 kHz sampling) • min. 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode	• fully simultaneous for 4 channels
FFT resolution	• min. 100 lines • max. 3 276 800 lines
Unit modes	• Analyser - analytic measurement • Data-collector - route measurement • Balancer - on-site balancing • Run up / Coast down measurement • Recorder - signal recording • Stethoscope • FASIT -expert system for fault detection • Octave analyzer • Bump test
Processor	• according to PC
Memory	• according to PC hard drive
Data processing	• FFT real time analysis • DEMOD - ENVELOPE analysis • ACMT - low speed bearing analysis • order analysis • user band pass analysis • RPM measurement • DC measurement • Orbit measurement
Signal Recorder	• 64 kHz sampling frequency • 4 Ch memory consumption 3 GB/hour • 4 Ch total recording - 35 hours
Trigger	• manual, external, signal level, time • use for signal recording trigger • speed change, time interval
Communication	USB
Temperature range:	-10˚C to +50˚C
Power	• USB powered
Case	• Aluminium Heavy Duty
Size & Weight	• 110 x 115 x 35 mm • 350 g
