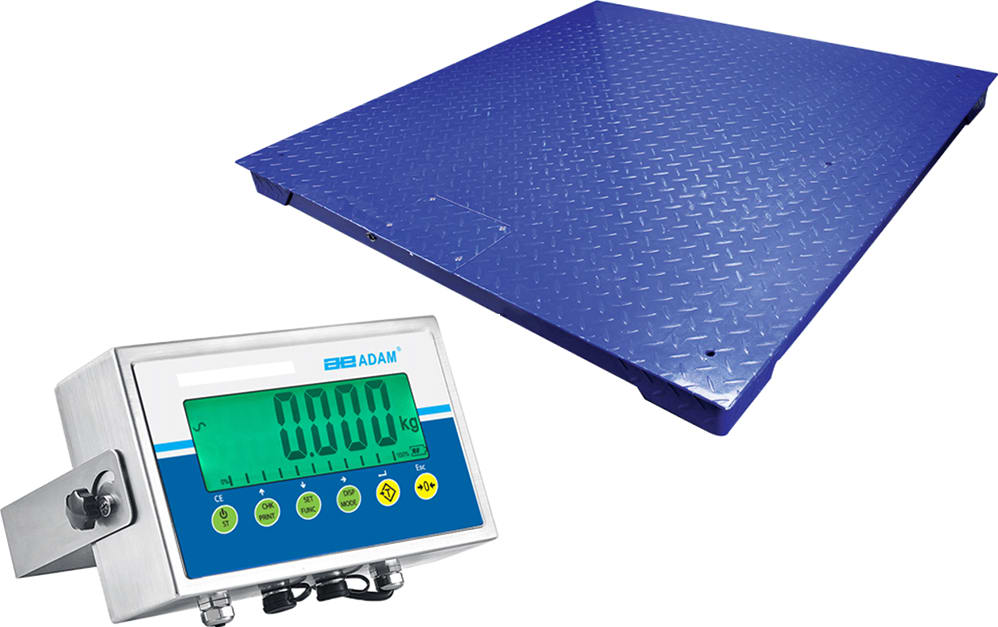

Adam Equipment PT 310-5 AE403a - PT Platform with AE403a Indicator, 5000lb / 3000kg

• Capacity: 5000lb / 3000kg
• Readability: 1lb / 0.5kg
• Repeatability: 2lb / 1kg
• Pan Size: 39.4"x39.4" / 1000x1000mm

PT industrial platform scales offer durability, quality construction and ease of use for weighing oversized or heavy objects on warehouse floors.

The PT features a large, steel base with a diamond plate surface, adjustable levelling feet and cable. Optional ramps facilitate loading and unloading heavy objects.

Adam offers a range of weight and counting indicators that can be combined with PT platforms, including the GK, GC and AE403 for expanded weighing applications that include checkweighing, parts counting and dynamic animal weighing.

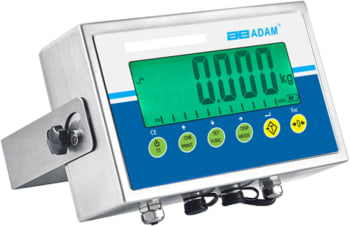

AE 403a Indicator

• Color-coded keys facilitate quick recognition of the most frequently used buttons
• Robust metal housing protects internal components in harsh environments
• Rugged stainless steel construction for ultimate durability
• RS-232 interface is available to provide speedy connection to computers and printers
• Wall-mount bracket for placing indicator on vertical surface

A rugged stainless steel design and IP67 rating make AE 403 the right choice for a variety of industrial applications. The backlit display shows results in 40mm-high digits and changes color when the weight is over, under or within limits. Easily monitor overloads with the capacity tracker. The included bracket allows the AE 403 to be mounted on the wall or other vertical surface for optimum visibility and flexibility.

The multi-function AE 403 indicator can be combined with weighing platforms to handle demanding industrial tasks. It performs well on the loading dock, at food processing plants, in agricultural settings, or in shipping and receiving areas.

Software

• External calibration allows for verification and adjustment with weights
• Checkweighing with audible alarm
• Hold function freezes the displayed weight, allowing time to elapse without losing the result
• Parts counting with preset sample sizes
• Selectable digital filtering helps minimize effects of vibration and disturbances
• User-selectable scale division
• Zero-tracking feature ensures display returns to zero reading

Display

• Backlit display changes color for quick notification of checkweighing limits
• Capacity tracker built into display for easily monitoring possible overloads

Power

• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy

Approval

• IP67-rated for protection against water and dust
