• View DNA migration and separation as it happens
• Blue light illumination - won’t damage DNA
• Capture high-resolution images without removing the gel from the tank
• Touch screen control
• Bright color display

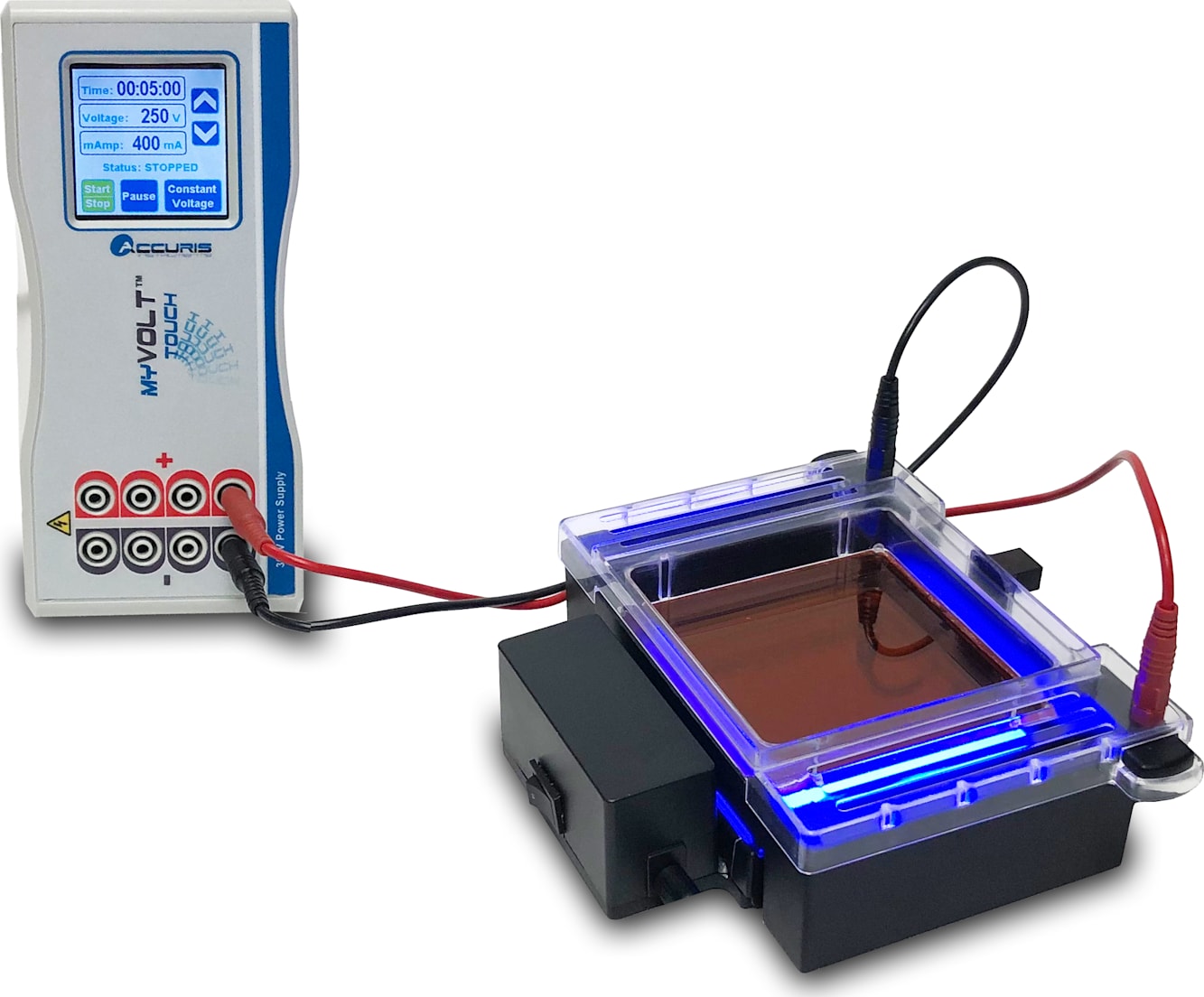

The myGel InstaView comes complete with everything needed to cast, run, and view mini electrophoresis gels, including an integrated power supply. One large (10.5x10cm) or small (10.5x6cm) gel is accommodated by the gel tank. Gels are easily poured using the supplied trays, combs, and leak-proof casting stand. The power supply connects directly into the gel tank - no more leads to contend with. The connection is guaranteed to be right, every time.

Output voltage can be adjusted to 35V, 50V, or 100V, and run time can be set for up to 99 minutes. A magnetic interlock between the gel tank and the lid prevents current from running through the system when the lid is not properly in place.

Once the myGel InstaView System is set up, simply slide the mini-LED transilluminator into place under the tank and at any time turn it on to view the run-in real-time. An array of blue LEDs emits bright blue light at a wavelength of 465nm for optimal excitation of common green fluorescent stains such as SmartGlow™, SYBYR™ Green, and Gel Green, without damaging DNA. An orange filter is incorporated into the lid for visualizing DNA bands without any additional equipment or special glasses. When it’s time to document results, place the included gel imaging enclosure over top of the myGel InstaView, and use the camera app on any smartphone to capture high-resolution images without removing the gel from the tank.

Images are easily shared via email or text message or printed.

Powerful and Capable

The Accuris myVolt™Touch is a workhorse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select "Constant Current" or "Constant Voltage" during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with a rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.

Touch Screen Control Panel

The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the "up" and "down" arrows to adjust the value, and then touch "Start". All parameters are always displayed, with no need to toggle between Time, Voltage, or Amperage. In addition, the run status is always displayed.
