| Comparison Features |
| Frequency Range (min) |
9kHz (optional 1Hz with Option 003) |
| Frequency Rance (max) |
6GHz |
12GHz |
16GHz |
20GHz |
| Real-Time Bandwidth |
44MHz
(opt. 88MHz) |
88MHz
(opt. 160/175MHz) |
88MHz
(opt. 160/175MHz) |
88MHz
(opt. 160/175MHz) |
| Minimum Event Duration for 100% POI |
<1µS |
| Max. Power at RF input (50 Ohm) |
+20dBm (+33dBm*) |
| Displayed Average Noise Level (internal pre-amp on) |
typ. -150dBm/Hz |
| Displayed Average Noise Level (with external pre-amp) |
max. -170dBm/Hz |
| Amplitude accuracy (typ.) |
typ. +/- 1,5dB |

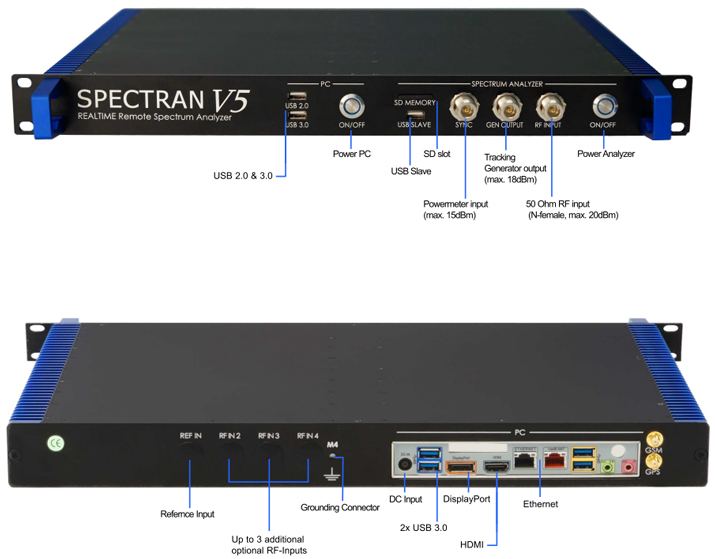

| RF input |
50 Ohm (SMA-connector) |
| Frequency reference accuracy |
0,5ppm (optional 5ppb with Option 002) |
| RBW (resolution bandwidth) |
1Hz to 40MHz (in preparation) |
| VBW (video bandwidth) |
1Hz to 40MHz (in preparation) |
| Demodulator |
AM, FM |
| Measurement Units |
dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm² |
| Detector |
Min, Max, AVG, Peak, QPeak (in preparation) |
| Attenuator range |
45dB (0,5dB steps, incl. pre-amp) |
| Traces |
ACT, AVG, MAX, MIN |
| Reference range |
-200dBm to 100dBm |
| Measurement modes |
I/Q (in preparation), Power/Frequency Data |
| Views |
Spectrum, Persistence Spectrum, Spectrogram / Waterfall, Histogram |
| Trigger |
Cursor, Measurement, Density |
| Video RAM |
32 MB |
64 MB |
64 MB |
64 MB |
| SDRAM |
128 MB |
256 MB |
256 MB |
256 MB |
| ADC |
250MSPS 14Bit |
500MSPS 14Bit |
500MSPS 14Bit |
500MSPS 14Bit |
| GPS |
Support via external GPS Logger |
| FPGA |
72K ECP3 |
240K ECP3 |
240K ECP3 |
240K ECP3 |
| DSP (Dual Core Blackfin) |
400 MHz |
600 MHz |
600 MHz |
600 MHz |
| Temperature Range (Operation) |
0 °C to +40 °C |
| Temperature Range (Storage) |
-20 °C to +60 °C |
| Dimensions |
255 x 85 x 29mm |
| Weight |
850g |
| Power Supply |
AC Input: 100-240V, 50-60Hz - DC Output: 5,6V, 5A max. |
| Power Consumption |
<35W |
| Country of Origin |
Germany |
| Recommended Calibration Interval |
2 years |
