Aaronia PowerLOG 70180 - Broadband Horn Antenna, 700MHz to 18GHz

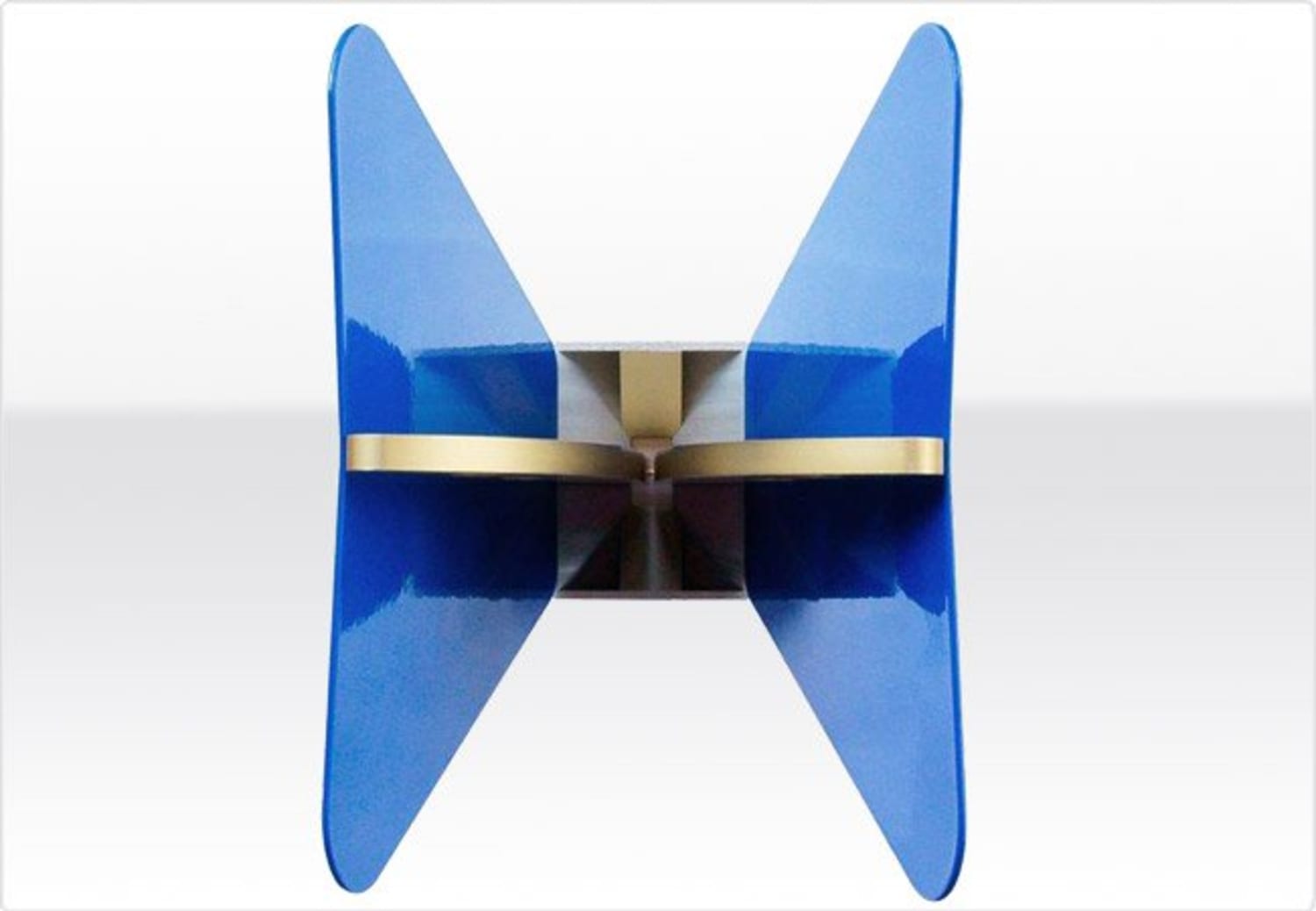

Broadband Horn Antenna Aaronia PowerLOG 70180
The horn antennas of the Aaronia PowerLog ® series are characterized by an enormous broad frequency range and very high input powers. The gain increases with increasing frequency up to max. 17 dBi. This gain increase compensates for the increasing cable losses at higher frequencies.
The PowerLog 70180 is suitable for both transmitting and receiving purposes. Due to the very high maximum transmission power of up to 500W (peak), the PowerLog is especially suitable for EMC and immunity test measurements.
The antenna is delivered including detailed, specific calibration data.
Highlights:
- Extremely wide frequency range from 700MHz to 18GHz
- Supports high input levels up to 500W (peak)
- High gain up to 17dBi
- Delivered including detailed, specific calibration data
- Perfect for EMC and immunity tests with Spectrum Analyzer
- Dimensions: 235x252x175mm
- Weight: 1400g
- Made in Germany
