• Frequency range Field Probes: DC - 9 GHz
• Dimensions of case (L/W/D): (300x190x70) mm
• Weight PBS1 (case incl. probes): 1200 gram
• Allows for straightforward pinpointing and measurement of interference sources
• All probes are covered with an insulating layer

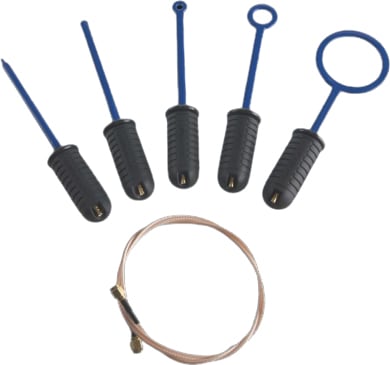

Our RF field probes set for each Spectrum Analyzer and Oscilloscope allows for straightforward pinpointing and measurement of interference sources from DC to 9GHz in electronic component groups as well as execution and monitoring of generic EMC measurement. Our RF sniffer set includes a total of 5 probes: 4 probes for magnetic field measurement and one for measurement of electric fields. All probes are covered with an insulating layer, thus allowing safe measurement of oscillators or mains lines.

Perfect for locating interference sources which might have been found e.g. in an EN55011, EN55022 or EN50371 (Class A or Class B) survey. After implementing appropriate changes in the circuit, their efficiency can easily and reliably be verified. That way, expensive and time-consuming re-assessments in an EMC laboratory can be skipped. Ships with 5 probes (SMB-Connector), transport case, 1m SMA-to-SMB Cable and miniature tripod.

The EMC Near Field probe set allows for straightforward pinpointing and measurement of interference sources in electronic component groups as well as execution and monitoring of generic EMC measurement.
