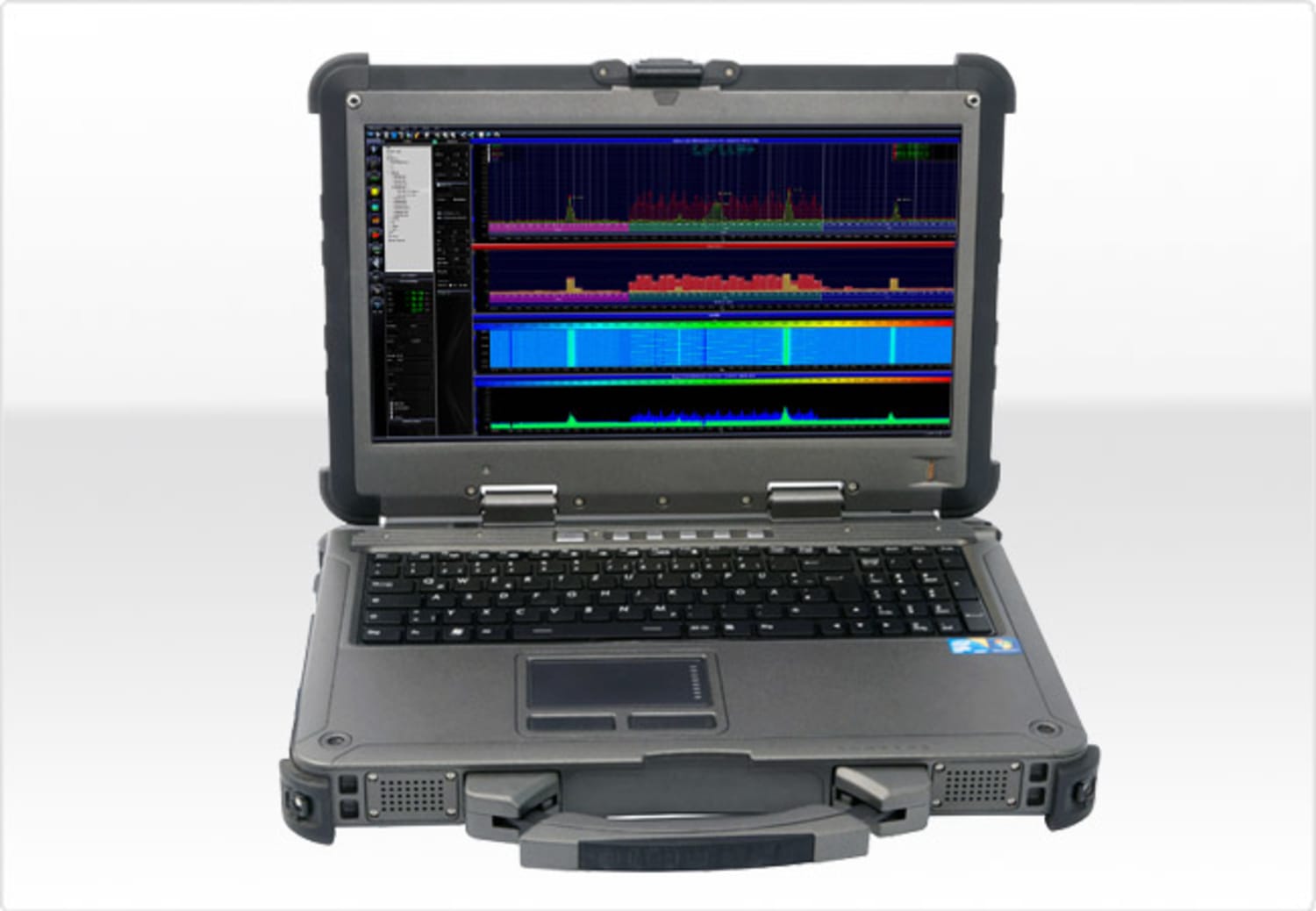

Aaronia NF-XFR PRO - Armour Harded Dell Comp 1Hz - 20MHz

Functional Overview

Below you will find an overview of the most important functions of the NF-XFR PRO. The software is constantly evolving, future updates are free of cost for all users.

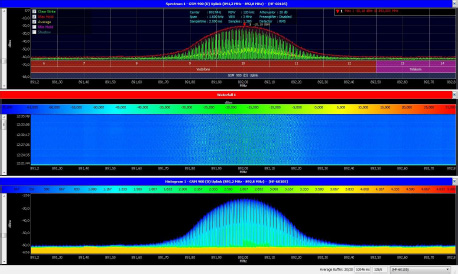

Spectrum Analysis

• High-resolution spectrum display of the current sweep, Average, Min / Max, Shadow, peak, RMS, etc.
• Provider display with many prestored providers, as well as an editor to edit or add Providers
• Marker function with unlimited number of different markers (min, max, delta, AVG, OBW..)
• Support of Styles and Skins, surface appearance can be adapted
• Intuitive drag and drop zoom, shortkeys etc.

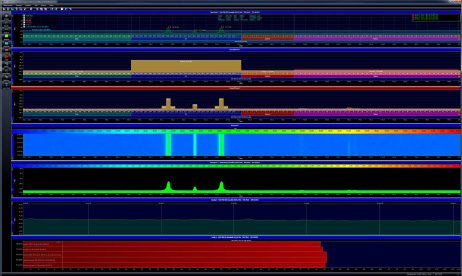

Multi Window

• The HF-XFR PRO supports an unlimited number of graphics (Spectrum, Waterfall, Histogram, etc.)
• The window size can be adjusted freely, therefore a full utilization of the FULL HD display is possible
• Simulate with only one HF-XFR PRO further measuring instruments to different measuring ranges (eg. 3G, WiFi and TETRA)

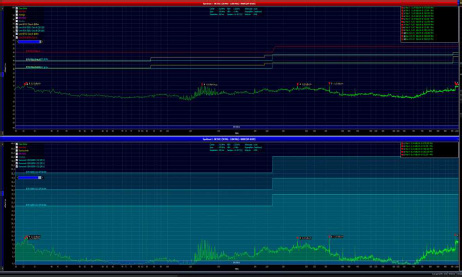

Recording & Replay Mode

• Save your settings and complete measurements in Sessions
• Play recorded measurements in full length as often as needed with the convenient Replay function
• Print your measurement as PDF
• Export the data for further processing, eg in Excel
• Unlimited recording length allows 24/7 recordings without any "measurement gap"

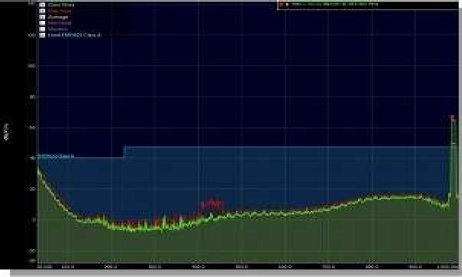

Limits

• Variety of pre-stored limits (eg EN55011, EN55022, ICNIRP... )
• Average, maximum calculation freely adjustable
• Limit editor for creating your own limits
• Trigger function, freely configurable alarm or messages when limits are exceeded
• Image suppression mode - suppression of external interference sources (eg GSM) to perform EMC measurements without anechoic chamber

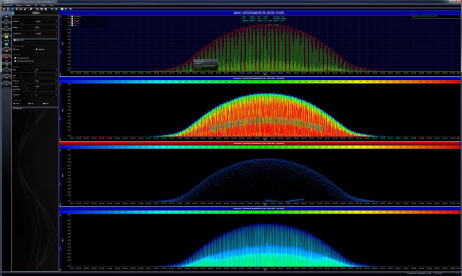

Histogram (dot, line and fill)

• Statistical view Perfect for identification and characterization of sporadically
• Occurring events (bursts) Freely scalable and adaptable
• Represented as points, lines, or filled

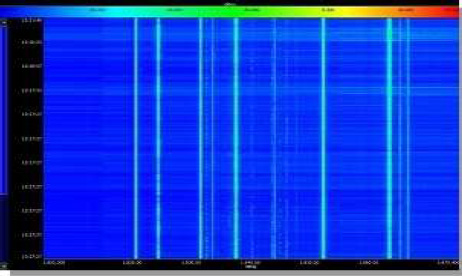

Waterfall

• Measurement data in the form of a "heat map" based on the frequency (X axis) and the time (Y-axis)
• Easier analysis of time-dependent signals, suitable for long-term recording
• Ongoing storage of the data to be able to recall past events by scrolling in the waterfall
• Freely scalable and adaptable

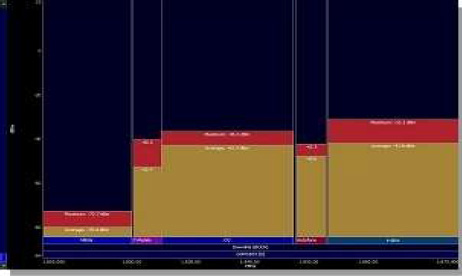

Channel Power

• Allows the measurement of the signal strength in a frequency range - a channel bandwidth
• Perfect for the analysis of Wi-Fi, 3G, LTE or ZigBee channels
• Ideal for the determination of the strongest existing provider including Provider display
• AVG & Max display
• Freely scalable and adaptable

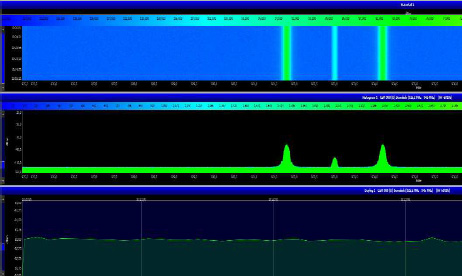

Daylog

• Graphical trend / curve of the peak value over the entire measurement period
• Perfect for the measurement of systems in which the signal strength varies with time
• Time interval can be set freely
• Freely scalable and adaptable
