Aaronia HF 6065-X  V4 - RF Analyzer-X (PC Ver) 10MHz - 6GHz

The Aaronia V4 X Analyzer-Generation offer a vastly enhanced feature set with better screening, significantly faster sample time, more dynamic range, better IP3, reduced phase noise and greater demodulation bandwidth compared to the previous V3 series. Our flagship HF-60100 V4 X is even suitable for Pre-Compliance and EMC/EMI tests.

Patented technology

Based on a patented spectrum analyzer method Aaronia can offer a professional RF measurement at a spectacular price level. Detect sources of interference, find out more about their causes, determine the frequency and intensity of the signal sources, measure limits etc.

Made in Germany

All SPECTRANs are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all SPECTRAN spectrum analyzers and EMC antennas.

Real-time spectrum analyzer software

All SPECTRAN V4 X units offer a USB interface with real-time remote control to your PC or MAC. The free analyzer software, which is available for MAC OS, Linux and Windows, transforms any SPECTRAN V4 X into a powerful desktop measurement solution with great features (e.g. unlimited display size, multiple window display, histogram, waterfall diagram, unlimited number of markers, enhanced limits display, recording feature etc.). Please have a look at the latest version of our software at our Software Development Website.

Limits measurement

The included software offers a powerful limits display including limits line, percentage display, multiple windows feature, recording and playback etc. Spectrum analyzers with this high-end feature usually cost thousands of Euro. Just save this cost by using Aaronia V4 X analyzers.

Spectrum Analysis from 1Hz - 9,4GHz

Find radiation sources in your surroundings. Find their respective frequencies and signal strengths, including PC-Software exposure limits display.

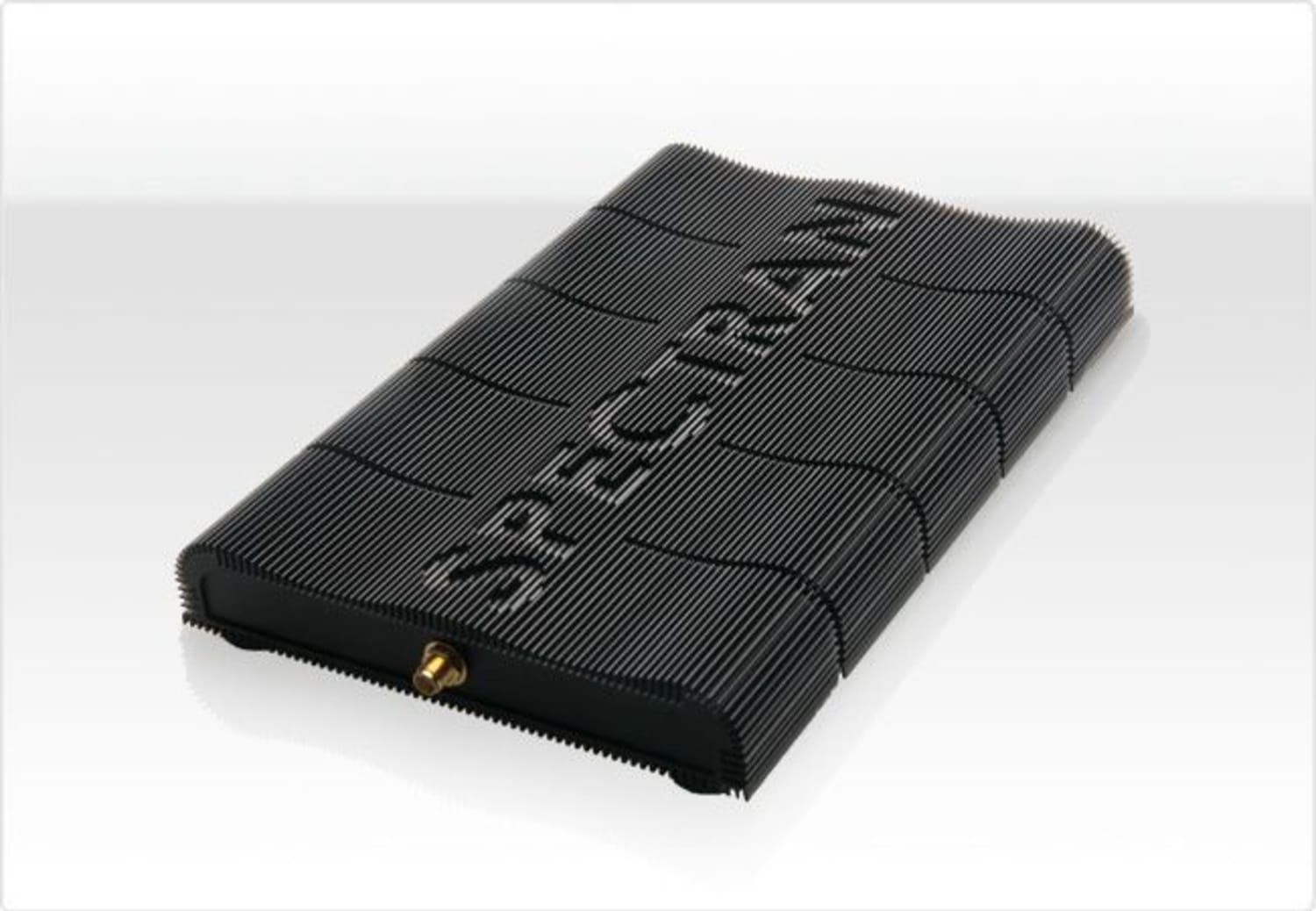

Due to the design and the associated shielding (3mm Aluminum housing) the Spectran X Desktop Analyzer is perfectly suitable for EMC measurements.

The highly complex calculations in spectrum analysis incl. exposure limit calcu- lation is being performed by a highend Analysis Software which runs on almost all platforms (Windows, MAC OS, Linux).

Accurate, sensitive, affordable and beautiful exterior - what more could you ask?

Highlights

Each Spectran X Desktop Spectrum Analyzer combines the following Highlights:

• 100% controlled by USB
• 100% powered by the external power supply
• Incl. OmniLOG 90200 Antenna (perfect to measure GSM orUMTS)
• 50 Ohm SMA input
• Internal speaker (which can be switched off)
• Audio out for the use of PC based FFT analyzer software
• Very good shielding (3mm aluminum housing)
• Highend, milled aluminum housing made of one piece (no cast part)

Professional PC analysis software (included)

The included PC PRO Analyzer Software for the Spectran X Desktop Spectrum Analyzer offers a huge functionality:

• MULTI-device capability! Remote control of several SPECTRAN units. These can be controlled and their data displayed at once on a single PC.
• HIGH-RESOLUTION!, freely scalable, coloured spectrum display with falloff function..
• Display of channel identifiers! for EXACT identification of providers. Channel numbers etc. freely programmable and extensible!
• Up to 10! markers with frequency and level display.
• Intuitive zoom control with very comfortable frequency adjustment.
• High quality "waterfall"-display with TIMECODE. Colour scale freely configurable. Size freely scalable. Optional display of data DIRECTLY ON TOP OF THE GRAPH by pointing with your mouse and CTRL-clik- king!
• High-resoution SLOT ANALYSER with 3D display!
• SUPER-LOGGER: ALL data can be written to disk continuously. File format is readable by spreadsheet applications, for creating custom reports, etc.
• Freely positionable windows for comfortable entry of frequency, RBW, sweeptime etc. etc.
• Various pre-defined profiles for DECT, UMTS, GSM, WLan etc. etc. for instant recall. Incl. optimal parameters and extensive channel infor- mation! Freely programmable and extensible!
• Independant main display with SIMULTANEOUS display of dBm, dBµV, V/m, W/m2 and A/m, each with AUTORANGE. Freely transposable and scalable.
• SUPERB exposure limit display with various profiles (ICNIRP, Salzburg precautionary values, ECOLOG, etc. etc.). Freely programm- able with a virtually infinite amount of display options.
• Functionality to update SPECTRAN measurement device firmwares.
• Filemanager and COMPILER for creation and management of YOUR OWN PROGRAMS for SPECTRAN measurement devices.
• "Rename" option for renaming any of your SPECTRAN units (for exam- ple, including location) for better identification etc.
