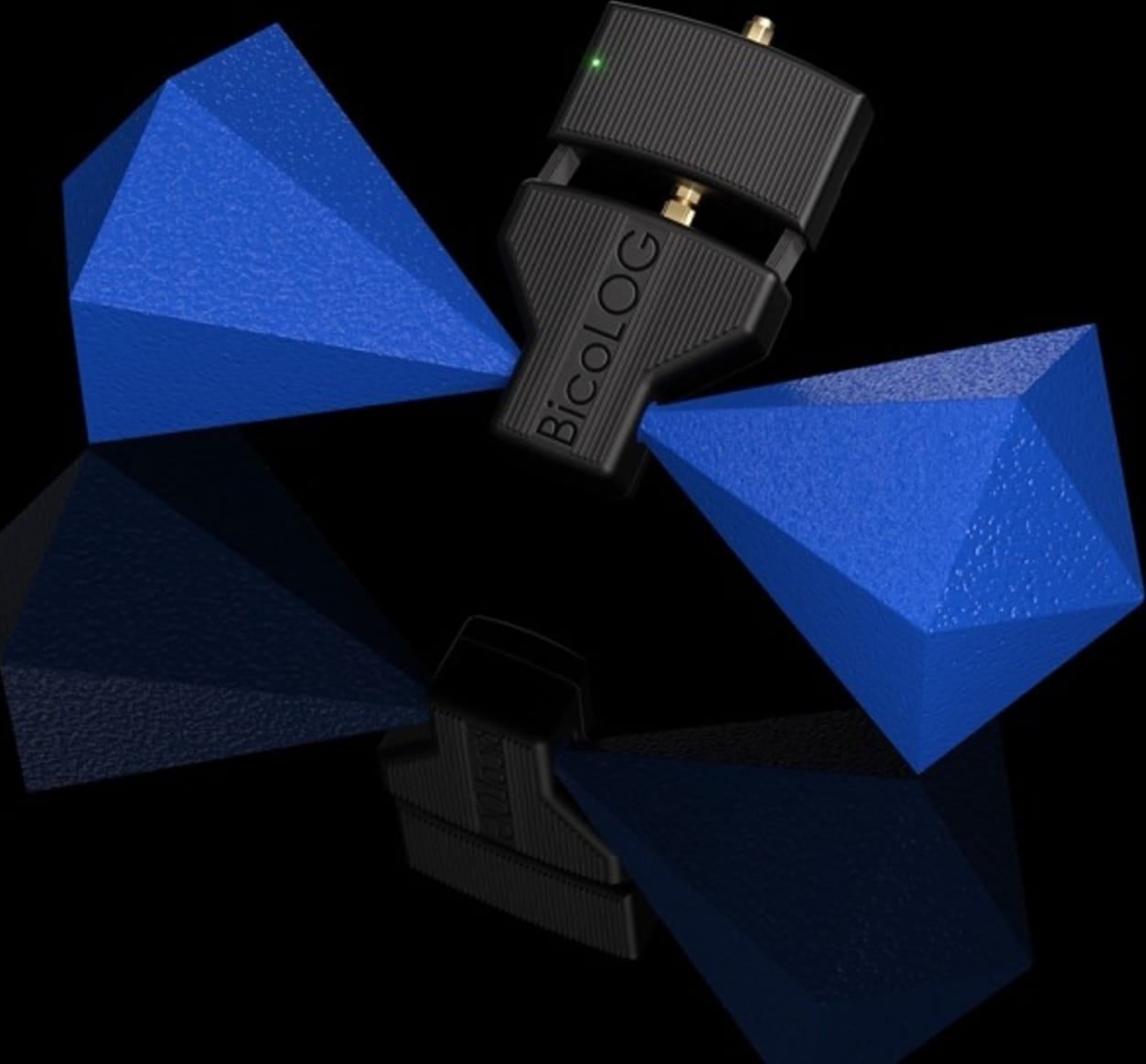

AAronia BicoLOG 20100 - Biconical EMC Test Antenna

Name: AAronia BicoLOG 20100 - Biconical EMC Test Antenna
Brand: Aaronia
SKU: AaroniaBicoLOG 20100
Price: 1857.60 USD
Availability: InStock

0 reviews | Catalog: AR 204/003 | Model: Aaronia BicoLOG 20100

Compare

BicoLOG 20100 (radial isotropic, 20MHz to 1GHz)

Only a single biconical antenna for the complete frequency range from 20MHz up to 1GHz
Very high gain up to 41dBi!
Optimal for usage with spectrum analysers for EMC measurement
Suitable for mobile use
Robust design
Small weight and dimensions
Made in Germany
10 years warranty

View Product Details

Your Price: $1,857.60

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Aaronia BicoLOG 20100 BicoLOG 20100 (radial isotropic, 20MHz to 1GHz)	Aaronia BicoLOG 20300 BicoLOG 20300 (radial isotropic, 20MHz to 3 GHz)	Aaronia BicoLOG 30100 BicoLOG 30100 (radial isotropic, 30MHz to 1GHz)
Price
In Stock
Type (Antennas)	Other	Other	Other
Maximum Frequency Range	1 GHz (1000 MHz)	3 GHz (3000 MHz)	1 GHz (1000 MHz)
Connection	N-Type	N-Type	N-Type
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Aaronia BicoLOG 20100 Accessories

Choose a Category

Adapter Kits

for the Aaronia BicoLOG 20100

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

General Specifications
Design	Biconical Antenna
Frequency range	20MHz to 1GHz
Max. transmission power	1W (30dBm or 0dbW)
Nominal impedance	50 Ohms
Gain	-45dBi to 1dBi
Antenna factor	20-42dB/m
Calibration points	106 (5MHz and 10MHz steps)
RF connection	N (female) or SMAwith adapter
Tripod socket	1/4”
Dimensions (L/W/D)	(350x160x140)mm
Weight	350gr
Warranty	10 years

Tech Specs

Accessories/Antennas Template
Type (Antennas)	Other
Maximum Frequency Range	1 GHz (1000 MHz)
Connection	N-Type
Test Equipment General Attributes
Unique Features	Freq Range from 20MHz - 1GHz
Warranty	10 YEARS
Product Weight	350 GRAMS (0.772 LBS)
Product Length	350 MM (13.78 IN)
Product Width	160 MM (6.30 IN)
Country of Origin	United States
Other Information	Depth;: 140 mm
