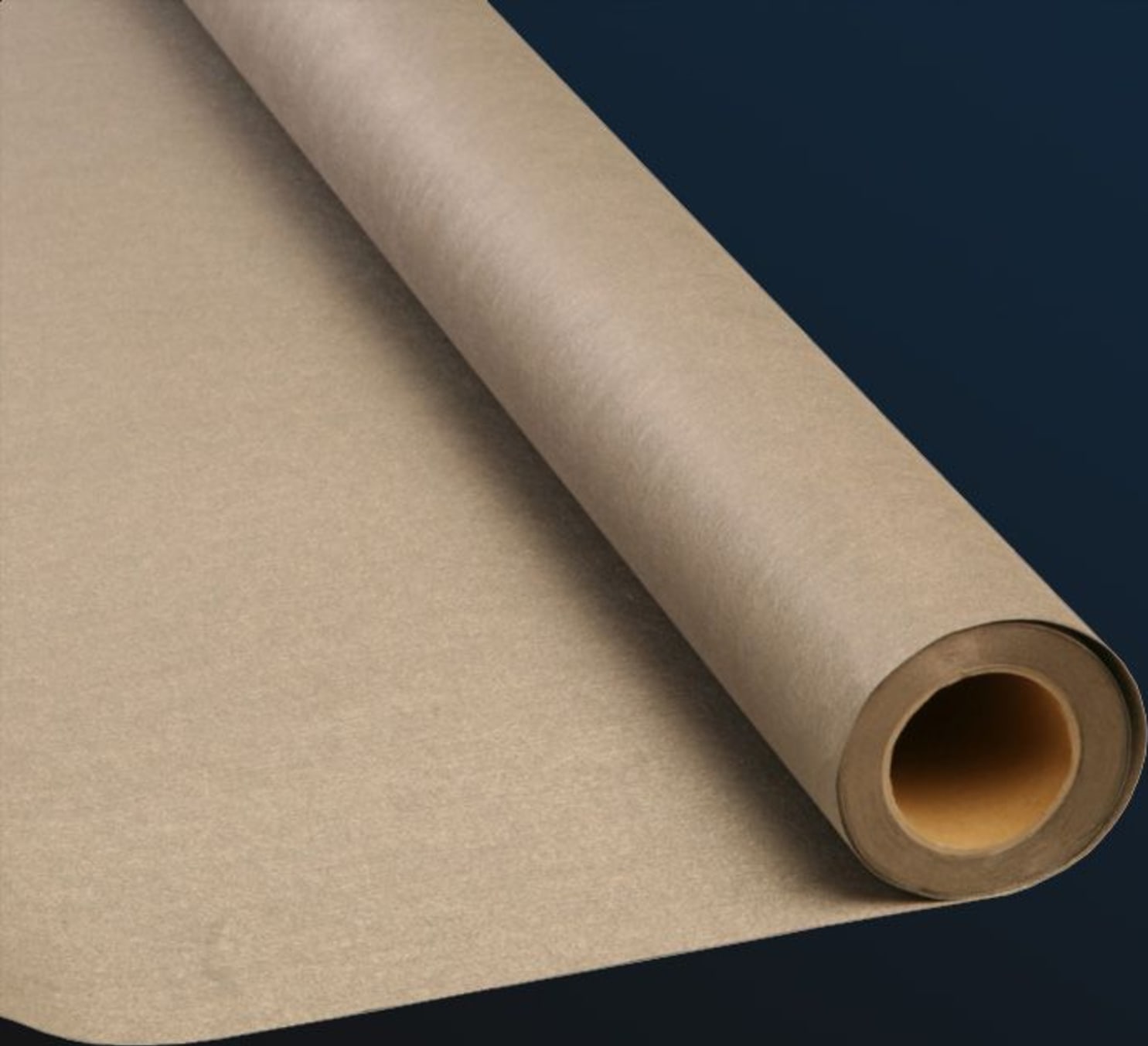

Aaronia X-Dream 100dB RF Shielding-Fleece Series

Aaronia's novel, patented EMC & RF Shielding-Fleece Aaronia X-Dream® offers an impressive RF shielding performance of far more than 100dB. Highest RF screening performance even in the high GHz range. Probably offers the best rf and emc screening worldwide in this product and price category! Optimal for rf Shielding-Application in indoor as well as outdoor areas of homes, offices, laboratories and manufacturing. Also ideal for building bug-proof environments, precision EMC measurement chambers, or shielding-application in aerospace. This product shields a 10000fold higher performance than Aaronia-Shield®.

The various screening systems available on the market today differ widely in both affordability and protection efficiency. They are often far too difficult to handle, particularly for the novice, but also for professional users. Apart from this, they are mostly far too expensive. Also, customers currently mostly need two seperate screenings simultaneously, as most screenings against RF offer hardly any protection against LF fields, and vice-versa.

The Aaronia X-Dream® can be used both for screening electric fields from local LF radiation sources like cables or distribution boxes, as well as for screening rooms or entire houses or other buildings against RF radiation. Installation is performed by laying the fleece in adjacent lanes which need to overlap approx. 15 cm for guaranteeing a closed surface. It is noteworthy that it is not necessary to ground Aaronia X-Dream® for RF screening! Still, we generally recommend grounding using our grounding package, as this will also add protection against low-frequency electric fields from high-voltage lines, power cables etc.

Damping graph 1 - 10 GHz

Measurements prove the good screening performance: Damping of high-frequency radiation in the frequency range particularly affected by pulsed signals, for example by cell towers, is 90% to 99%. Also, static and low-frequency electric fields like those generated by any cables or appliances in homes, or high-voltage power lines, are being damped by up to 99,9%

Applications

Shielding a house or other building

Houses and other buildings should be protected with Aaronia X-Dream indoors.This is achieved by glueing or “stapling” the EMC fleece to the walls. In roofs, the fleece should be installed directly beneith the vapor barrier. In floors, the fleece can even be installed in the floor pavement. Always note that for professional RF screening, a hermetically sealed enclosure, a so-called Faraday cage, must be built. Be careful to always leave a bit of overlap when attaching the fleece to walls, floors and ceilings to be able to later connect the lanes without gaps! Windows need to be screened as well. For this, we recommend our highly-transparent shielding fabric Aaronia-Shield®.

Screening a room

To protect a room (such as a bedroom) against high frequency radiation, the entire room needs to be cov-ered with Aaronia X-Dream® completely. On the other hand, if shielding against low-frequency electric fields (such as the electrical distribution box or in-wall cables) is desired, only a small area around the radiation source needs to be covered. Attention: For achieving low frequency shielding, the fleece must be grounded! For this, we strongly recommend our Aaronia ground-ing package. For floors, the fleece can be installed invisibly under the carpet, or, in a new building, in the floor pavement. When attaching to walls, the fleece can be attached like usual wallpapers using a special glue. If walls are made from plasterboard, wood or similar, the fleece can simply be “stapled” to the wall. Though, the easiest alternative is the self-adhesive “PLUS” version of Aaronia X-Dream®.

The surface needs to be dust-free, free of grease and dry. Attachment to ceilings can be performed similarly. Doors and their frames should be covered entirely and completely with the fleece, preferably using the self-adhesive Aaronia X-Dream PLUS®, yielding to an almost perfect connectivity between the door’s fleece and the fleece used in the rest of the room. For window use, we recommend Aaronia-Shield® which allows elegant installation as an invisible “fly screen”. After installation, the EMC fleece can also be painted and covered with wallpaper or plaster. It even offers an attractive surface with the original copper appearance. Our installation manual makes it easy even for the novice to construct a screened room without hassle.
