AFL SMLP4-4-FC - SM/MM Loss Test Kit (850/1300/1310/1550), FC Connector

Singlemode / multimode loss test kit

• 850/1300/1310/1550nm
• FC connector
• Includes OPM4-2D power meter
• Includes OLS4 light source

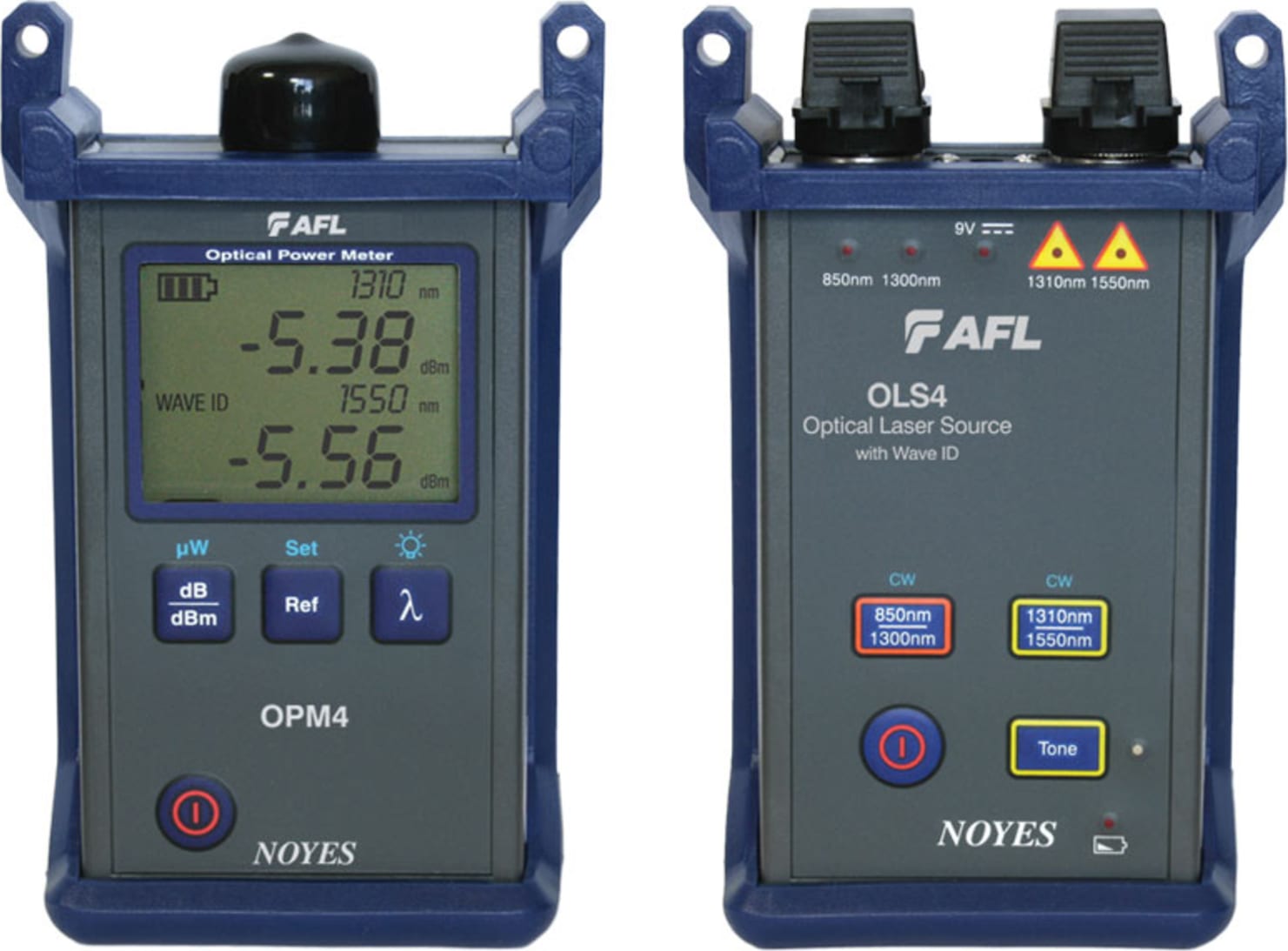

The AFL SMLP4-4 are rugged loss test kits for testing and certifying fiber networks to industry standards. Each SMLP4-4 Kit includes an OLS4 quad light source plus OPM4 optical power meter. The OPM backlit display is easily viewed in both direct sunlight and dimly lit environments. Interchangeable adapters connect to common optical network interfaces and provide easy access for cleaning launch and receive ports.

OLS4 Quad Source is an integrated two-port LED (850 and 1300 nm) and laser (1310 and 1550 nm) light source designed for performing insertion loss measurements on both multimode or single-mode fiber optic links. Each port can transmit highly stabilized output (single or dual wavelength) ensuring accurate insertion loss test results per current TIA/EIA requirements. Equipped with industry standard 2 kHz test tone, the OLS4 is an ideal tool to pair with an optical fiber identifier (OFI-BI/PM or OFI-400) for use in fiber identification.

OPM4-2D Optical Power Meter provides accurate power and loss measurements, reference storage for each calibrated wavelength, and detects multiple test tones for fiber identification. Set-Ref feature allows the OPM4 to display measured power levels relative to a stored, measured level.

Automatic wavelength identification significantly increases efficiency

Standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors. It significantly increases efficiency and reduces technician errors, saving test time by eliminating the need to test each wavelength individually.

Optical References Storage

The OPM4 stores optical references for each calibrated wavelength and offers multiple test tone detection for fiber identification.

50 and 62.5 µm Fiber Mandrels Included

Mandrels condition test fibers to obtain more accurate loss measurements when certifying 50 or 62.5 µm fiber links for current and planned high bit rate applications, such as Gigabit Ethernet and 10 Gigabit Ethernet. Mandrels are installed on launch jumpers in seconds without tools to ensure loss measurements are performed per the TIA/EIA-568-B standard.

Encircled Flux Compliance

International standards bodies established Encircled Flux (EF) guidelines (TIA-568-14-B and IEC 61280-1-4) to improve measurement repeatability by reducing loss measurement variation to within a target range of ± 10%.

EF Mode Conditioners attach to the output of your multimode source ensuring the "conditioned output" meets Encircled Flux specifications. Compliance requires matching the output fiber size to the network fiber under test. AFL offers both 50 µm and 62.5 µm EF Mode Conditioners.

Many packages available

AFL offers optical loss test kits which are suitable for many different applications. The following is an overview of available packages and the functionality of each. Please note, the part numbers on the left are clickable and will open a new window to that specific product series.

Please note, kits with an OPM5 power meter include a USB cable and Windows compatible reporting software.
