AFL SLP4-6-ST - Singlemode Loss Test Kit (1310/1550), ST Connector

Singlemode loss test kit

• 1310/1550nm

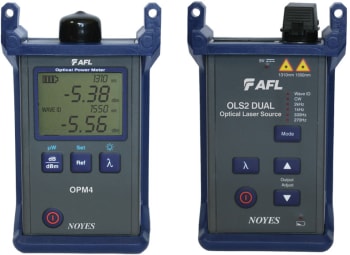

• Includes OPM4-3D power meter
• Includes OLS2-DUAL light source
• ST connector

Designed for field use, the SLP4-6 are rugged loss test kits for verifying single-mode fiber networks. Each kit includes a handheld OLS2-DUAL laser source and OPM4-3D power meter. The OPM4's backlit display is easily viewed in both dimly lit and direct sunlight environments. Interchangeable adapters connect to common optical network interfaces and provide easy access for cleaning launch and receive ports.

OLS2-Dual Laser Source is a single-port LASER (1310 and 1550 nm) light source designed for performing insertion loss measurements on single-mode fiber optic links. It transmits highly stabilized output (single or dual wavelength) to ensure accurate loss test results per current TIA/EIA requirements.

Equipped with industry standard 2 kHz test tone, the OLS2-Dual from AFL is an ideal tool to pair with an optical fiber identifier (OFI-BI/PM and OFI-400) for use in fiber identification.

OPM4 Optical Power Meter provides accurate measurements, reference storage for each calibrated wavelength, and detects multiple test tones for fiber identification. Set-Ref feature allows the OPM4 to display measured power levels above a known measured level.

Automatic Wavelength Identification Significantly Increases Efficiency

Standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors. It significantly increases efficiency and reduces technician errors, saving test time by eliminating the need to test each wavelength individually.

Optical References Storage

The OPM4 stores optical references for each calibrated wavelength and detects multiple test tones for fiber identification.

Many packages available

AFL offers optical loss test kits which are suitable for many different applications. The following is an overview of available packages and the functionality of each. Please note, the part numbers on the left are clickable and will open a new window to that specific product series.

Please note, kits with an OPM5 power meter include a USB cable and Windows compatible reporting software.
