AFL MLP4-2D-ST - Multimode Loss Test Kit (850/1300), ST Connector

Applications include:

• Certify multimode links per TIA/EIA standards
• Passive Optical Networks (PON) testing
• Loss Measurements at 850 nm and 1300 nm

The MLP4-2D from AFL is a rugged loss test kit for verifying fiber networks. Its backlit display works well in both dim environments and direct sunlight. Interchangeable connector adapters provide access to common network interfaces and provide access for cleaning launch and receive ports.

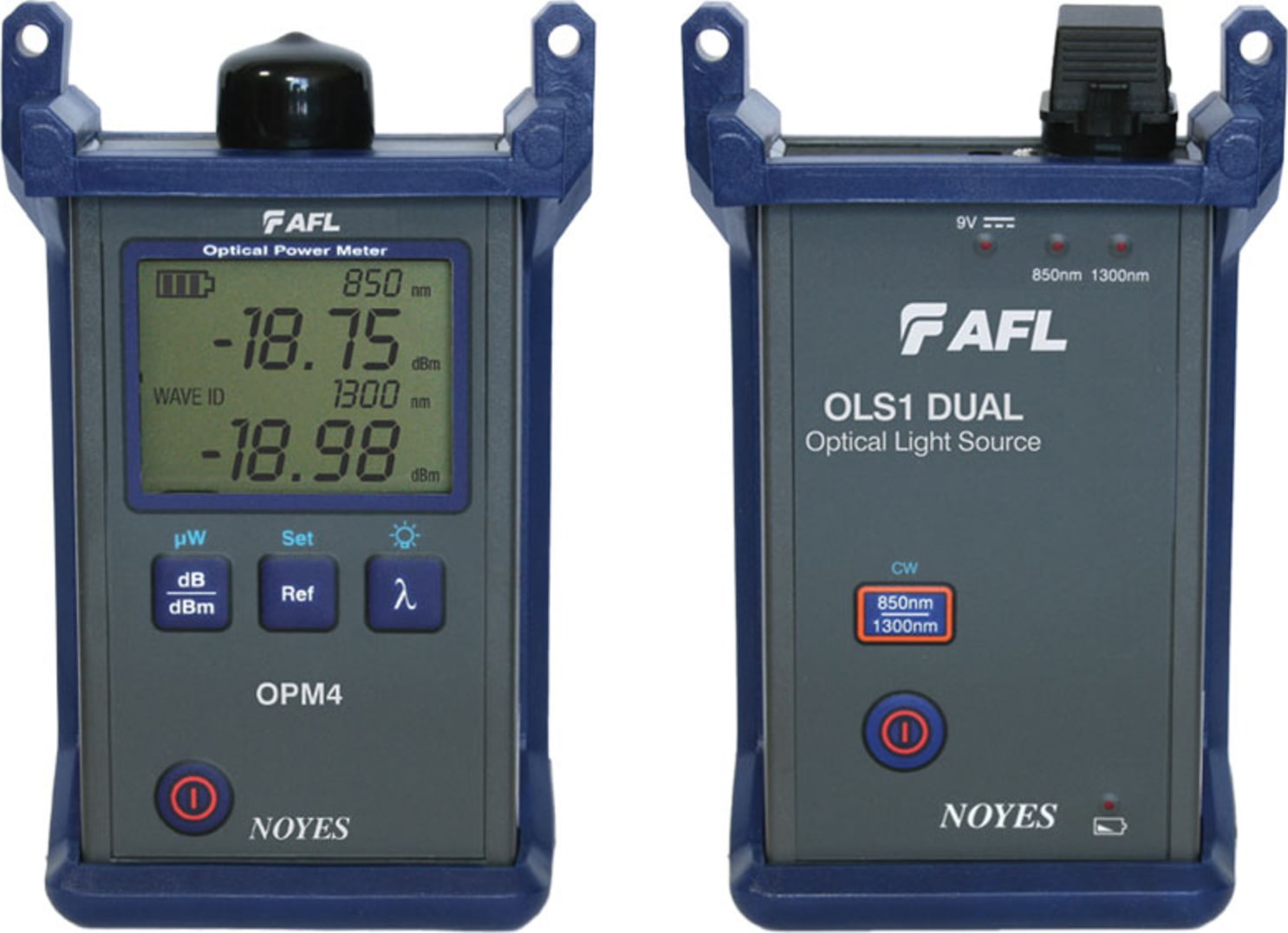

OLS1-Dual LED Source is a single-port LED (850 and 1300 nm) light source designed for performing insertion loss measurements on multimode fiber optic links. Capable of transmitting highly stabilized output (single or dual wavelength) ensuring accurate test results per current TIA/EIA requirements.

OPM4 Optical Power Meter provides accurate measurements and reference storage for each calibrated wavelength. Reference feature allows power meter to display measured loss measurements (power levels relative to the stored reference level).

Automatic Wavelength Identification Significantly Increases Efficiency

The standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors (when used with AFL OLS series light sources). It significantly increases efficiency and reduces technician errors-and saves testing time-by eliminating the need to test each wavelength individually.

50 and 62.5 µm fiber mandrels Included

Mandrels condition test cable for use in certifying both 50 and 62.5 µm fiber links for current and planned high bit rate applications including Gigabit Ethernet and 10 Gigabit Ethernet. Mandrels may be added to launch jumpers in seconds without tools and ensure loss measurements are performed per the TIA/EIA-568-B standard.

Encircled Flux Compliance

International standards bodies established Encircled Flux (EF) guidelines (TIA-568-14-B and IEC 61280-1-4) to improve measurement repeatability by reducing loss measurement variation to within a target range of ± 10%.

EF Mode Conditioners attach to the output of your multimode source ensuring the "conditioned output" meets Encircled Flux specifications. Compliance requires matching the output fiber size to the network fiber under test. AFL offers both 50 µm and 62.5 µm EF Mode Conditioners as optional items.

Many packages available

AFL offers optical loss test kits which are suitable for many different applications. The following is an overview of available packages and the functionality of each. Please note, the part numbers on the left are clickable and will open a new window to that specific product series.

Please note, kits with an OPM5 power meter include a USB cable and Windows compatible reporting software.
