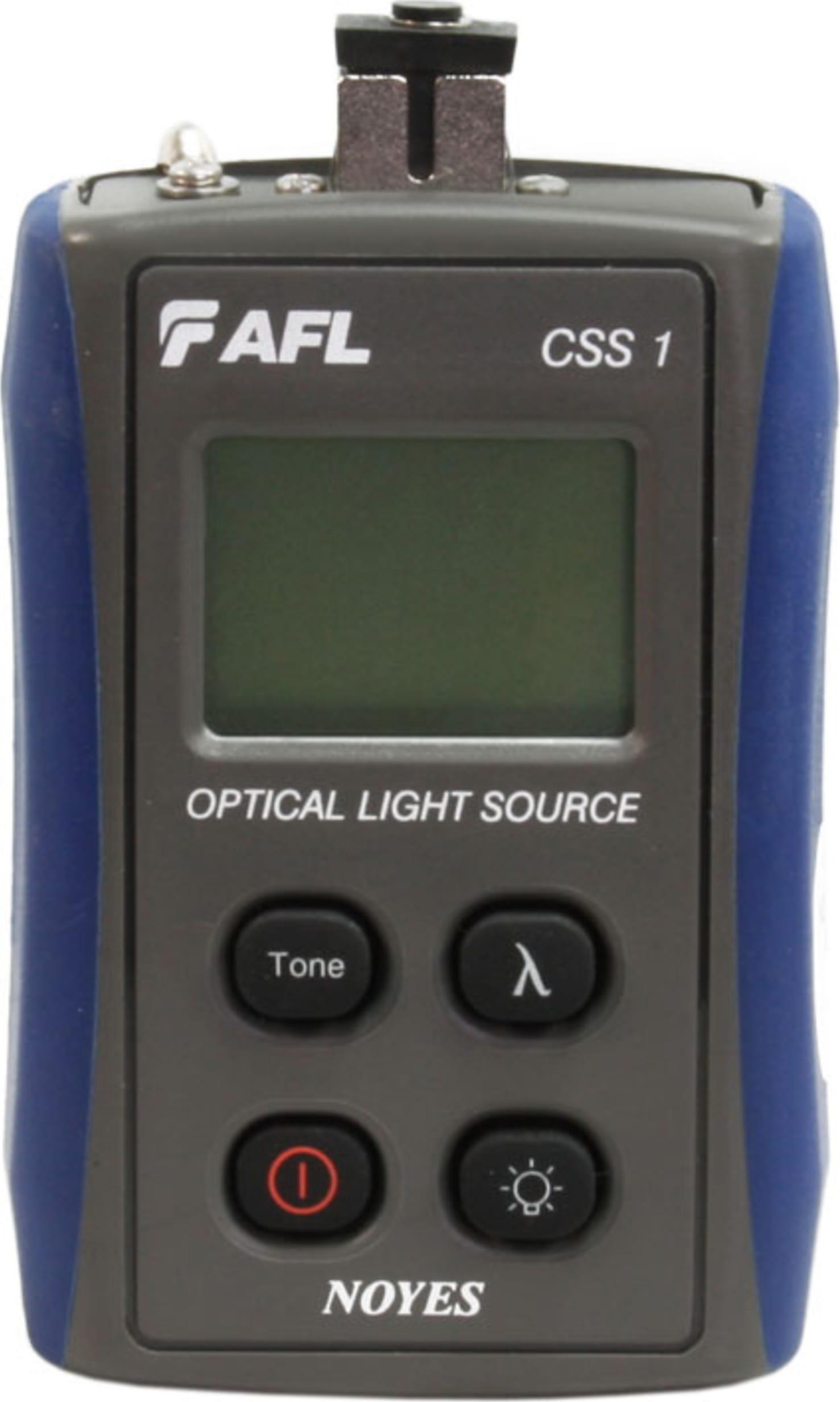

AFL CSS1-MM - Contractor Series LED Light Source (850/1300), Fixed SC Connector

0 reviews | Catalog: CSS1-01-0902PR | Model: AFL CSS1-MM

Compare

CSS1-MM Multimode LED Source. Available with SC connector adapter only

Contractor series
LED light source
850/1300
Fixed SC connector
-20 dBm output power
850 nm and 1300 nm LED output from single test port
50 and 62.5 μm mandrels included
CW continuous wave output (DC)
Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
Use power meters when technician has fiber end access
Use OFI (optical fiber identifier) for mid-span testing

View Product Details

Your Price: $535.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

AFL CSS1-MM Accessories

Choose a Category

Fiber Optic Cleaning Kits

for the AFL CSS1-MM

Sticklers MCC-FK08 Includes: 30 stick S25,20stick S12,2X POC03M, 1X WFW,25 pcs FA1, 1X...

Catalog: MCC-FK08

(0)

In Stock!

Add to Cart

AFL CSS1-MM - Contractor Series LED Light Source (850/1300), Fixed SC Connector

Contractor series

LED light source
850/1300
Fixed SC connector
-20 dBm output power

The AFL Contractor series are small palm sized units which are ideal for field use. Sized to carry and built tough to endure the rigors of outside plan work environments.

Many versions available

The OLS and CSS1 light sources are offered in a variety of formats. Users can select from many different wavelengths as well as connector options. Please note, the model numbers in the left column below are clickable, and will open a new window for that series.

Model	Output Wavelengths (nm)						Emitter Type ^a	Output Power (nominal, dBm)	Wave ID Transmit	Available Connectors
Model	850	1300	1310	1490	1550	1625	Emitter Type ^a	Output Power (nominal, dBm)	Wave ID Transmit	Available Connectors
OLS1-2C	●	●					LED	-20		ST
OLS1-DUAL	●	●					LED	-20	●	FC, SC, ST, LC
OLS2-DUAL			●		●		Laser	0 ^b	●	FC, SC, ST, LC
OLS4	●	●	●		●		LED & Laser	-20 @850 &1300 nm 0 @1310 & 1550 nm	●	FC, SC, ST, LC
OLS7-3			●		●	●	Laser	-5	●	FC, SC, ST, LC
OLS7-FTTH			●	●	●		Laser	-5	●	FC, SC, ST, LC
OLS7-FTTx			●	●		●	Laser	-5	●	FC, SC, ST, LC
CSS1-MM	●	●					LED	-20		SC (fixed)
CSS1-SM			●		●		Laser	0		FC, SC, ST, LC

Notes:
All Laser output powers are specified into 9/125 µm single-mode fiber.
^a. Safety: Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03.
^b. Adjustable 2 dB.

Optical Specifications: CSM1 Light Source
Model	CSS1-MM (Single-Port)
Wavelength	850 nm ±20 nm	1300 nm +40/-60 nm
Spectral Width (max)	35 nm	170 nm
Emitter Type. Safety Class	LED, Class I FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2007-03
Output Power	≥-20.0 dBm into 62.5/125 fiber
Output Stability ^c	±0.1 dB over 1 hour; ±0.15 dB over 8 hours
Tone Output	2000, 1000, 330, 270 Hz
General Specifications
Model	CSS1-MM
Output Connector	SC Fixed
Power	2 AA batteries
Battery Life	30 hours (typical)
Operating Temperature	-10 °C to 50 °C, 90 % RH (non-condensing)
Storage Temperature	-30 °C to 60 °C, 90 % RH (non-condensing)
Size (H x W x D)	14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) without boot
Weight	0.29 kg (0.65 lb) without boot

Notes:
a. All specifications at 25 °C unless otherwise specified.
b. Accuracy measured at 25 °C and -10 dBm per N.I.S.T. standards.
c. After typical 30 second warm up.
