AFL CKS-3-FC - Contractor Series Optical Loss Test Kit (1310/1550), FC Connector

0 reviews | Catalog: CKS3-00-0901PR | Model: AFL CKS-3-FC

Compare

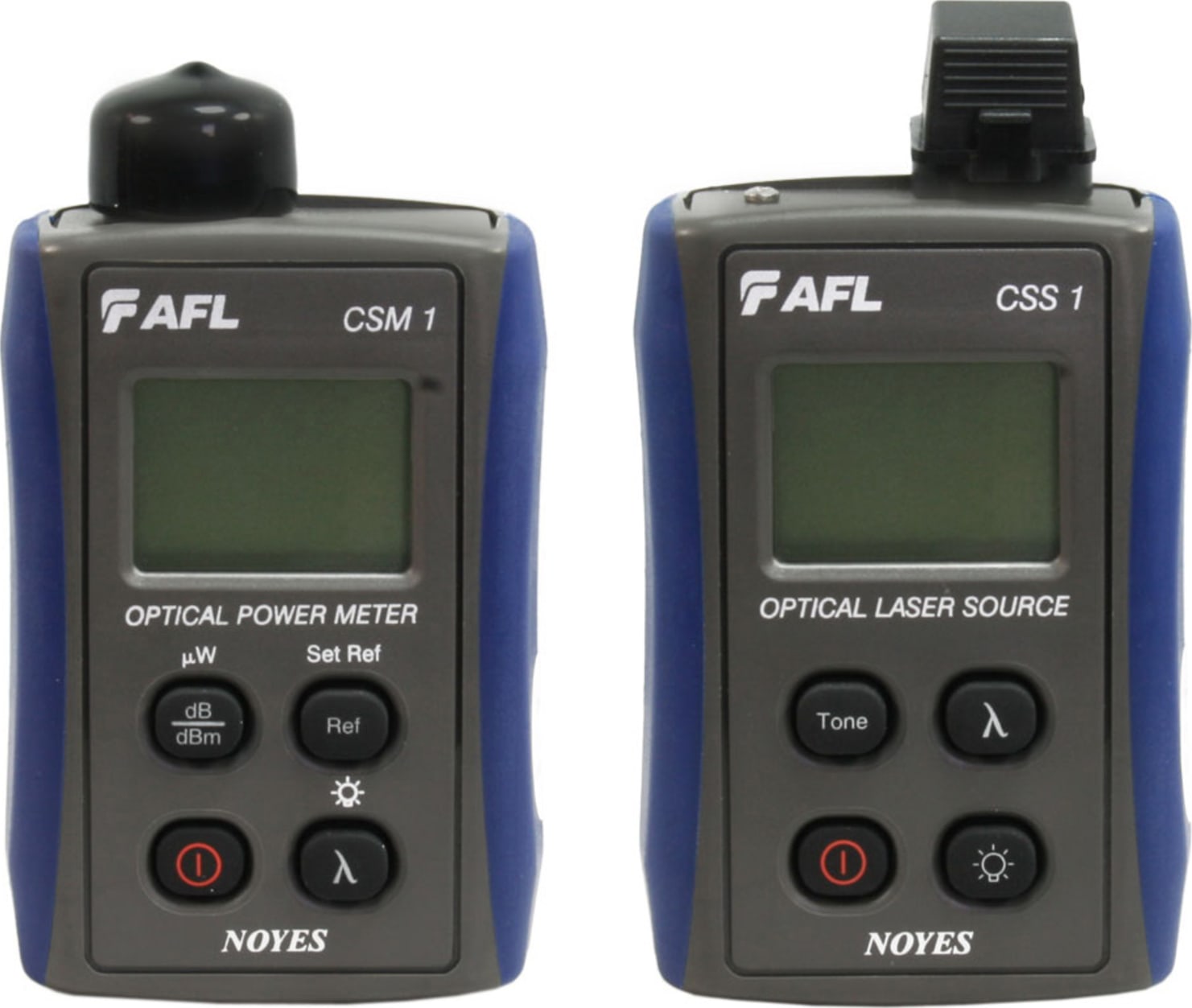

CKS-3 includes CSM1-3/CSS1-SM, FC connector

Contractor series
Singlemode loss test kit
1310/1550nm
Includes CSM1-3 power meter
Includes CSS1-SM light source
FC connector
Palm-sized rugged, dependable tools
5-year product warranty
3-year calibration
Large sunlight readable display

View Product Details

List Price: $1,290.00

Your Price: $1,244.85

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	AFL CKS-3-FC CKS-3 includes CSM1-3/CSS1-SM, FC connector	AFL CKS-3-SC CKS-3 includes CSM1-3/CSS1-SM, SC connector
Price
In Stock
Fiber Type	Single mode	Single mode
Wavelength	1310, 1550	1310, 1550
Has Memory	No	No
Compare	Add to compare	Add to compare

Recommended for you

AFL CKS-3-FC Accessories

Choose a Category

for the AFL CKS-3-FC

AFL 1400-01-0109PZ Soft Carry Case for FLEXSCAN and Loss Test Sets

Catalog: 1400-01-0109PZ

(0)

In Stock!

Add to Cart

AFL 2900-50-0002MR FC Adapter for OTDR / OLS port

Catalog: 2900-50-0002MR

(0)

In Stock!

Add to Cart

AFL 2900-50-0003MR SC Adapter for OTDR / OLS port

Catalog: 2900-50-0003MR

(0)

In Stock!

Add to Cart

AFL 2900-50-0004MR ST Adapter for OTDR / OLS port

Catalog: 2900-50-0004MR

(1)

In Stock!

Add to Cart

AFL 2900-50-0006MR LC Adapter for OTDR / OLS port

Catalog: 2900-50-0006MR

(1)

In Stock!

Add to Cart

AFL 8800-00-0200 Adapter Cap, FC

Catalog: 8800-00-0200

(0)

In Stock!

Add to Cart

AFL 8800-00-0202 Adapter Cap, ST

Catalog: 8800-00-0202

(0)

In Stock!

Add to Cart

AFL 8800-00-0203 Adapter Cap, SMA

Catalog: 8800-00-0203

(1)

In Stock!

Add to Cart

AFL 8800-00-0209 Adapter Cap, SC

Catalog: 8800-00-0209

(0)

In Stock!

Add to Cart

AFL 8800-00-0214 Adapter Cap, 2.5mm Universal Ferrule (accepts FC, SC and ST ferrules)

Catalog: 8800-00-0214

(0)

In Stock!

Add to Cart

AFL 8800-00-0219 Adapter Cap, 2.5mm Open Universal Backplane SC, for OFS and VS300 only

Catalog: 8800-00-0219

(0)

In Stock!

Add to Cart

AFL 8800-00-0221 Adapter Cap, E-2000

Catalog: 8800-00-0221

(1)

In Stock!

Add to Cart

AFL 8800-00-0224 Adapter Cap, 1.25mm Universal (accepts LC and MU ferrules)

Catalog: 8800-00-0224

(0)

In Stock!

Add to Cart

AFL 8800-00-0225 Adapter Cap, LC Simplex Only

Catalog: 8800-00-0225

(0)

In Stock!

Add to Cart

AFL 8800-00-0226 Adapter Cap, MU Simplex

Catalog: 8800-00-0226

(0)

In Stock!

Add to Cart

Sticklers MCC-FK08 Includes: 30 stick S25,20stick S12,2X POC03M, 1X WFW,25 pcs FA1, 1X...

Catalog: MCC-FK08

(0)

In Stock!

Add to Cart

AFL CKS-3-FC - Contractor Series Optical Loss Test Kit (1310/1550), FC Connector

Singlemode loss test kit

1310/1550nm
Includes CSM1-3 power meter
Includes CSS1-SM light source
FC connector

The AFL Contractor Series light sources and power meters are rugged test instruments designed with an intuitive user interface enabling technicians to focus on installing and maintaining fiber networks. These can be used for measuring network insertion loss, continuity checks, and fiber identification.

CSM1 Power Meter

Stores optical references for each calibrated wavelength
Auto-detects Test Tones for use in fiber identification
Optical input port accepts a variety of thread-on adapter caps

CSS1-SM Laser Source

1310 nm and 1550 nm LASER output from single test port
Output port accepts UCI threaded adapters (FC, SC, ST, LC) for flexibility and access to launch fiber for cleaning and inspection

CSS1 Sources Transmit:

CW continuous wave output (DC)
Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
- Use power meters when technician has fiber end access
- Use OFI (optical fiber identifier) for mid-span testing

Many packages available

AFL offers optical loss test kits which are suitable for many different applications. The following is an overview of available packages and the functionality of each. Please note, the part numbers on the left are clickable and will open a new window to that specific product series.

Please note, kits with an OPM5 power meter include a USB cable and Windows compatible reporting software.

AFL NO.

Power Meter

Light Source

Loss Measurements (nm)

Dynamic Range (dB)

Available Connectors

Features

850

1300

1310

1490

1550

1625

Set Ref.

PC Software

Auto Dual λ Test

MLP4-2D

OPM4-2D

OLS1-DUAL

●

40 @850/1300^a
22 @1300^b

FC, SC, ST, LC

●

MLP5-2D

OPM5-2D

OLS1-DUAL

●

40 @850/1300^a
22 @1300^b

FC, SC, ST, LC

●

SLP4-6

OPM4-3D

OLS2-DUAL

●

70^b

FC, SC, ST, LC

●

SLP4-6D

OPM4-4D

OLS2-DUAL

●

50^b

FC, SC, ST, LC

●

SLP4-7

OPM4-4D

OLS7-3

●

45^b

FC, SC, ST, LC

●

SLP4-FTTH

OPM4-4D

OLS7-FTTH

●

45^b

FC, SC, ST, LC

●

SLP4-FTTx

OPM4-3D

OLS7-FTTx

●

70^b

FC, SC, ST, LC

●

SLP5-6

OPM5-3D

OLS2-DUAL

●

70^b

FC, SC, ST, LC

●

SLP5-6D

OPM5-4D

OLS2-DUAL

●

50^b

FC, SC, ST, LC

●

SLP5-7

OPM5-4D

OLS7-3

●

45^b

FC, SC, ST, LC

●

SLP5-FTTH

OPM5-4D

OLS7-FTTH

●

45^b

FC, SC, ST, LC

●

SLP5-FTTx

OPM5-3D

OLS7-FTTx

●

70^b

FC, SC, ST, LC

●

SMLP4-4

OPM4-2D

OLS4

●

40 @850/1300^a
60 @1310/1550^b

FC, SC, ST, LC

●

SMLP5-5

OPM5-2D

OLS4

●

40 @850/1300^a
60 @1310/1550^b

FC, SC, ST, LC

●

CKM-2

CSM1-2

CSS1-MM

●

40^a

SC (fixed)

●

CKS-2

CSM1-2

CSS1-SM

●

60 @1310/1550

FC, SC

●

CKS-3

CSM1-3

CSS1-SM

●

70 @1310/1550

FC, SC

●

CKSM-2

CSM1-2

CSS1-MM
CSS1-SM

●

40 @850/1300^a
60 @1310/1550^b

●

Notes:
^a. On 62.5/125 µm multimode fiber.
^b. On 9/125 µm single-mode fiber.

Optical Specifications - CSM1 Power Meter
Model	CSM1-3
Calibrated Wavelengths	850, 1300, 1310, 1490, 1550, 1625 nm
Detector Type	InGaAs
Measurement Range	+6 to -70 dBm
Tone Detect Range	+6 to -50 dBm +6 to -45 dBm for 850 nm
Accuracy	± 0.3 dB
Resolution	0.01 dB
Measurement Units	dB, dBm, µW
Optical Specifications - CSM1 Light Source
Model	CSS1-SM (Single Port)
Wavelength	1310 nm ±20 nm	1550 nm ±20 nm
Spectral Width (max)	5 nm	5 nm
Emitter Type. Safety Class	Laser. Class I FDA 21 CFR 1040.10 & 1040.11, IEC 60825-1: 2007-03
Output Power	≥0.0 dBm into 9/125 fiber
Output Stability	±0.05 dB over 1 hour; ±0.15 dB over 8 hours
Tone Output	2000, 1000, 330, 270 Hz

Tech Specs

Fiber Optic Test Kits - OLTS Template
Fiber Type	Single mode
Wavelength	1310, 1550
Has Memory	No
Tester Type	Test kit
Test Equipment General Attributes
Product Weight	2 LBS
Shipping Weight	5 LBS
